Busch-Jaeger 2710/1 U (1101-0-0919)

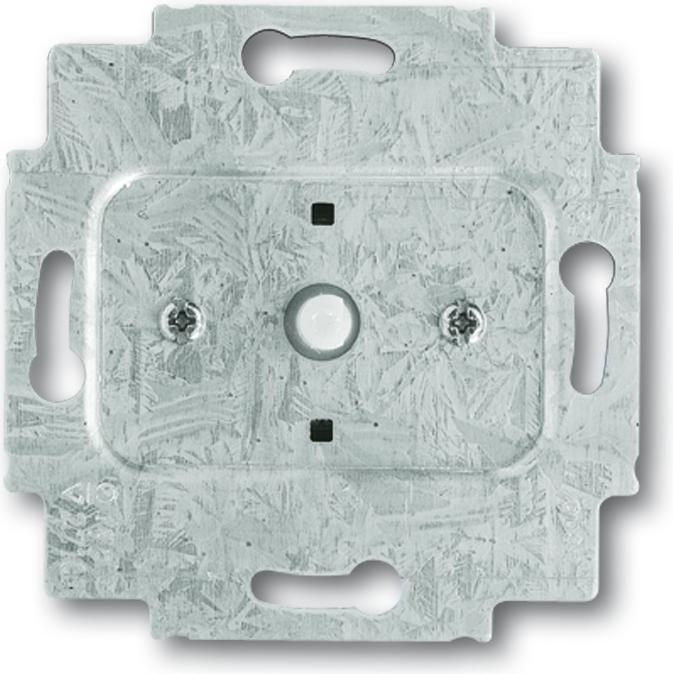

Busch-Jaeger Three-Position Rotary Switch 2710/1 U

Manufacturer: Busch-Jaeger
Description: Three-Position Rotary Switch
Application: without neutral position
Type: 2710/1 U
Composition: Base element
Operation type: Rotary knob
Switching type: other
Mounting type: Flush-mounted
Material: other
Material quality: other
Halogen-free: yes
Surface protection: untreated
Surface finish: matte
Color: other
RAL number (similar): 1013
Transparent: no
Suitable for protection class (IP): IP20
Rated current: 16 A
Nominal voltage: 250 V
Mounting type: Claw/screw fastening
Min. depth of device box: 40 mm

Additional details:
Three-position rotary switch, single-pole application, without neutral position. To be installed only in conjunction with a deep flush-mounted device box (60 mm). Not suitable for surface-mounted housings.
EAN: 4011395008898.
