Bulgin Switch,PB,vandal res,dot green,LED,IP66
Delivered between Fri, 19.12. and Mon, 22.12.
More than 10 pieces in stock at third-party supplier
More than 10 pieces in stock at third-party supplier
Supplied by
Conrad CH
Free shipping starting at 50.–
Product details
Contact arrangement: SP
Mounting type: Front panel mounting

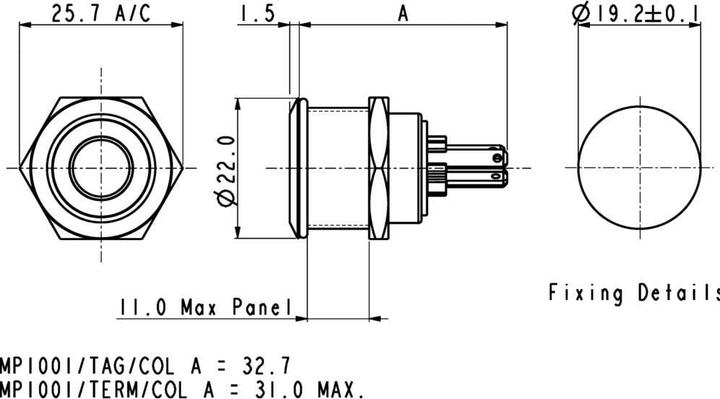

Panel cutout diameter: 19.2 mm
Rated contact current: 50 mA @ 24 V DC
Operating temperature range: -30 to +70°C

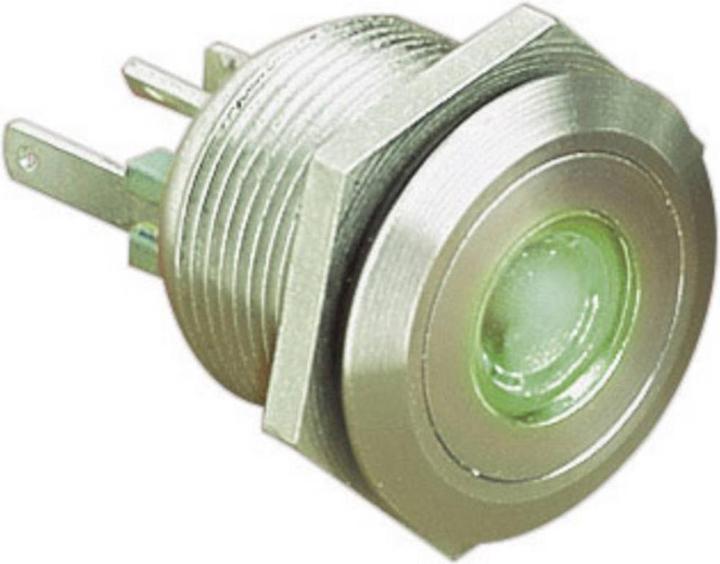

Stainless steel push button, illuminated, vandal resistant. Stainless steel vandal resistant switch housing and pushbutton. Point or ring illumination. Single pole, push release. Bright daylight LEDs. Separate LED terminals. Minimum 750,000 mechanical operations.
Colour | Green |
Switch + button type | Push-button switch |
Width | 19.20 mm |
Diameter | 22 mm |
Item number | 9948132 |
Manufacturer | Bulgin |
Category | Buttons + Switches |
Manufacturer no. | MPI001/28/GN |
Release date | 22.10.2018 |
External links |
Colour | Green |
Exact colour description | Stainless steel |
Material group | Metal |
Material | Stainless steel |
Switch + button type | Push-button switch |
Operating mode | Key |
Number of actuation levels | 1 x |
LED colour | Green |
Number of poles | 1 x |
Nominal voltage | 24 V |
Nominal current | 0.05 A |
Protection type (IP code) | IP66 |
Switch + push-button Additional function | Acoustic feedback |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Items per sales unit | 1 pcs. |
Scope of delivery | illuminated |
Length | 32.70 mm |
Width | 19.20 mm |
Height | 32.70 mm |
Diameter | 22 mm |
Specifications may include unverified machine translations.
30-day right of return
24 Months Warranty (Bring-in)
2 additional offers
