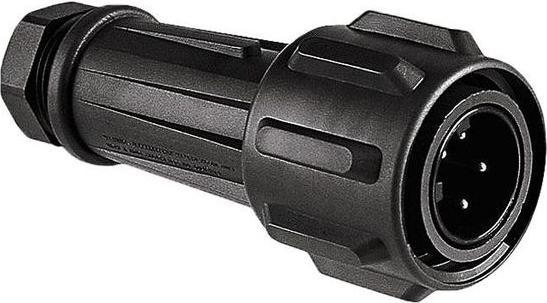

Bulgin Flex circular connector, EXPlora, plug, 10 number of contacts, 15mm, 10A, 250VAC/VDC, IP68

The Flex round connector of type EXPlora is a highly advanced plug designed for demanding applications in electronics. With a robust construction and an IP68 protection rating, this connector offers excellent protection against dust and water, making it ideal for use in harsh environments. The connector features 10 contacts and is rated for a nominal voltage of 250 VAC/VDC as well as a nominal current of 10 A. The operating temperature ranges from -20 °C to 55 °C, allowing for versatile application in various climatic conditions. The cable entry is suitable for cables with a diameter of 13 mm to 15 mm, and installation is done via a cable holder. The contact material is made of brass with a nickel coating, ensuring a reliable electrical connection. Therefore, the Flex round connector is an excellent choice for professional applications that demand high standards of safety and reliability.

• IP68 protection rating for optimal protection against dust and water
• Operating temperature range from -20 °C to 55 °C
• Screw connection for a secure contact connection
• ATEX Zone 2 compliant for use in explosive environments
• Robust housing materials made of polyester with UL 94 V-0 flammability rating.
