Brodit ProClip VW Golf VI 09-12/Golf IV Variant 10-12

Center mount Please read the instructions carefully and view the images before installation.

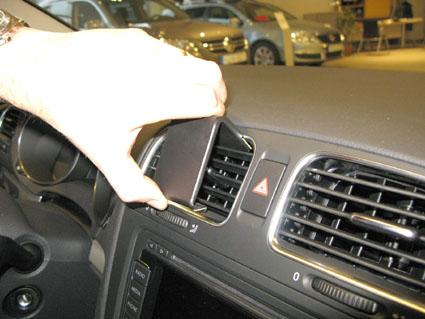

1. Clean the surface where the ProClip will be mounted with the included alcohol pad. Remove the protective film from the adhesive strip on the ProClip. Position the top edge of the ProClip at the top end of the air vent.

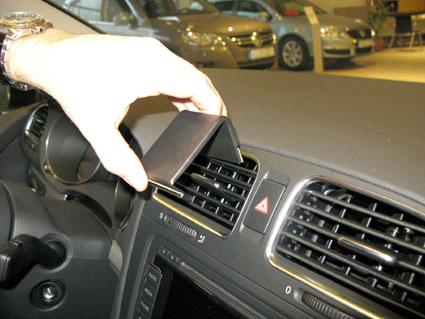

2. Push the bottom end of the ProClip upwards and forwards. Hook the angled edge at the bottom end of the ProClip over the lower edge of the air vent.

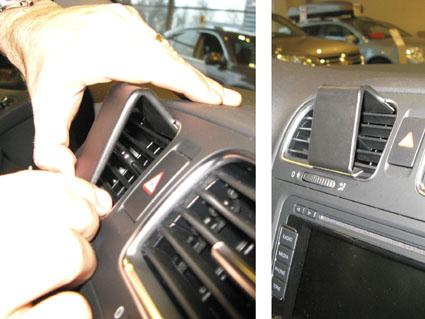

3. Press the angled edge downwards so that the adhesive strip adheres.

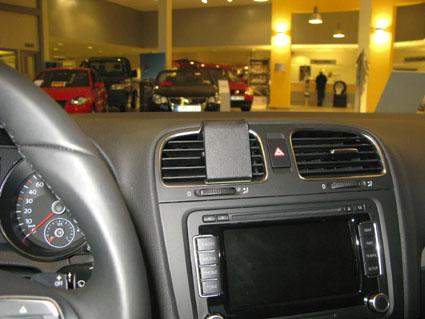

4. ProClip is installed.
