Pulses per revolution = 256
Encoder technology = incremental
Rotation max. = 12000rpm
Output signal type = quadrature
Supply voltage = 4.5 → 5.5 V dc
Operating temperature min.
Encoder technology = incremental
Rotation max. = 12000rpm
Output signal type = quadrature
Supply voltage = 4.5 → 5.5 V dc
Operating temperature min.
= -40°C
Operating temperature max. = +125°C

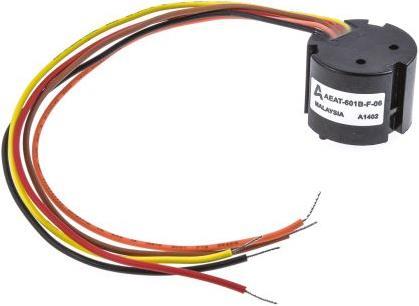

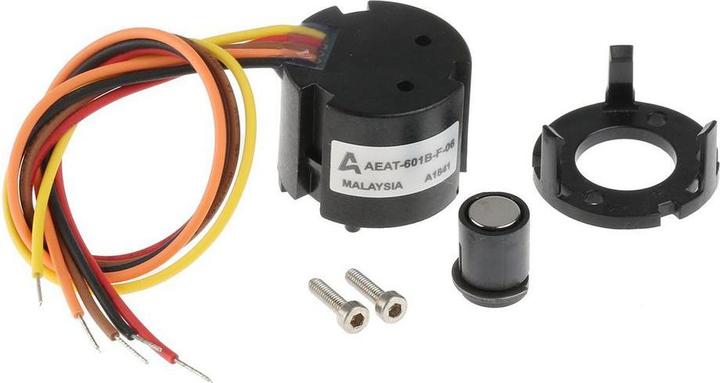

AEAT-601B Magnetic Incremental Encoder. The AEAT-601B is a low-cost rotary quadrature encoder that converts the rotary motion of a shaft into a series of pulses on 3 digital output channels. A suitable microcontroller can calculate the angular position, speed and direction of rotation from the two signals in phase quadrature and one pulse per rotation index channel. The use of magnetic technology for motion control and sensing replaces mechanical contacts and frees this device from mechanical wear. The maximum speed of the encoder is typically limited only by the bearing speed of the application.... TTL 2-channel quadrature output + index Resolution: 256 I/U (CPR) Max. Speed (mechanical): 12000 rpm Max. Speed (electrical): 7000 rpm Operating Temperature Range: -40 to +125 °C Supply Voltage: +4.5 to +5.5 V Shaft Diameter: 6 mm Shaft Length: 8.5 ±1.0 mm Applications: Shaft speed monitoring, closed loop control (PID) of DC motors, robots, automation.
Operating temperature max. = +125°C
AEAT-601B Magnetic Incremental Encoder. The AEAT-601B is a low-cost rotary quadrature encoder that converts the rotary motion of a shaft into a series of pulses on 3 digital output channels. A suitable microcontroller can calculate the angular position, speed and direction of rotation from the two signals in phase quadrature and one pulse per rotation index channel. The use of magnetic technology for motion control and sensing replaces mechanical contacts and frees this device from mechanical wear. The maximum speed of the encoder is typically limited only by the bearing speed of the application.... TTL 2-channel quadrature output + index Resolution: 256 I/U (CPR) Max. Speed (mechanical): 12000 rpm Max. Speed (electrical): 7000 rpm Operating Temperature Range: -40 to +125 °C Supply Voltage: +4.5 to +5.5 V Shaft Diameter: 6 mm Shaft Length: 8.5 ±1.0 mm Applications: Shaft speed monitoring, closed loop control (PID) of DC motors, robots, automation.
Item number | 9730781 |
Manufacturer | |
Category | |
Manufacturer no. | AEAT-601B-F06 |
Release date | 9/24/2018 |
Width | 7 cm |
Height | 2 cm |
Weight | 9 g |
Specifications may include unverified machine translations.
