Bosch Hausgeräte DUL63CC20

Bosch MDA UB Hood DUL63CC20

Manufacturer: Bosch MDA
Designation: UB Hood Series 4, 60 cm, white
Type: DUL63CC20
Energy efficiency class: D
Design: Under-cabinet unit
Main housing color: white
Material of the housing: other
Fan position: Motor in the housing
Airflow type: Recirculation operation
Edge extraction: no
Voltage: 220-240 V
Frequency: 50 Hz
Power consumption: 146 W
Height of the chimney: 150 mm
Total height: 0 mm
Width: 600 mm
Depth: 482 mm
Power settings: 3 levels
Switch type: Push button
After-run setting: no
Max. fan performance in exhaust mode: 350 m³/h
Max. fan performance in recirculation mode: 110 m³/h
Noise emission: 72 dB(A) re 1 pW
Noise reduction: no
Lighting type: LED
Diameter of the exhaust duct: 100-120 mm
Material of the grease filter: Aluminum
Average annual energy consumption: 93.3 kWh
Power consumption in off state: 0 W
Class for fluid dynamic efficiency: E
Lighting efficiency class: E
Class for grease separation efficiency: C

Operating mode and performance:
Noise values according to EN 60704-3 and EN 60704-2-13
Max. normal level in exhaust operation: 72 dB(A) re 1 pW (58 dB(A) re 20 µPa sound pressure)
Max. fan performance 350 m³/h in exhaust operation according to EN 61591
Energy efficiency class: D (on an energy efficiency class scale from A+++ to D)
Average energy consumption: 93.3 kWh/year
Fan efficiency class: E
Grease filter efficiency class: C
Lighting efficiency class: E
Noise min./max. normal level: 56/72 dB
Illuminance: 45 lux
Color temperature: 3000 K

Comfort:

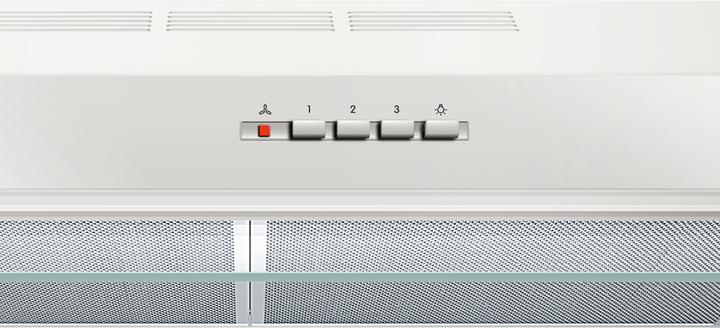

Push button switch
3 power levels
Optional exhaust or recirculation operation

Environment and safety:
Metal grease filter, dishwasher safe
Continuously adjustable air deflector made of glass

Technical information:
For installation under a wall cabinet or on the wall
Exhaust duct dimensions Ø 120 mm, 100 mm
Total power consumption: 146 W
EAN: 4242002968476.
