Block Transformer PCB 3.2VA 2x12V

Secondary rated voltage: 12V AC
Rated power: 3.2VA
Primary rated voltage: 230V AC
Number of outputs: 2
Length: 41mm
Width: 30.8mm
Depth: 35mm

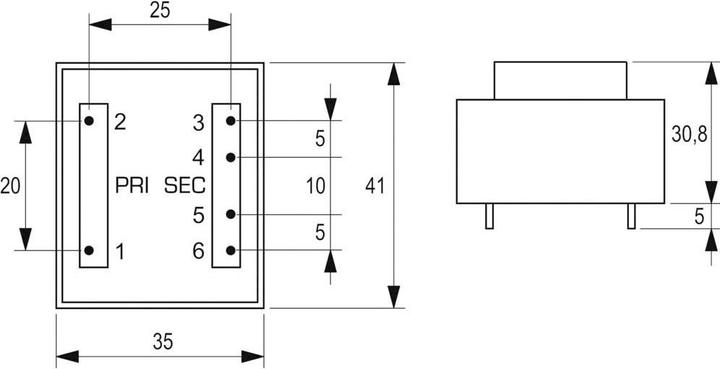

Dimensions: 41 x 30.8 x 35mm
Weight: 173g
Mounting type: Through hole mounting
Maximum temperature: +70°C

EN 61558, ENEC 10, UL recognized component. PCB mount transformers, short circuit proof, VB and PT series. 230V AC, 50 to 60 Hz primary. One or two secondary windings for series or parallel connection (for compliance reasons, 0.35 to 3.2 VA transformers with 2 x 15V and 2 x 18V outputs and all transformers with 2 x 24V outputs should not have the secondary windings connected in series, otherwise, they would not meet VDE 0550 approval). Series VB (0.35-3.2 VA) is inherently short-circuit proof. Series PT (4.5-22 VA) is protected by an internal PTC unit. Compact design with vacuum epoxy resin molded part conforming to class UL94-V0. Two-piece coil of fiberglass-reinforced polyamide. 100% electrical and dielectric strength testing. High efficiency and low heating. Low inter-turn capacitance. Low noise. Extra mounting points for secure PCB mounting (models 4.5 VA and above).
