Block Transformer FL PCB 14VA 2x9V

Secondary rated voltage: 9V AC
Nominal power: 14VA
Primary rated voltage: 115V AC, 230V AC
Number of outputs: 2
Length: 68mm
Width: 24.4mm
Depth: 57mm

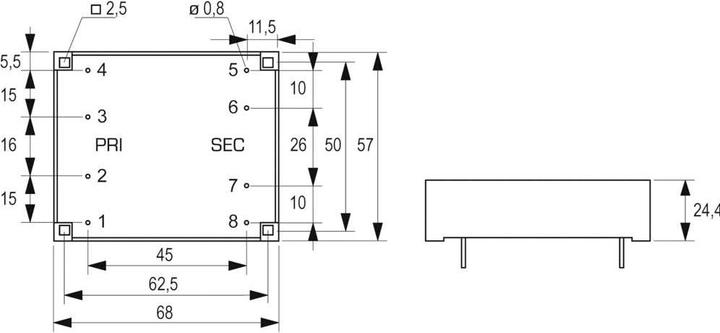

Dimensions: 68 x 24.4 x 57mm
Weight: 315g
Mounting type: Through hole mounting
Maximum temperature: +40°C
Operating frequency minimum: 50Hz
Operating frequency maximum: 60Hz

VD 61 558. Transformers with 2 x 24 V outputs are not approved according to VDE, SEV. PCB mounted, flat, 115 / 230 Vac primary. Two primary windings for 115 Vac, 50 to 60 Hz, for series or parallel connection. Two secondary windings for series or parallel connection. Compact flat design. Vacuum epoxy resin molded part according to class UL94-V0. Two-piece coil made of glass fiber reinforced polyamide. 100% electrical testing and breakdown testing. Low capacitance between turns. Low noise. Additional mounting holes for safe PCB mounting. Standard: EN60742, VDE 0551, IEC 61558.
