Block Toroidal Transformer 60VA 2x115V 2x30V

Delivered between Mon, 19.5. and Tue, 20.5.
Only 3 items in stock at third-party supplier
Supplied by
Conrad CH

Product details

Rated primary voltage: 2 x 115V AC
Rated secondary voltage: 2 x 30V AC
Nominal power: 60VA
Dimensions: 83 (slide) x 38mm
Operating frequency min.: 50Hz
Operating frequency max.: 60Hz
Mounting type: Surface mounting
Connection type: Conductor
Insulation voltage: 4kV AC

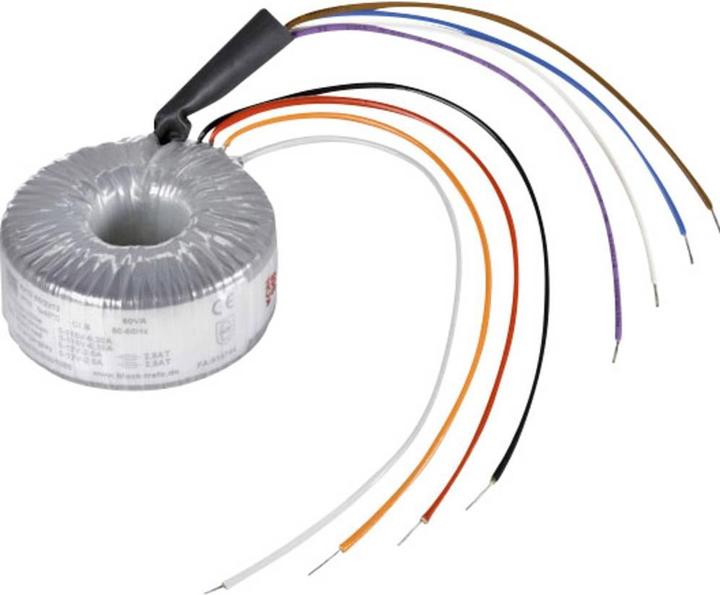

Fastening set. RKD toroidal transformers with dual 115 VAC input. High-quality toroidal transformers in an open design with double 115 VAC, 50/60 Hz primary and secondary windings, which can be connected individually, in series, or parallel as required. Small dimensions and low weight compared to traditional laminated stacked versions. Very low magnetic emission, very low induced noise (hum), and very low iron loss. Supplied with insulation class B mounting kit.

Key specifications

input voltage
230 V
Output voltage
30 V
transformer type
Toroidal transformer
Electric current
1 A
Power
60 W
Item number
9936349

General information

Manufacturer
Block
Category
Transformer
Manufacturer no.
RKD 60/2x30
Release date
22.10.2018

Transformers + Coils Features

transformer type
Toroidal transformer

Power supply

input voltage
230 V
Output voltage
30 V
Electric current
1 A
Power
60 W

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
38 mm
Height
38 mm
Weight
750 g
