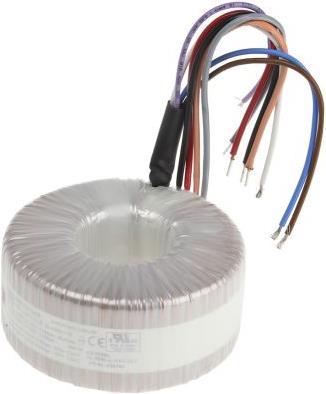

Block Toroidal Transformer 2x24V 300VA

Rated primary voltage: 115V AC, 230V AC
Rated secondary voltage: 2 x 24V AC
Nominal power: 300VA
Number of outputs: 2
Weight: 3kg
Diameter: 125mm
Operating frequency min: 50Hz
Operating frequency max: 60Hz
Connection type: Cable
Maximum temperature: +40°C

Fastening set. RKD toroidal transformers with dual 115 VAC input. High-quality toroidal transformers in open design with double 115 VAC, 50/60 Hz primary and secondary windings, which can be connected individually, in series, or parallel as required. Small dimensions and low weight compared to traditional laminated stacked versions. Very low magnetic emission, very low induced noise (hum), and very low iron loss. Supplied with insulation class B mounting kit.
