Block PCB mount transformer 50VA 1x24 o/p

Secondary nominal voltage: 24V AC
Nominal power: 50VA
Primary nominal voltage: 230V AC
Number of outputs: 1
Length: 94mm
Width: 61mm
Depth: 58.5mm

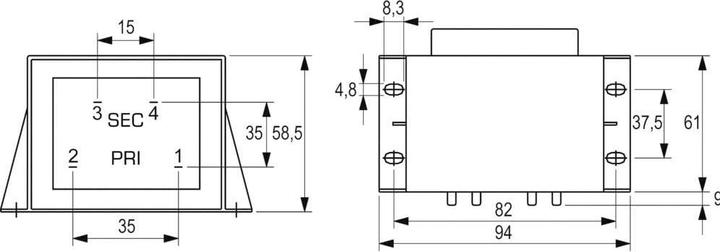

Dimensions: 94 x 61 x 58.5mm
Weight: 990g
Mounting type: Through-hole mounting
Maximum temperature: +40°C
Minimum operating frequency: 50Hz
Maximum operating frequency: 60Hz

This product complies with the standards EN 61 558, IEC 61558, ENEC, and UL approvals. To meet the requirements of VDE 0550 and UL506, the secondary windings of all transformers with two 24V outputs should not be connected in series. It is designed for PCB mounting with a 230V AC primary connection, belongs to the VC/VCM series, and features one or two secondary windings for series or parallel connection. The product is vacuum encapsulated with resin according to UL94-V0, has low capacitance between the windings, operates quietly, and has undergone 100% electrical and dielectric testing. It also includes additional mounting points for secure PCB mounting (25VA and 36VA).
