Block PCB mount transformer 3.2VA 1x6 o/p
6 pieces in stock at supplier
Product details
Secondary rated voltage: 6V AC
Nominal power: 3.2VA
Primary rated voltage: 230V AC
Number of outputs: 1
Length: 41mm
Width: 35mm
Depth: 28.1mm

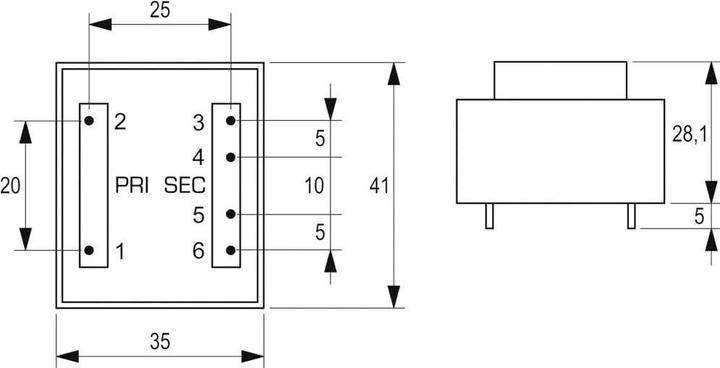

Dimensions: 41 x 35 x 28.1mm
Weight: 150g
Mounting type: Through hole mounting
Maximum temperature: +60°C
Minimum operating frequency: 50Hz
Maximum operating frequency: 60Hz
EN 61 558 IEC 61558 ENEC, UL approval. To comply with VDE 0550, UL506, for all transformers with 2 24V outputs, the secondary windings should not be connected in series. PCB mounted, 230VAC primary, VC/VCM series. One and two secondary windings for series or parallel connection. Molded with resin under vacuum to UL94-V0. Low capacitance between turns. Low noise. 100% electrical and breakdown testing. Extra mounting points for secure PCB mounting (25VA and 36VA).
transformer type | PCB transformer |
input voltage | 230 V |
Output voltage | 6 V |
Electric current | 0.53 A |
Power | 3.20 W |
Item number | 9948567 |
Manufacturer | Block |
Category | Transformer |
Manufacturer no. | VC 3,2/1/6 |
Release date | 22.10.2018 |
Sales rank in Category Transformer | 5 of 1279 |
External links |
transformer type | PCB transformer |
input voltage | 230 V |
Output voltage | 6 V |
Electric current | 0.53 A |
Power | 3.20 W |
CO₂ emissions | 0.7 kg |
Climate contribution | CHF 0.11 |
Length | 41 mm |
Height | 41 mm |
Weight | 150 g |
