Product details
Secondary rated voltage = 12V ac
Nominal power = 2VA
Primary rated voltage = 230V ac
Number of outputs = 1
Length = 32.3mm
Width = 27.3mm
Depth = 26.8mm

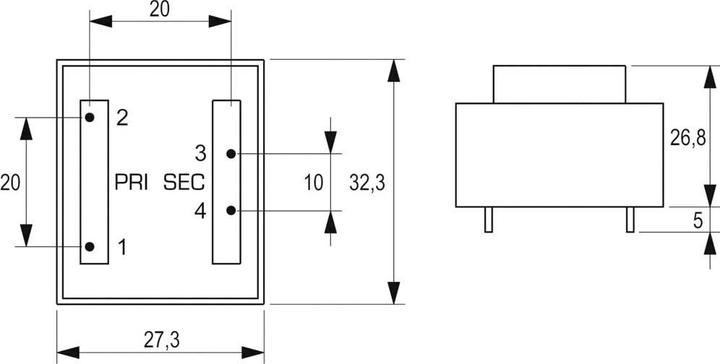

Dimensions = 32.3 x 27.3 x 26.8mm
Weight = 100g
Mounting
Nominal power = 2VA
Primary rated voltage = 230V ac
Number of outputs = 1
Length = 32.3mm
Width = 27.3mm
Depth = 26.8mm
Dimensions = 32.3 x 27.3 x 26.8mm
Weight = 100g
Mounting
type = through hole mounting
Temperature max. = +70°C
Operating frequency min. = 50Hz
Operating frequency max. = 60Hz
EN 61558. ENEC 10; UL approved component. Transformers for PCB mounting, short-circuit proof, VB and PT series. 230 V ac 50 to 60 Hz Primary One or two secondary windings for series or parallel connection (for conformity reasons, the secondary windings of 0.35 to 3.2 VA transformers with 2 x 15 and 2 x 18 V outputs and all transformers with 2 x 24 V outputs should not be connected in series, otherwise they would not comply with VDE 0550 approval) Series VB (0.35-3.2 VA) is inherently short-circuit proof Series PT (4,5-22 VA) is protected by internal PTC unit Compact design Vacuum epoxy moulding conforms to class UL94-V0 Two-piece coil of glass fibre reinforced polyamide 100% electrical and dielectric strength High efficiency and low heating Low inter-turn capacitance Low noise Extra fixing points for secure PCB mounting (models 4.5 VA and above).
Temperature max. = +70°C
Operating frequency min. = 50Hz
Operating frequency max. = 60Hz
EN 61558. ENEC 10; UL approved component. Transformers for PCB mounting, short-circuit proof, VB and PT series. 230 V ac 50 to 60 Hz Primary One or two secondary windings for series or parallel connection (for conformity reasons, the secondary windings of 0.35 to 3.2 VA transformers with 2 x 15 and 2 x 18 V outputs and all transformers with 2 x 24 V outputs should not be connected in series, otherwise they would not comply with VDE 0550 approval) Series VB (0.35-3.2 VA) is inherently short-circuit proof Series PT (4,5-22 VA) is protected by internal PTC unit Compact design Vacuum epoxy moulding conforms to class UL94-V0 Two-piece coil of glass fibre reinforced polyamide 100% electrical and dielectric strength High efficiency and low heating Low inter-turn capacitance Low noise Extra fixing points for secure PCB mounting (models 4.5 VA and above).
| input voltage | 230 V |
| Power | 2 W |
| Item number | 9911311 |
| Manufacturer | |
| Category | |
| Manufacturer no. | VB 2,0/1/12 |
| Release date | 10/16/2018 |
| Maximum order quantity | 19 |
| input voltage | 230 V |
| Power | 2 W |
| Length | 32.30 mm |
| Height | 32.30 mm |
| Weight | 100 g |
| Width | 10 cm |
| Height | 3 cm |
| Weight | 3.40 kg |
