Product details
Secondary rated voltage: 24V AC
Nominal power: 16VA
Primary rated voltage: 230V AC
Number of outputs: 1

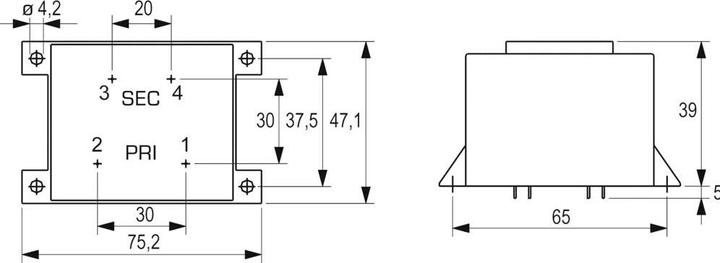

Length: 75.2mm
Width: 47.1mm
Depth: 39mm
Dimensions: 75.2 x 47.1 x 39mm
Weight: 420g
Mounting type: Through hole mounting
Maximum temperature: +40°C
Operating frequency minimum: 50Hz
Operating frequency maximum: 60Hz
EN 61 558 IEC 61558 ENEC, UL approval. To comply with VDE 0550, UL506, for all transformers with 2 24V outputs, the secondary windings should not be connected in series. PCB mounted, 230 VAC primary, VC/VCM series. One and two secondary windings for series or parallel connection. Molded with resin under vacuum to UL94-V0. Low capacitance between turns. Low noise. 100% electrical and breakdown testing. Extra mounting points for secure PCB mounting (25 VA and 36 VA).
input voltage | 230 V |
Output voltage | 24 V |
transformer type | PCB transformer |
Electric current | 0.67 A |
Power | 16 W |
Item number | 9935969 |
Manufacturer | Block |
Category | Transformer |
Manufacturer no. | VCM 16/1/24 |
Release date | 22.10.2018 |
Sales rank in Category Transformer | 4 of 1207 |
External links | |
Minimum order | 2 |
Minimum order | 2 |
transformer type | PCB transformer |
input voltage | 230 V |
Output voltage | 24 V |
Electric current | 0.67 A |
Power | 16 W |
CO₂-Emission | |
Climate contribution |
Length | 75.20 mm |
Height | 75.20 mm |
Weight | 420 g |
