Block PCB mount transformer 1.5VA 1x9 o/p

Secondary rated voltage: 9V AC
Rated power: 1.5VA
Primary rated voltage: 230V AC
Number of outputs: 1

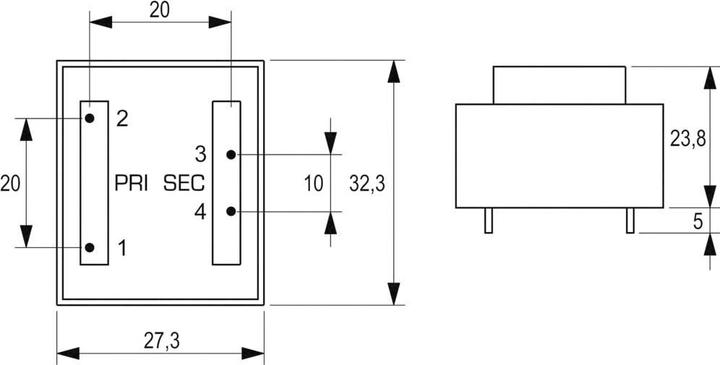

Length: 32.3mm
Width: 27.3mm
Depth: 23.8mm
Dimensions: 32.3 x 27.3 x 23.8mm
Weight: 80g
Mounting type: Through-hole mounting
Maximum temperature: +70°C
Minimum operating frequency: 50Hz
Maximum operating frequency: 60Hz

EN 61558, ENEC 10, UL-recognized component. Transformers for PCB mounting, short-circuit proof, Series VB and PT. 230V AC 50 to 60Hz primary. One or two secondary windings for series or parallel connection (for compliance reasons, transformers with 0.35 to 3.2 VA with 2 x 15 and 2 x 18 V outputs and all transformers with 2 x 24 V outputs should not have their secondary windings connected in series, as they would not meet VDE 0550 approval). Series VB (0.35–3.2 VA) is inherently short-circuit proof. Series PT (4.5–22 VA) is protected by an internal PTC unit. Compact design. Vacuum epoxy resin encapsulation according to UL94-V0 class. Two-part coil made of glass-fiber reinforced polyamide. 100% electrical testing and dielectric testing. High efficiency and low heating. Low capacitance between windings. Low noise interference. Extra mounting points for secure PCB mounting (models from 4.5 VA).
