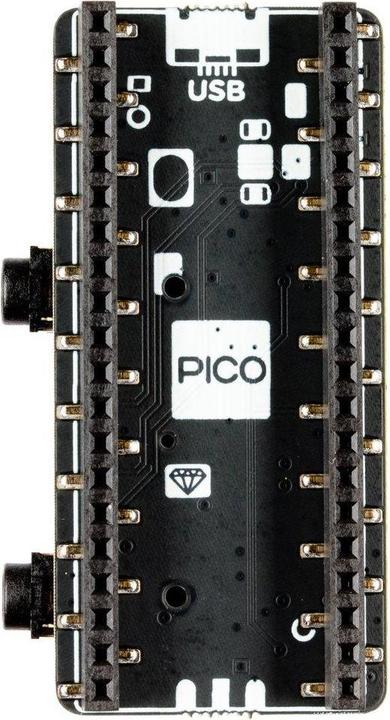

Berrybase Raspberry Pi Pico Audio Pack (line-out and headphones)
Product details

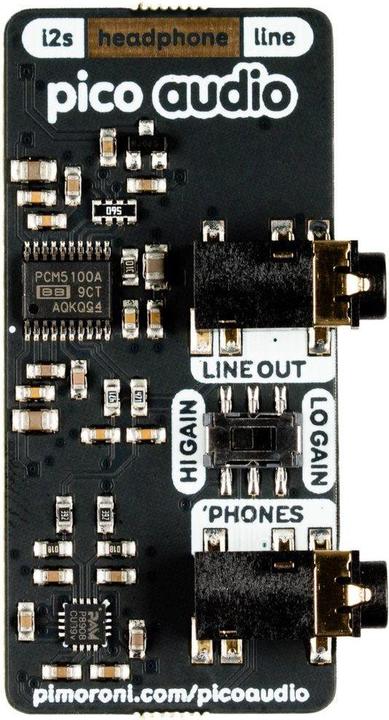

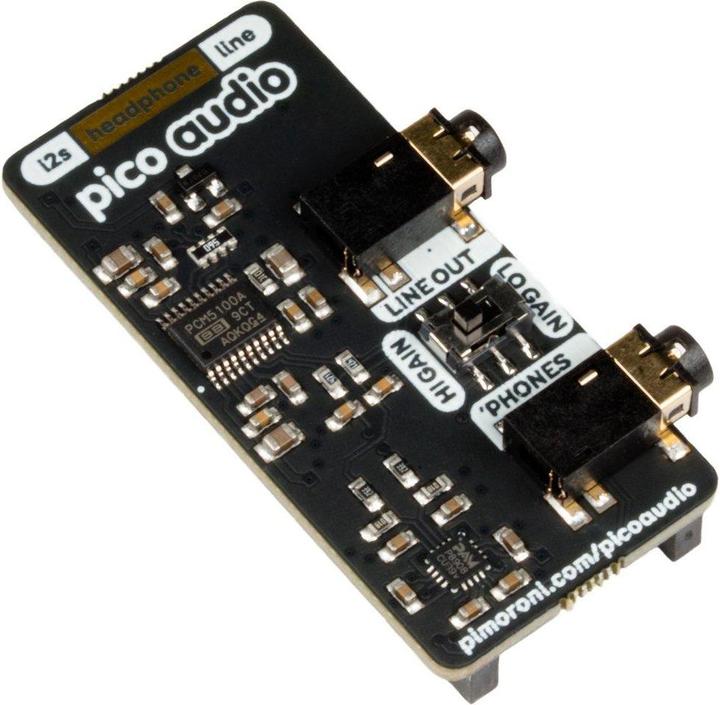

The Raspberry Pi Pico Audio Pack is a high-quality stereo I2S audio add-on board specifically designed for the Raspberry Pi Pico. With this extension, users can output both amplified and unamplified audio signals. The integrated PCM5100A digital-to-analog converter (DAC) allows for the output of up to 32-bit, 384KHz stereo audio through the 3.5mm line-out jack, enabling connection to external amplifiers or active speakers. Additionally, a 3.5mm headphone jack is available for louder playback, delivering amplified stereo audio signals. The Pico Audio Pack opens up numerous creative possibilities, from generating interesting sounds with code to being used as a USB sound card. It is important to note that the Audio Pack is currently only compatible with the C/C++ Pico SDK, while support for Micro Python is in development. Please note that the Raspberry Pi Pico is not included.
- Integrated PCM5100A stereo DAC for high-quality audio output
- Amplified stereo headphone amplifier for loud playback
- 3.5mm stereo line-out jack for external devices
- Adjustable headphone gain switch (low/high)
- Pre-soldered header pins for easy connection to the Pico.
