Bernstein Pull-wire switch

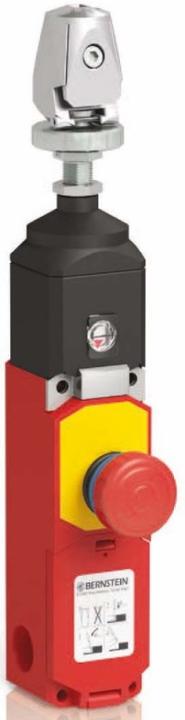

Bernstein Pull Rope Switch SRU2ZNAQF-175-L0-0-0

Manufacturer: Bernstein
Description: Pull rope switch including emergency stop button
Type: SRU2ZNAQF-175-L0-0-0
Number of contacts as normally closed: 2
Number of contacts as normally open: 2
Number of actuation directions: 2
With pull force indicator: no
Max. length of pull cord: 37.5 m
Color: red
Ambient temperature: -25 to 70 °C
Protection class (IP): IP67
Protection class (NEMA): other

Bernstein Pull Rope Switch SRU2ZNAQF-175-L0-0-0: additional details
Pull rope switches according to EN ISO 13850 with plastic housings. With Bernstein's safety pull rope switches, processes can be safely monitored over a larger area, such as on conveyor belts. The emergency stop function can be triggered along the entire length of the rope. The devices feature a mushroom push button with dual function, for both rope release and an optionally integrated emergency stop button. With the optional Quick-Fix quick tensioning device, installation time is drastically reduced. Thanks to the possibility of remote monitoring of rope tension, downtime is a thing of the past. Steel cables with red plastic coating in various lengths, along with corresponding mounting accessories, are available as accessories.
