Bernstein Limit switch

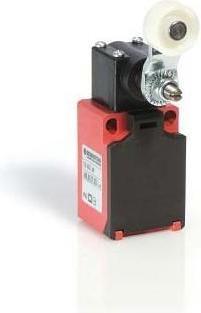

Bernstein Limit Switch TI2-SU1Z AH
Manufacturer: Bernstein
Designation: Limit Switch
Type: TI2-SU1Z AH
Width of the sensor: 30 mm
Height of the sensor: 49 mm
Length of the sensor: 82 mm
Rated operational current Ie at AC-15, 230 V: 3 A
Switching function: Snap action
Electronic output: no
Forced opening: yes
Number of contacts as normally open: 1
Number of contacts as normally closed: 1
Interface design: none
Interface design for safety-related communication: none
Housing design: Rectangular
Material of the housing: Plastic
Coating of the housing: other
Design of the actuating element: Pivot lever
Orientation of the actuating element: other
Design of the electrical connection: Cable entry (metric)
With status indicator: no
Suitable for safety functions: yes
Explosion protection category for gas: none
Explosion protection category for dust: none
Ambient temperature during operation: -30..80 °C
Protection class (IP): IP65

Bernstein Limit Switch TI2-SU1Z AH: additional details
Optimal for safety applications and position detection in confined spaces with a high protection class of IP65. Optionally available with M12 connector.
