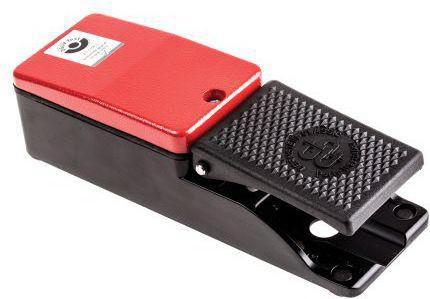

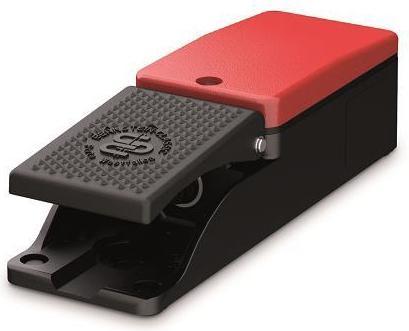

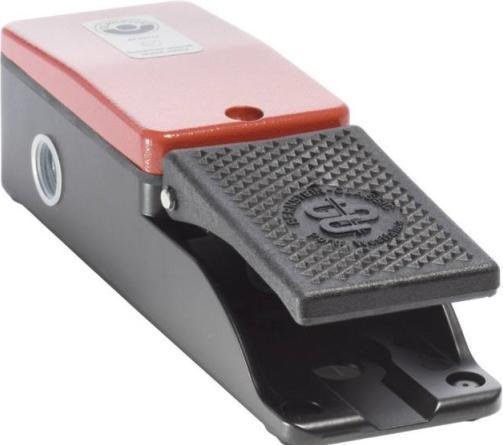

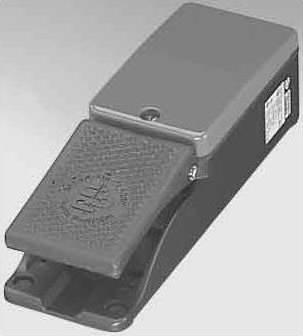

Bernstein FOOT SWITCH F1-U1Z

Bernstein Foot Switch F1-U1Z #616061100005
Manufacturer: Bernstein
Description: Metal Foot Switch
Type: F1-U1Z #616061100005
Command Type: On or Off
With Protective Cover: No
With Locking: No
Material: Metal
With Protective Insulation: No
Color: Red
Number of Switching Positions: 2
Number of Contacts as Normally Open: 1
Number of Contacts as Normally Closed: 1
Switching Function Latching: No
Suitable for Safety Functions: Yes
Rated Operating Current Ie at AC-15, 230 V: 3 A
Protection Class (IP): IP65
Protection Class (NEMA): Indoor use only
Width: 70 mm
Height: 60 mm
Depth: 220 mm

Bernstein Foot Switch F1-U1Z #616061100005: Additional Details
Suitable for high demands in industrial applications. Existing mounting holes allow the foot switches to be screwed to the floor. Each foot switch is equipped with four rubber feet to prevent slipping. The foot lever is made of thermoplastic.
EAN: 4024337004308.
