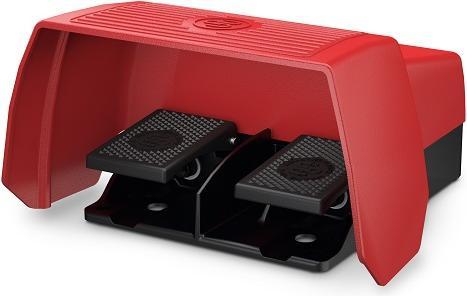

Bernstein Foot switch

Bernstein Foot Switch F2-U2Z #6062720016

Manufacturer: Bernstein
Description: Foot Switch
Type: F2-U2Z #6062720016
Command Type: On or Off
With Protective Cover: Yes
With Locking: No
Material: Metal
With Protective Insulation: No
Color: Red
Number of Switching Positions: 2
Number of Contacts as Normally Open: 4
Number of Contacts as Normally Closed: 4
Number of Contacts as Changeover: 4
Latching Switching Function: No
Suitable for Safety Functions: Yes
Rated Operating Current Ie at AC-15, 230 V: 3 A
Protection Class (IP): IP65
Protection Class (NEMA): Other
Width: 277 mm
Height: 145 mm
Depth: 250 mm

Bernstein Foot Switch F2-U2Z #6062720016: Additional Details
Suitable for high demands in industrial applications. Existing mounting holes provide the option to screw the foot switches to the ground. Each foot switch is equipped with four rubber feet to prevent slipping. In multi-pedal foot switches, barriers prevent the unintentional simultaneous activation of multiple pedals (models without barriers available upon request). The foot levers are made of thermoplastic. An accident protection cover made of aluminum die-cast completely shields the pedal from above and the sides, and the wide base ensures high stability. This prevents accidental activation from falling objects from above or carelessness from the side. Due to its stability, the cover can withstand a falling weight of 20 kg from a height of 1 m.
EAN: 4024337004476.
