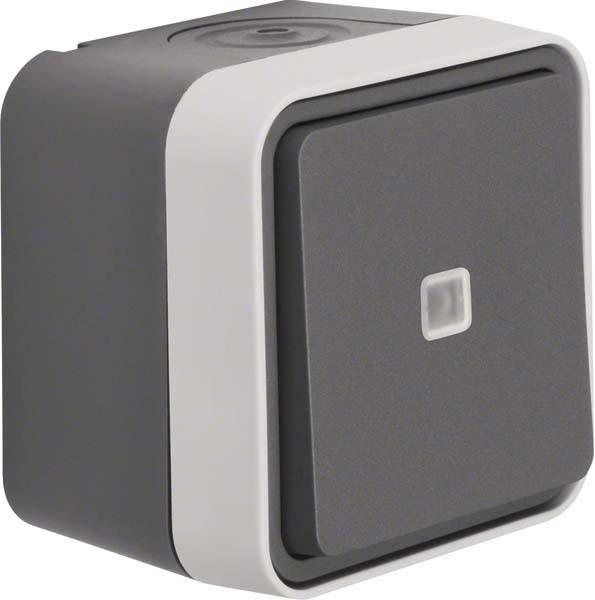

Berker Control changeover switch

Berker control changeover switch 31763505
Manufacturer: Berker
Designation: Control changeover switch
Color: Light grey
Type: 31763505
Type of switching: Changeover switch
Type of operation: Rocker/button
Assembly: Basic element with complete housing
Pushbutton switch: No
Number of operating rockers: 1
Type of mounting: Surface-mounted
Mounting type: Screw mounting
With mounting plate: No
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Antibacterial treatment: No
Surface protection: Lacquered
Finish: Matt
RAL number (similar): 7011
Text field/inscription area: No
Illumination function: Illuminated when switched on
Suitable for protection class (IP): IP55
Rated voltage: 250 V
Rated current: 10 A
Switching current for fluorescent lamps: 10 AX
Feedback contact: No
Connection type: Plug-in terminal
Device width: 76 mm
Device height: 76 mm
Device depth: 61.5 mm
Installation depth: 0 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

Control changeover switch AP W.1 gray. Control changeover switch AP with lens, IP55. For control switching, with red LED unit 230 V for switch/button, with N-terminal, with plug-in terminals, with one entry for 2 wires and one entry for wire or pipe, full-surface seal under the housing base for sealing the back of the housing, easily accessible, funnel-shaped mounting holes in the housings, one Wago 2-wire connection terminal enclosed for wiring, two snap-in locations for Wago 2-wire connection terminals in the housing base, plenty of space for wiring under the bases of the inserts (hollow base), easy mounting of the insert in the housing by snapping it into place, secure fixing of the frame to the housing via bayonet quick-release fastener, stainless steel housing screws. Surface-mounted installation. Material: Plastic, thermoplastic, impact resistant.
