Product details

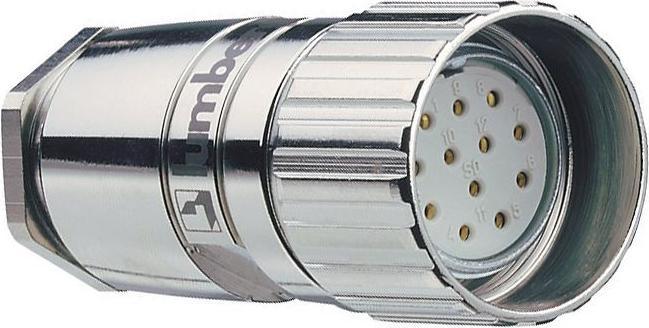

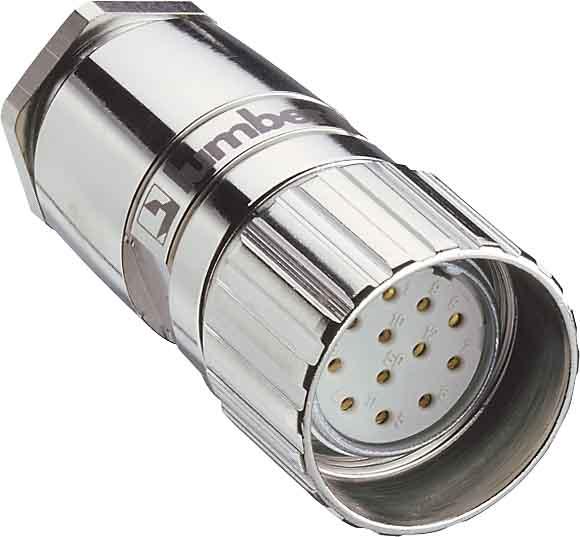

The M23 connector from Belden is a high-quality electronic connection element designed for a variety of applications in electrical engineering. With 12 poles and a rated current of 7.5 A per connection, this connector provides a reliable and stable connection. The housing made of nickel-plated brass ensures high resistance to environmental influences and mechanical stress. The connector is suitable for operating temperatures ranging from -25 °C to 110 °C, making it versatile for use. The IP65 protection rating ensures that the connector is dust-tight and protected against water jets, making it ideal for use in harsh environments. With a compact design and a length of 49 mm, this connector is easy to install and integrate.

  • 12 poles for versatile applications
  • Rated current of 7.5 A per connection
  • Operating temperature range of -25 °C to 110 °C
  • Housing material made of nickel-plated brass
  • IP65 protection rating for high environmental resistance.

Key specifications

Cable + connector type
Plug connectors
Plug type
M23

General information

Item number
36748115
Manufacturer
Belden
Category
Cables + Plugs
Manufacturer no.
RKC 120/13.5
Release date
28.6.2023

Material

Material group
Metal
Material
Brass, Nickel plated

Cable + Connector Features

Cable + connector type
Plug connectors
Plug type
M23
Temperature
-25 - 110 °C
Max. temperature
110 °C
Min. temperature
-25 °C
Connectors Design
Flange bushing
Number of cores
12x

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
84.15 kg
Climate contribution
CHF 2.–

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
2.60 cm
Width
2.60 cm
Height
5.60 cm
