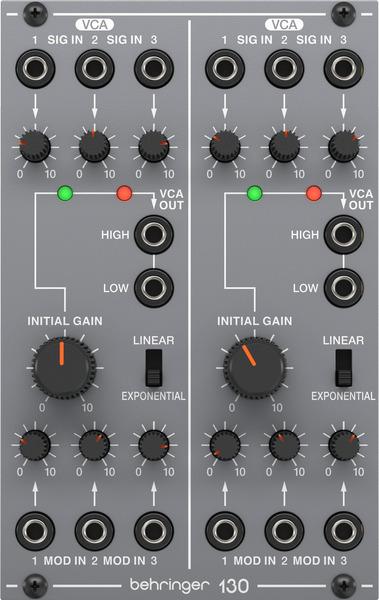

Behringer System 100 130 Dual VCA

Legendary analog dual VCA module for Eurorack. Each VCA in the 130 DUAL VCA is equipped with three signal input jacks with their own gain controls. These inputs can receive audio signals via a 3.5 mm jack. The VCAs in the 130 also feature a manual gain control, a low and a high output, as well as signal and clip indicators to keep an eye on signal levels. The low output can be connected to guitar amplifiers or mixers, while the high output can be connected to line-level inputs in mixers or active speakers. The outputs can be further modified via a switch next to the gain control to be linear or exponential.

• Amazing dual VCA module from the 80s
• Authentic reproduction of the original "System 100M" circuitry
• Each VCA features a manual gain control and 2 audio outputs (low/high) with signal and clip indicators
• The linear/exponential switch per VCA allows for increased flexibility
• 3-channel mixer per VCA enables independent mixing of all input signals
• With 16 controls and switches, you have real-time access to all important parameters
• Eurorack specifications: 16 HP, 30 mA +12 V, 20 mA -12 V.
