Behringer 904B VOLTAGE CONTROLLED HIGH Moduł syntezatora modularnego

Legendary analog high-pass VCF module for Eurorack. The first System 55, 35, and 15 synth modules came out in the early 70s and tended to be extremely expensive. They were mainly all discrete transistor designs, as op-amps at the time were very high cost. The discrete circuitry gave the modules a very distinctive sound and were used by artists like Keith Emerson, Stevie Wonder, Tangerine Dream, and many more, contributing to some of the greatest records we’ve ever heard. Modular synths were a landmark development in electronic music, and today, it’s about to get better.

This is a vintage-sounding authentic reproduction of the circuitry from the Modular 55 & 35 series used by the world’s most famous pop, rock, and jazz musicians for their shows. Now, musicians can build their very own unique synthesizer that can fit in a standard Eurorack case at an affordable price. Mix and match specific modules to create your personal, unique synth to complement the music you play, or go all out and fill a room from floor to ceiling with modules that will fulfill any synth geek’s wildest dream.

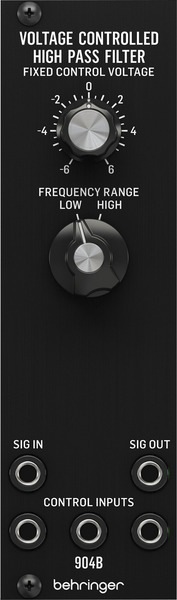

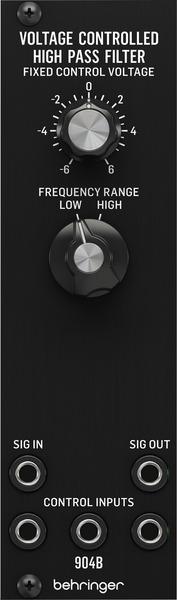

The 904B voltage controlled high pass filter allows you to attenuate low frequencies and accentuate higher ones in a signal. The Fixed Control Voltage knob, also known as a cutoff frequency, determines the frequencies attenuated below a certain point. Switch the frequency range between low (4 Hz to 20 kHz) or high (10 Hz to 50 kHz) to select what frequencies the Fixed Control Voltage affects. You can use the 904B to cut through a mix for some searing lead tones or pair it with the Behringer 904A voltage controlled low pass filter and be prepared to hear some very interesting sounds.

• Analogue -24 dB/oct. high-pass filter
• 2 frequency ranges switchable
• 3 CV inputs for filter frequency
• Current consumption: 55 mA (+12V) / 55 mA (-12V).
