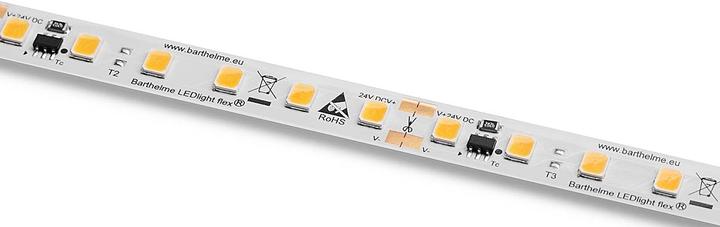

Barthelme LED strip

Barthelme LED-Stripe 5m 50413934T Manufacturer :Barthelme Designation :LED-Stripe 5m 24VDC 4000K IP66 Type :50413934T Energy efficiency class of the light source according to EU regulation 2019/2015 :not relevant Illuminant :LED not replaceable Mounting type :surface-mounted/flush-mounted Design :strip Number of illuminants per metre :120 Lamp wattage per metre :28.8 W Luminous flux per metre :3120 lm Type of voltage :DC Lamp voltage :24 V Beam angle :120 ° Control gear :LED control gear voltage-controlled Suitable for dimmer :yes Replaceable control gear :no Energy efficiency class of fixed lamp :other Protection class (IP) :IP66 Protection class :III Max. System wattage :144 W Light colour :white Colour temperature :4000 K Colour rendering index CRI :90-100 Colour temperature adjustable :no Luminous flux adjustable :no Beam angle adjustable :no Width :10 mm Height/depth :1.4 mm Length :5000 mm Smallest bending radius :20 mm Length of individual sections :50 mm With end piece :no With connection set :no With protective cover :no Self-adhesive :yes Type of wiring :suitable for through-wiring Number of poles :2 Type of connection :solder Barthelme LED strip 5m 50413934T: further details LED strip LEDlight flex 08 8 STANDARD 3000 IP 66-MFC 2.0, 24 V DC, 4000 K, IP 66, LED strip with protection against dew moisture, ideal for applications in environments with high humidity (e.g. bathrooms and protected outdoor areas).e.g. bathroom and protected outdoor areas), good colour rendering: CRI Ra typ. 90, good efficiency: up to 108 lm/W at 4000 K, long light lines possible with only one feed due to Double Layer FCP, only one bin per light colour according to 3-Step-MacAdam for excellent colour fidelity and high reproducibility, current control by IC for constant brightness over the entire light line, with TVS overvoltage protection diode, with high-quality 3M double-sided adhesive tape, roll length: 500 cm (100 segments of 5 cm each), width LED strips: 8 mm, W/cut: 1.44 W, service life: L70 > 60.000 h @ Tc < 80 °C. Please note that cutting and soldering will damage the IP protective layer. To restore full protection, the cutting and soldering points must be resealed. We recommend the use of mibenco liquid rubber (art. no.: 63500050). , EAN: 4021553111810.
