Barth CAN Touch Display DMA-20

Manufacturer Series: DMA-20
Product Area: CAN Touch
Display Type: TFT
Screen Size: 2.4 inches
Screen Resolution: 320 x 240 pixels
Display Color: Color
Number of Connections: 2
Connection Type: CAN Open Source, USB
Processor Type: ARM Cortex
Memory on Mainboard: 196 KB (RAM), 5 MB (Flash)
Backlight: Yes
Supply Voltage: 7 to 32 V DC
Width: 85 mm

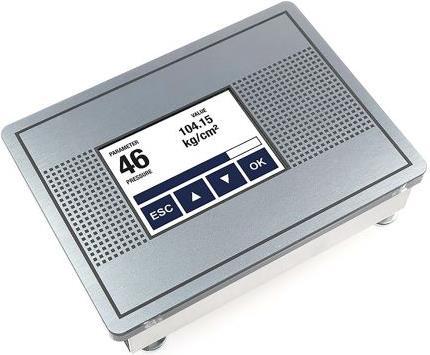

The DMA-20 CAN Mini PLC touch display is a splash-proof CAN display from Barth with a size of 2.4 inches. It allows connection to any Mini PLC that supports a CAN interface. It features a bright TFT display with a resolution of 240 x 320 pixels and integrated touch technology. The design and menu of the display can be selected from various templates with a single CAN message, eliminating the need for display programming. The DMA-20 can be fully integrated into the graphical miCon-L software suite, which supports all Barth Mini PLCs with a CAN interface. With the optional open-source programming, the DMA-20 can be easily customized using the powerful KEIL μVision software suite.

Features and Benefits:

• Universal CAN Display
• Color Touch TFT 2.4 240x320p
• LED Backlight
• Control and template selection via CAN
• No programming required
• Open Source programming option
• User-specific templates via USB
• Compatible with all CAN Mini PLCs
• Rear mounting for Mini PLCs
• Front-side protection class IP65 possible
• Panel installation with invisible screws
• Panel cutout (LxW): 106 x 78 mm
• External dimensions (LxW): 115 x 85 mm
• Operating voltage: 7 to 32 VDC
• Developed and produced in Germany.
