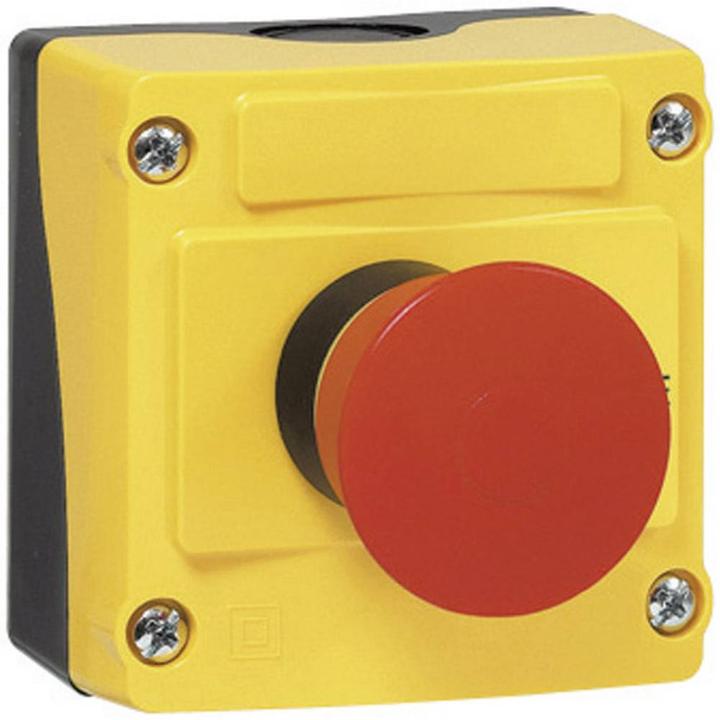

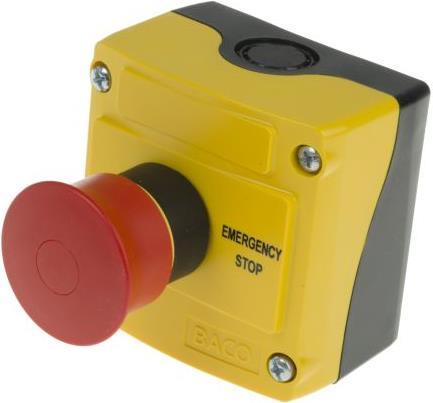

Baco IP66 pull reset EN418 e-stop station

Currently out of stock
Free shipping starting at 50.–

Product details

Mounting type: SMD
Reset type: Pull release
Contact configuration: 2 NC contacts
Protection class: IP66
Head shape: Mushroom
Illuminated: No
Head diameter: 40 mm
Housing material: Plastic

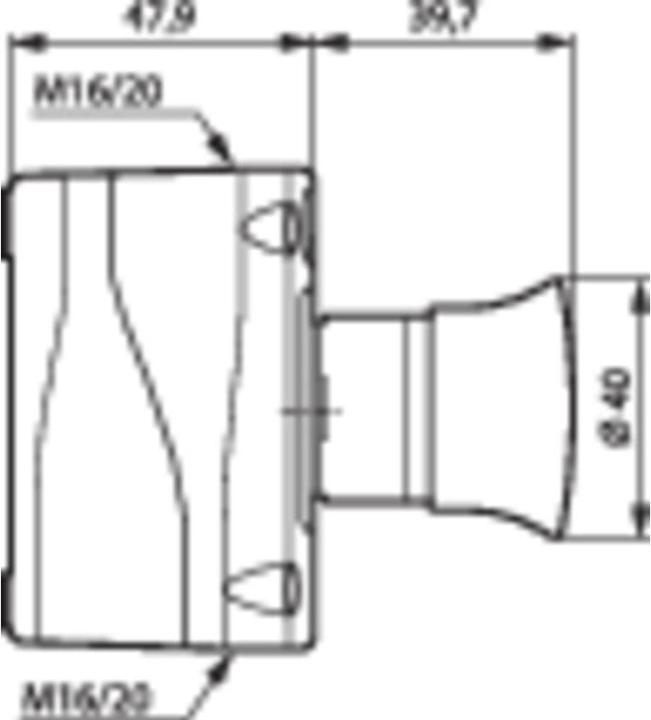

EN418, IEC60947-5-5, IEC60947-5-1. Additional contact blocks: LBX type, e.g., 260-227 and 260-413. LBX series emergency stop switch with pull or key release. Positive latching design with mechanical pointer provides clear indication from front or side. Key design uses RONIS 455A key format (all locks designed for the same key profile). Base dimensions: H x W x D: 74 x 74 x 47.9.

Key specifications

Colour
RedYellow
Switch + button type
Emergency stop
Material group
Plastic
Number of actuation levels
2 x
Width
74 mm
Diameter
40 mm
Item number
9942383

General information

Manufacturer
Baco
Category
Buttons + Switches
Manufacturer no.
LBX15302
Release date
22.10.2018
External links

Colour

Colour
RedYellow
Exact colour description
RedYellow

Material

Material group
Plastic
Material
Plastic

Switch + push-button Features

Switch + button type
Emergency stop
Operating mode
Pull cord
Number of actuation levels
2 x
Mounting type
Screw fastening
LED colour
without LED
Nominal voltage
240 V
Nominal current
2.50 A
Protection type (IP code)
IP66

Voluntary climate contribution

CO₂-Emission
Climate contribution

Smart home features

Smart Home
Not compatible

Scope of delivery

Items per sales unit
1 Piece
Scope of delivery
AC 2.5 A 2 NC contactsEmergency stop switch in housing 240 V

Product dimensions

Length
74 mm
Width
74 mm
Height
47.90 mm
Diameter
40 mm
