Baco Emergency off switch push button 40 mm
More than 10 items in stock at third-party supplier
Product details

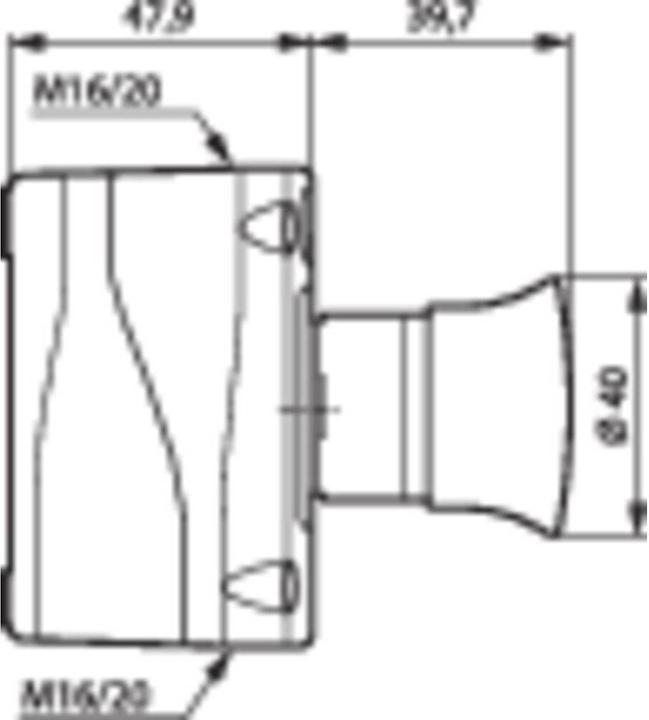

Emergency stop button 40 mmTechnical data: Connection (components): screws - Imprint motif: EMERGENCY STOP - Design (general): 2 NC contacts - Illumination type: without - Release type: pull release - Functions (switch/button): latching - Manufacturer color: Yellow,Red - Content: 1 pc. - Knob diameter: 40 mm - Contact type (LOV): 1 NC contact - Product type: Emergency stop switch - Product dimension, width: 74 mm - Product dimension, height: 47.9 mm - Product dimension, length: 74 mm - Switch/button features: in housing - Switching voltage: 240 V/AC - Switching current (max.): 2.5 A - Protection class: IP66 - Temperature (max.): +70 °C - Temperature (min.): -40 °C - Type (manufacturer type): LBX15301 - Other technical data: Approvals: EN-IEC 60947-1, EN-IEC 60947-5-1, UL508.
Pushbutton + switch type | Button |
Colour | Red, Yellow |
Item number | 14733426 |
Manufacturer | Baco |
Category | Buttons + Switches |
Manufacturer no. | 224219 |
Release date | 4.2.2021 |
Colour | Red, Yellow |
Pushbutton + switch type | Button |
LED colour | without LED |
rank | Push button |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Items per sales unit | 1 Piece |
Scope of delivery | AC 2.5 A 1 NC contact IP66 1 pc., Emergency stop switch in housing 240 V |
