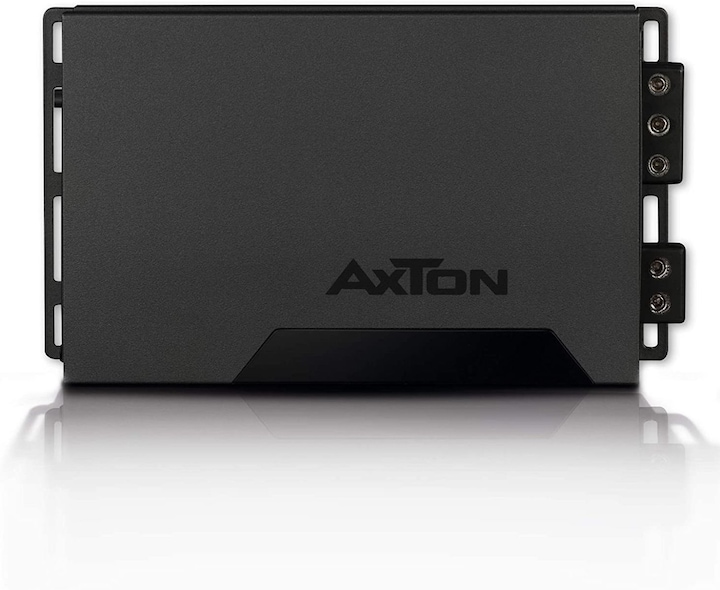

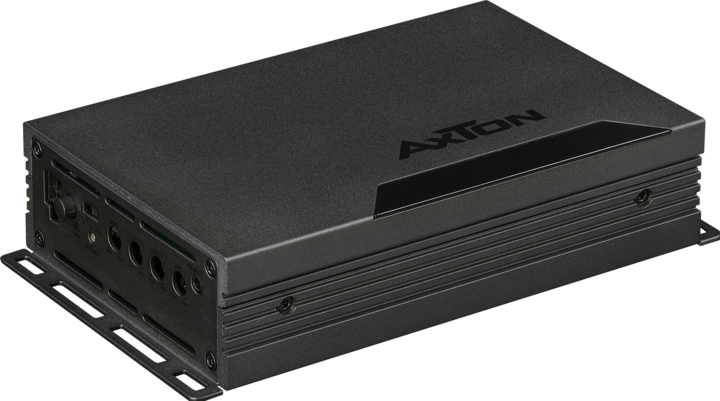

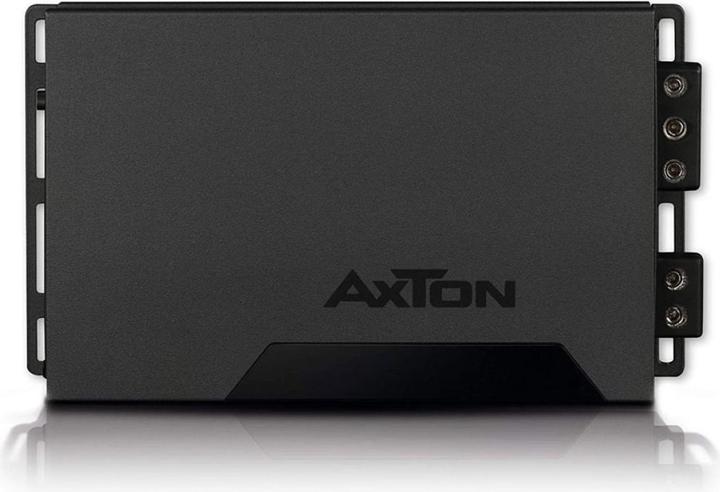

Axton A101 Digital Power Amplifier 1 x 230 Watt

The A-Series of the latest generation seamlessly builds on the exceptional performance of its predecessor series and features various improvements in detail. This series also adheres to AXTON's credo of combining affordability, practicality, and quality with maximum musicality. Among the innovations is the 1 Ohm stability of the A101, which significantly expands the application range of the AXTON Mono. With 600 Watts RMS at 1 Ohm, the A101 not only makes the subwoofers sweat.

The new AXTON Class-D amplifiers are of very high sound and technical quality. Inside the compact housings – measuring only 10.5 cm wide and 4 cm high – the well-thought-out amplifier circuitry ensures a great sound image with astonishing performance: These amps reproduce every piece of music with transparency, gripping dynamics, and, above all, genuine playfulness.

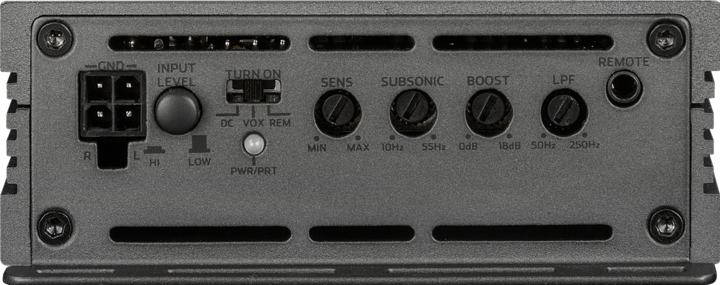

The features of the new amps naturally include active crossovers, high-level inputs with auto turn-on, start/stop compatibility, as well as a bass level remote control for the A101 model.

Ultracompact Class-D amplifier
Aluminum heat sink for optimal heat dissipation
Fully compatible with vehicles featuring start/stop automation
High-Level/Low-Level input
Bass Boost Control at 45 Hz (0 - 18 dB), 1 Ohm stable

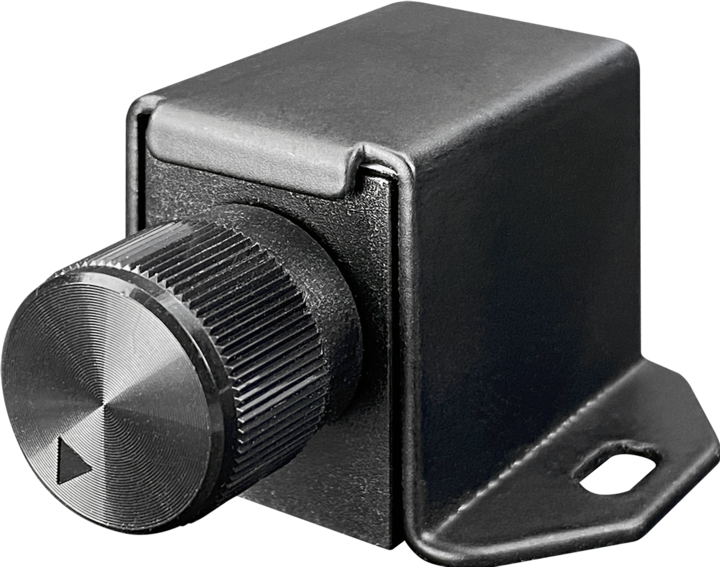

Bass level remote control included
Output power at 4 Ohm 1 x 230 W
Output power at 2 Ohm 1 x 380 W
Output power at 1 Ohm 1 x 600 W
Frequency response 15 - 250 Hz
Integrated electronic crossovers: 12 dB/oct. low-pass filter (50 - 250 Hz), 12 dB/oct. subsonic filter (10 - 55 Hz)
Signal-to-noise ratio > 86 dB
Variable input sensitivity 0.4 - 10 V
Dimensions (W x H x D) 185 x 40 x 105 mm.
