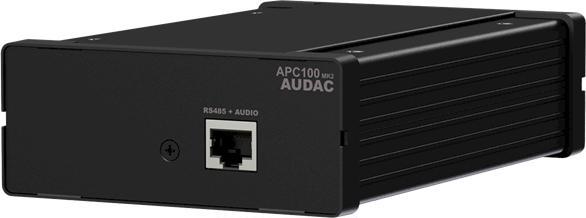

Audac APC100

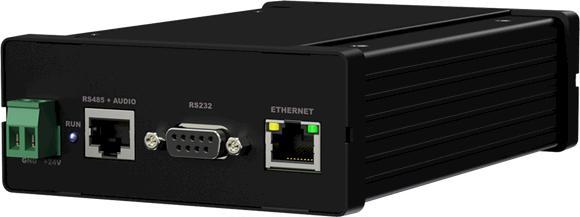

The APC100 is a configuration and control unit that can be used in combination with a wide variety of 'smart' AUDAC devices, ranging from matrix systems and mixers to paging consoles and wall panels. It features different types of communication ports, such as TCP/IP, RS-232, and RS-485. This allows it to communicate with every 'smart' device connected in your installation and establish the missing link between them, making the installer's life easier and saving time. Complex system configurations and updates can be made quickly, as well as backups and duplicates. Specific files such as voice-file messages and screensavers can be uploaded with just the APC100 and a computer. An internal real-time clock allows synchronization for time-controlled events in external devices when synchronized with an internet time server.

The AUDAC system manager software application enables the user to manage and control the APC100's functions along with full configuration functionalities for any 'smart' connected devices through TCP/IP, RS-232, or RS-485. Additionally, it can also be used as a standard gateway, receiving serial communication and converting it into TCP/IP format and vice versa. This allows system integration for devices such as audio sources and power amplifiers without integrated network capabilities to be implemented into your automation system. A variety of optionally available mounting brackets for the AUDAC S-Box product range allow for desk, closet, or 19” equipment rack installation.
