ASUS Z97-Deluxe (Nfc & Wlc)
LGA 1150, Intel Z97, ATXProduct details

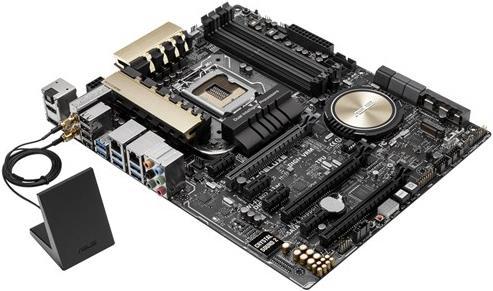

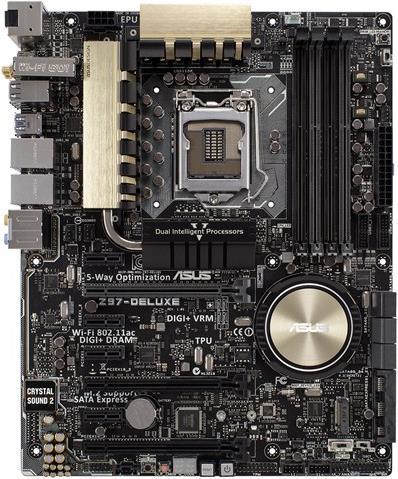

The Z97-Deluxe motherboard is a powerful and versatile platform designed for demanding computer applications. It supports the 4th generation of Intel Core processors, including the Core i7, i5, and i3 models, and offers a variety of connection options for modern peripherals. With an ATX form factor, it is ideal for use in desktop PCs suitable for both gaming and professional applications. The motherboard features multiple internal S-ATA III ports that enable fast data transfer, as well as an RJ45 Gigabit Ethernet port for reliable network connections. Support for up to 32 GB of DDR3 RAM and the ability to overclock up to 3300 MHz provide additional flexibility and performance.
- Support for up to 32 GB of DDR3 RAM with overclocking options up to 3300 MHz
- Integrated Bluetooth and Wi-Fi 802.11a functionality for wireless connections
- A variety of internal S-ATA III ports for fast data storage
- Clear CMOS button for easy system recovery
- Compatible with NVIDIA Quad-SLI for enhanced graphics performance.
Processor family | Core i3 4th Gen, Core i5 4th Gen, Core i7 4th Gen |
Memory type | DDR3-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (6x) |
Wireless transmission | Bluetooth |
Mainboard features | Clear CMOS Button |
Item number | 2578648 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB0HZ1-M0EAY0 |
Release date | 9.5.2014 |
External links |
Form factor | ATX |
Socket | LGA 1150 |
Chipset | Intel Z97 |
Mainboard features | Clear CMOS Button |
Operating system compatibility | Windows 7, Windows 7 Professional, Windows 8, Windows 8.1 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac |
Processor family | Core i3 4th Gen, Core i5 4th Gen, Core i7 4th Gen |
Memory form factor | DIMM |
Number of pins | 240 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 32 GB |
Memory chip | DDR3-1333 (PC3-10666), DDR3-1600 (PC3-12800) |
Max. RAM OC | 3300 MHz |
Supported memory speed | 1600 MHz, 1866 MHz, 2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3000 MHz |
Memory type | DDR3-RAM |
RAM buffer | Unbuffered |

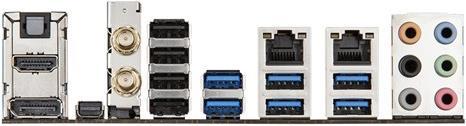

Video connections | HDMI (1x) |
Multi-GPU technology | AMD 3-Way CrossFireX, NVIDIA Quad SLI |
Network connections | RJ45 Gigabit Ethernet (1x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel I211-AT, Intel I218V |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC1150 |
Audio channel | 8.1 Channel |
Audio Connections | Audio In |
Internal connection options | S-ATA III (6x) |
Expansion slot | PCI Express x1 (4x) |
Number of fan connector | 6 |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |

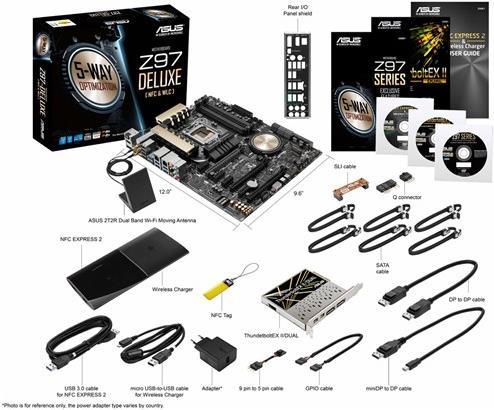

Scope of delivery | S-ATA cable, User manual |
Length | 305 mm |
Width | 244 mm |
Height | 244 mm |
