Product details

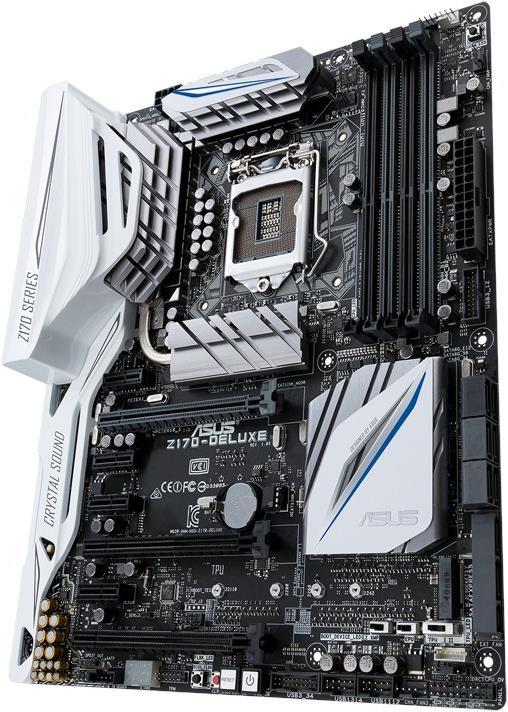

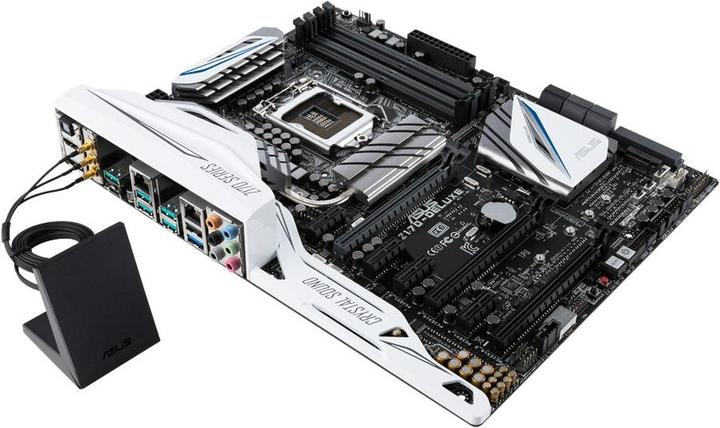

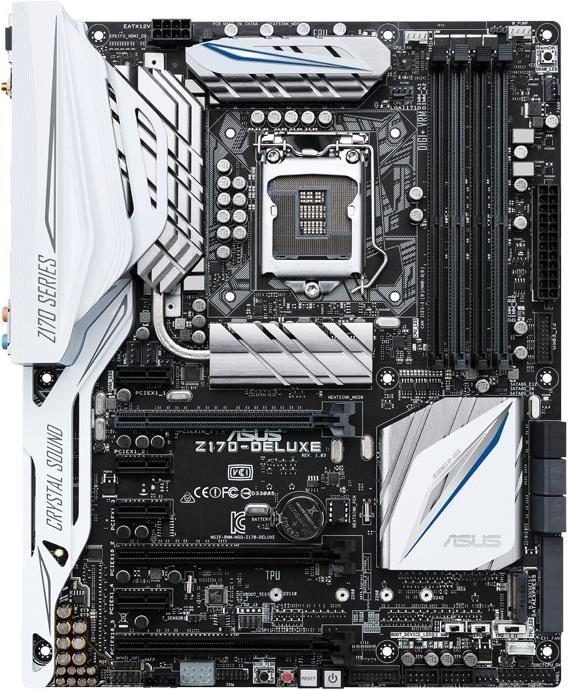

The ASUS Z170-Deluxe motherboard offers outstanding performance and versatile connectivity options, making it an ideal choice for demanding users. With advanced overclocking features and user-friendly 5-way optimization, this motherboard allows for easy system performance adjustments with just one click. The Pro Clock technology ensures increased base clock rates and improved stability, which is particularly beneficial for extreme overclocking. The Z170-Deluxe supports a variety of modern technologies, including ultra-fast USB 3.1 ports and M.2 x4 standards, enabling lightning-fast data transfer. Additionally, it provides comprehensive digital power regulation, fan control, and sound tuning tailored to the individual needs of users. Whether for gaming, multimedia, or office applications, this motherboard guarantees smooth performance and a stable system environment.
- 5-way optimization for easy performance adjustment
- Pro Clock technology for enhanced overclocking

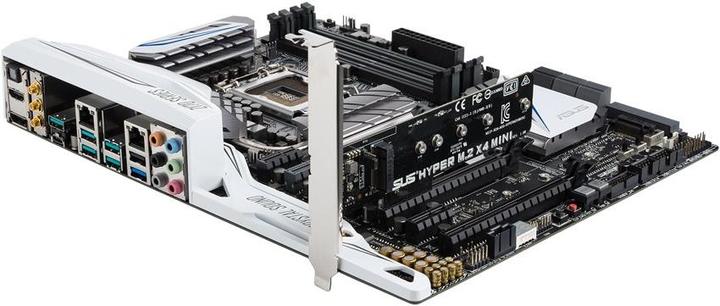

- Ultra-fast USB 3.1 ports and M.2 x4 standard
- Support for multi-GPU technologies like NVIDIA SLI and AMD CrossFireX
- Comprehensive digital power regulation and fan control.
Processor family | Core i5 6th Gen, Core i7 6th Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (6x) |
Wireless transmission | Bluetooth |
Mainboard features | Clear CMOS Button |
Item number | 5342533 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB0LR0-M0EAY0 |
Release date | 5.8.2015 |
External links |
Form factor | ATX |
Socket | LGA 1151 |
Chipset | Intel Z170 |
Mainboard features | Clear CMOS Button |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac |
Processor family | Core i5 6th Gen, Core i7 6th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 64 GB |
Memory chip | DDR4-2133 |
Max. RAM OC | 3733 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 3000 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

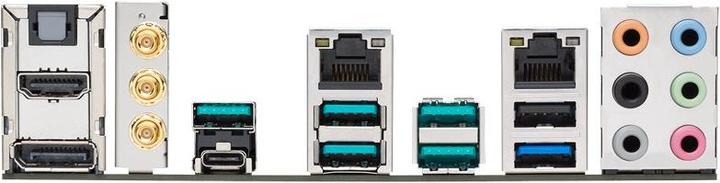

Video connections | HDMI (1x) |
Video connection version | Display port 1.2 |
Multi-GPU technology | AMD 3-Way CrossFireX, AMD CrossfireX, AMD Quad-GPU CrossFireX, NVIDIA Quad SLI, NVIDIA SLI |
Network connections | RJ45 Gigabit Ethernet (1x) |
Ethernet controller brand | Intel |
Ethernet controller | I219V, Intel I211-AT |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC1150 |
Audio channel | 8.1 Channel |
Audio Connections | Audio In |
Internal connection options | S-ATA III (6x) |
Number of fan connector | 6 |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |

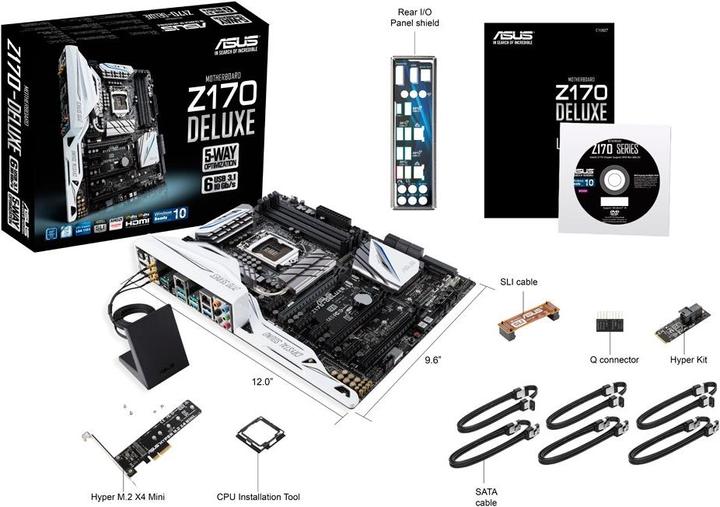

Scope of delivery | M.2 x4 Bracket, S-ATA cable, User manual |
Length | 304 mm |
Width | 244 mm |
Height | 244 mm |
