ASUS X870 MAX GAMING WIFI7

AM5, AMD X870, ATX
2Ratings
BrandMore from ASUS
Delivered between Tue, 23.12. and Wed, 24.12.
More than 10 pieces in stock at third-party supplier
Supplied by
ASUS DE
free shipping

Product details

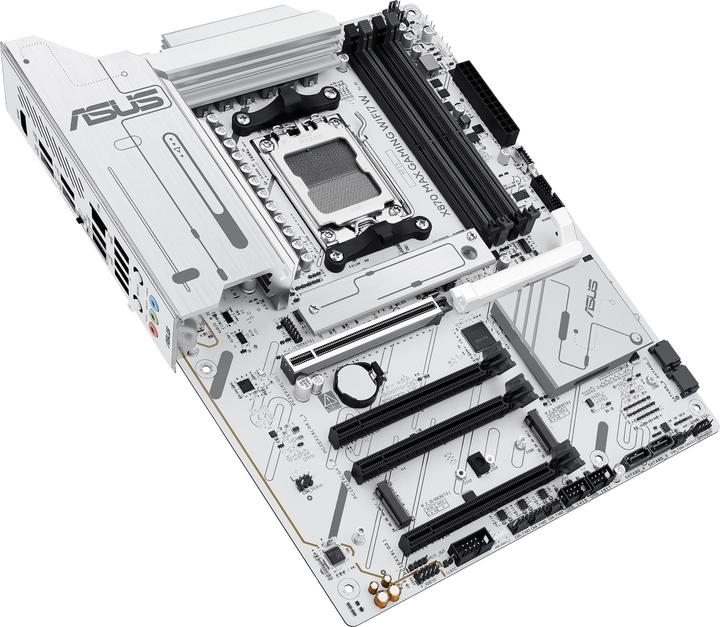

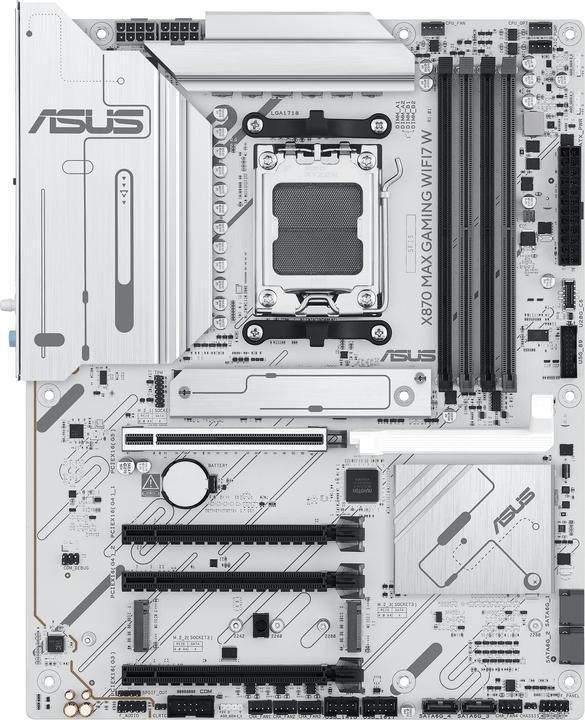

The ASUS MB AMD AM5 X870 MAX GAMING WIFI7 White is a powerful gaming motherboard designed for the latest AMD Ryzen 7000, 8000 and 9000 series processors. With an AM5 socket and the X870 chipset, it offers a future-proof platform for demanding applications, especially in the field of AI computing. The mainboard supports DDR5 RAM and has three M.2 interfaces that enable fast connection of M.2 SSDs. The comprehensive connectivity is complemented by Wi-Fi 7, 2.5 Gb Ethernet and USB4 ports, which ensure a high data transfer rate. In addition, the improved power supply solution with 12+2+1 80A DrMOS power stages ensures stable performance, while the extensive cooling options ensure optimal temperature control. The DIY-friendly design and the ability to personalise with RGB lighting make this motherboard an excellent choice for gamers and PC enthusiasts.

  • Three M.2 interfaces for fast SSDs
  • 12+2+1 80A DrMOS power stages for stable power supply
  • Comprehensive cooling with large VRM heat sinks and hybrid fan headers
  • Future-proof connectivity with Wi-Fi 7 and USB4 ports
  • Personalisation options with addressable RGB Gen 2 headers.

Key specifications

Processor family
Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen
Memory type
DDR5 RAM
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Clear CMOS Button, Front panel audio connector, RGB header
Internal connection options
M.2 (3x), S-ATA III (4x)
Number of memory modules (RAM)
4x
Item number
56511595

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB1LZ0-M0EAY0
Release date
19.3.2025
Sales rank in Category Motherboards
297 of 971

Motherboard properties

Form factor
ATX
Socket
AM5
Chipset
AMD X870
Mainboard features
Clear CMOS Button, Front panel audio connector, RGB header
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax, Wi-Fi 7 / 802.11be

Processor

Processor family
Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen

Memory

Memory form factor
DIMM
Number of pins
288x
Number of memory modules (RAM)
4x
Max. memory (RAM)
256 GB
Memory chip
DDR5 SDRAM
Max. RAM OC
8000 MHz
Supported memory speed
8000 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
HDMI Type A
Video connection version
HDMI 2.1

Network

Network connections
RJ45 2.5 Gigabit Ethernet (1x)
Ethernet controller
Gigabit Ethernet
Max. port speed
2.50 Gbit/s

Audio

Audio channel
7.1 Channel
Audio Connections
Audio In, Audio Out (1x), Microphone connection (1x)

Data storage

RAID configuration
0, 1, 10

Internal interfaces

Internal connection options
M.2 (3x), S-ATA III (4x)
Expansion slot
PCI Express x16 (Gen 3) (1x), PCI Express x16 (Gen 4) (2x), PCI Express x16 (Gen 5) (1x)
PCI express version (max.)
5
Number of fan connector
7

Further connections

USB ports
USB-A, USB-C
Exact USB ports
USB-A 2.0 (4x), USB-A 3.2 Gen 1 (3x), USB-A 3.2 Gen 2 (1x), USB-C 4 (2x)

Power supply

Power connectors
24-pin ATX, 2x 8-pin ATX 12V

Origin

Country of origin
China, Germany, Taiwan

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Cables supplied: SATA, Screws

Product dimensions

Length
244 mm
Width
305 mm
Height
48 mm

Package dimensions

Length
36 cm
Width
27.50 cm
Height
7.40 cm
Weight
1.96 kg
