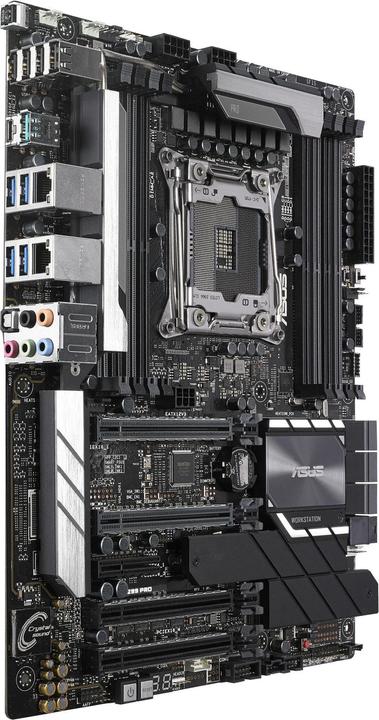

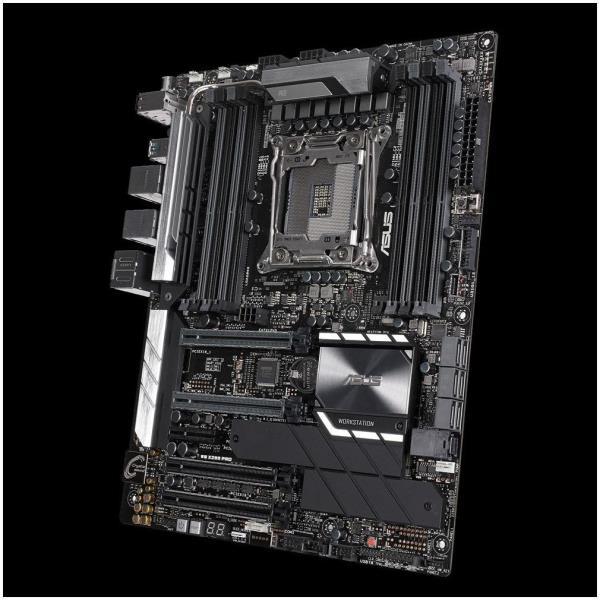

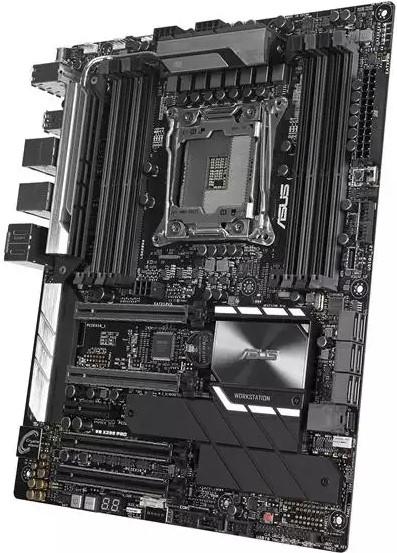

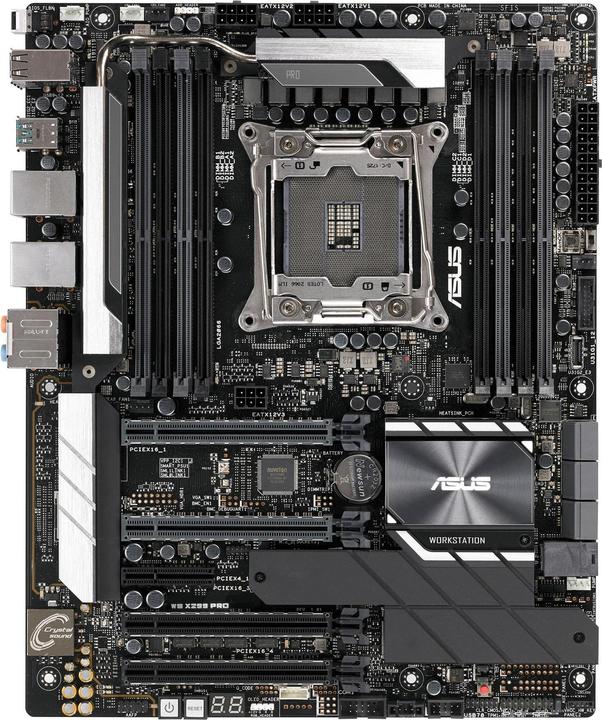

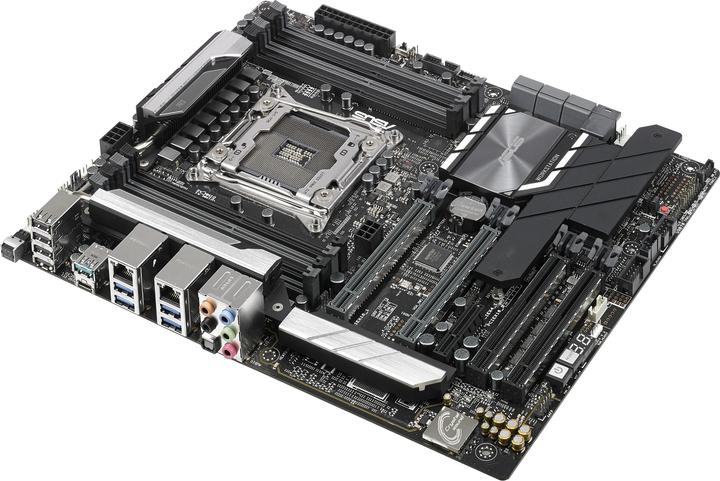

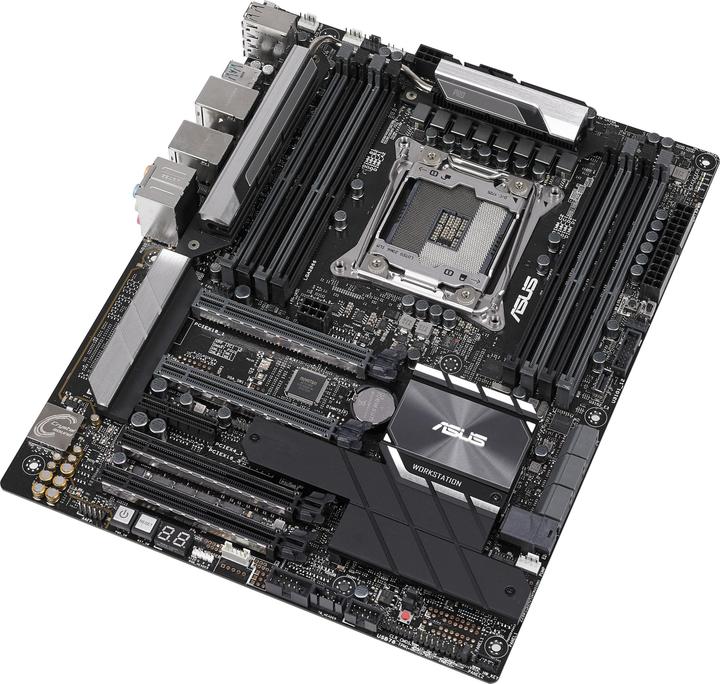

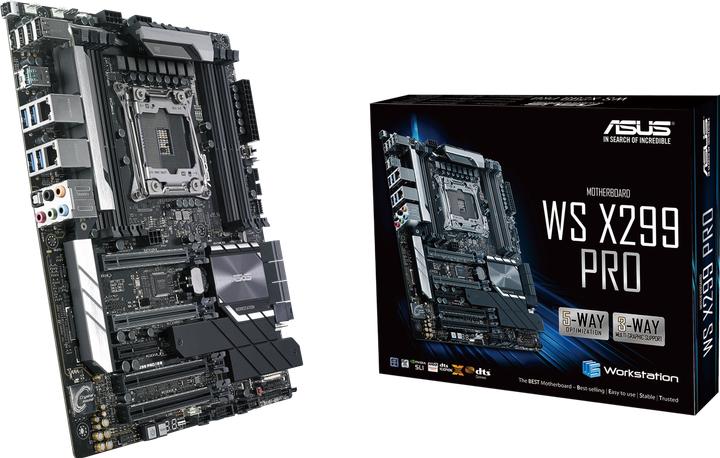

ASUS WS X299 Pro

LGA 2066, Intel X299, ATX
5Ratings
BrandMore from ASUS
Currently out of stock

Product details

The Asus WS X299 Pro is based on the Intel X299 chipset and supports Intel processors for the LGA 2066 socket. The memory of the WS X299 Pro can be upgraded to a maximum of 128 GB DDR4 across eight memory slots, supporting Quad-Channel. Additional features include four PCIe 3.0 x16 slots and one PCIe 3.0 slot. The WS X299 Pro also has two Gigabit LAN ports, six SATA3 connectors, two M.2 connectors, one U.2 connector, four USB 3.0 Type-A ports, one USB 3.1 Type-A port, and one USB 3.1 Type-C port.

Key specifications

Processor family
Core i5 7th Gen X-Series, Core i7 7th Gen X-Series, Core i9
Memory type
DDR4-RAM
Number of memory modules (RAM)
8 x
Internal connection options
S-ATA III (6x)
Mainboard features
Power-On Button, Temperature sensor connections
Item number
8026087

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90SW0090-M0EAY0
Release date
19.3.2018
External links
Manufacturer's site (en)

Motherboard properties

Form factor
ATX
Socket
LGA 2066
Chipset
Intel X299
Mainboard features
Power-On Button, Temperature sensor connections
Operating system compatibility
Windows 10

Processor

Processor family
Core i5 7th Gen X-Series, Core i7 7th Gen X-Series, Core i9

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
8 x
Max. memory (RAM)
128 GB
Memory chip
DDR4-2666
Max. RAM OC
4133 MHz
Supported memory speed
2133 MHz, 2400 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
1 x USB-C
Multi-GPU technology
AMD Quad-GPU CrossFireX, NVIDIA Quad SLI

Network

Network connections
RJ45 (2x)
Ethernet controller brand
Intel
Ethernet controller
I210-AT
Max. port speed
1 Gbit/s

Audio

Chip
Realtec ALC S1220A
Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm (5x), Optical TOSLINK (1x)

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Internal connection options
S-ATA III (6x)
Expansion slot
PCI Express x16 (4x), PCI Express x4 (1x)
PCI express version (max.)
3
Number of fan connector
3

Further connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (4x)

Power supply

Power connectors
24-pin ATX, 4-pin ATX 12V, 8-pin ATX 12V

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
incl. accessories, Manual and G, Product in OVP

Product dimensions

Length
305 mm
Width
244 mm
Height
291 mm
Weight
2290 g

Package dimensions

Length
34 cm
Width
29.50 cm
Height
8.20 cm
Weight
2.28 kg
