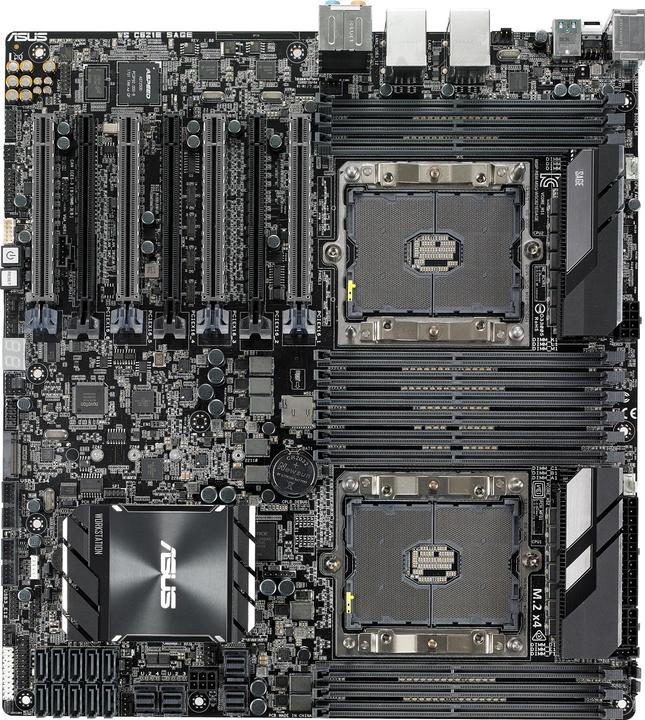

ASUS WS C621E SAGE
Socket P, Intel C621, SSI EEBProduct details
Configurations with up to four graphics cards
The ASUS WS C621E SAGE (BMC) accommodates up to four double-width graphics cards with four true PCIe Gen3 x16 lanes for maximum graphics performance. With support for up to four-way NVIDIA SLI and AMD CrossFireX, or alternatively dual NVIDIA Quadro SLI, the WS C621E SAGE is an excellent choice for content creators, mechanical and architectural engineers, as well as anyone dealing with compute-intensive tasks.
Overclocking both Intel Xeon CPUs breaks all performance records
The ASUS WS C621E SAGE (BMC) pushes performance boundaries by enabling the overclocking of two Xeon CPUs. With its unique BIOS mechanism for boosting CPU performance, the WS C621E SAGE (BMC) is capable of delivering incredible system speed.
Support for up to 12 DDR4 memory modules with ECC error correction
Ensures system reliability.
Mainboard features | Front panel audio connector |
Processor family | A-Series |
Number of memory modules (RAM) | 12x |
Memory type | DDR4-RAM |
Internal connection options | S-ATA III (6x) |
Item number | 10132662 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90SW0021-M0EAY0 |
Release date | 2.5.2018 |
Form factor | SSI EEB |
Socket | Socket P |
Chipset | Intel C621 |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows 10 |
BIOS type | UEFI |
Processor family | A-Series |
Memory form factor | DIMM |
Number of pins | 240x |
Number of memory modules (RAM) | 12x |
Max. memory (RAM) | 1536 GB |
Memory chip | DDR4-2666 |
Max. RAM OC | 2400 MHz |
Supported memory speed | 2933 MHz |
Memory type | DDR4-RAM |
RAM buffer | Registered |
Video connections | D-Sub (1x), DVI-D (1x) |
Multi-GPU technology | AMD 4-Way CrossFireX |
Network connections | RJ45 (1x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel I210-AT |
Max. port speed | 1 Gbit/s |
Chip | Realtek S1220A |
Audio channel | 7.1 Channel |
Audio Connections | Coaxial S/PDIF (1x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | S-ATA III (6x) |
Expansion slot | PCI Express x16 (3x) |
PCI express version (max.) | 3 |
Number of fan connector | 7 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (4x), USB-C 3.2 Gen 1 (1x), USB-C 3.2 Gen 2 (1x) |
Power connectors | 24-pin ATX |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Scope of delivery | HD Audio (8-channel) |
Length | 330 mm |
Width | 305 mm |
Height | 330 mm |
Length | 41 cm |
Width | 37 cm |
Height | 10 cm |
Weight | 3.70 kg |
