Product details
Thermal Armor and M.2 Cooling – Thermal Armor directs cool air towards critical components, while the 40mm fan and M.2 cooler help reduce SSD temperatures by up to 25°C.

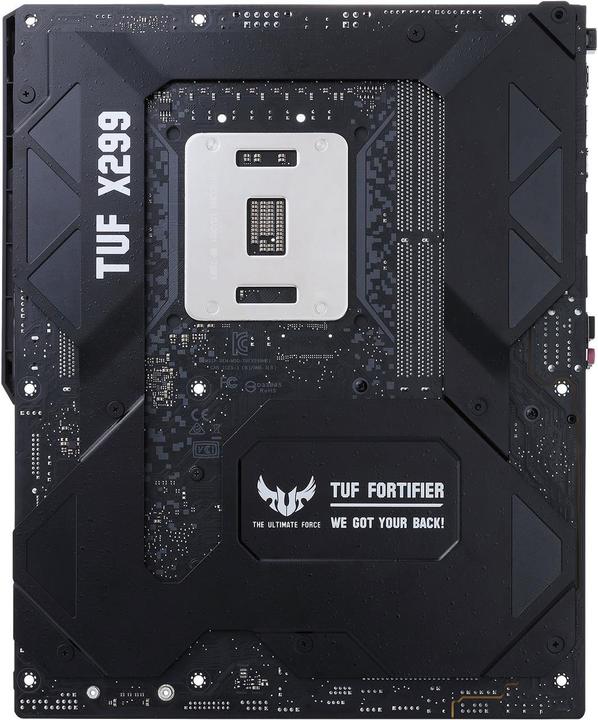

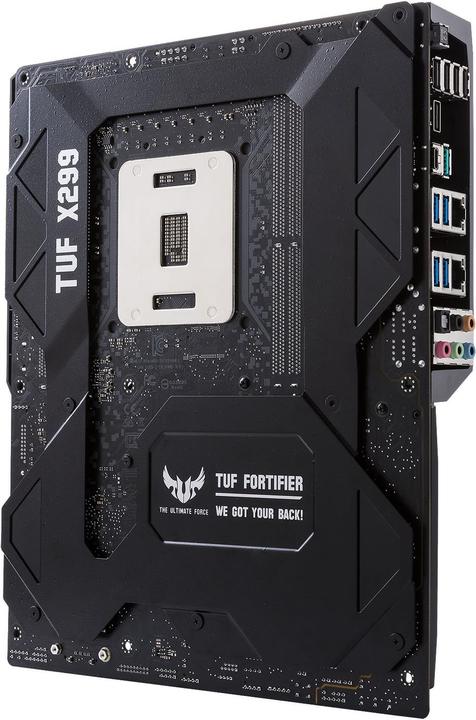

TUF Fortifier, SafeSlot, and VGA Holder – A reinforced backplate provides additional strength to the motherboard, while SafeSlot stabilizes the PCIe slot and the TUF VGA holder supports the weight of heavy graphics cards.
Thermal Radar 3 and TUF Ice – Thermal Radar 3 is designed to keep the system stable during overclocking and offers complete control over system cooling along with numerous temperature monitoring options.
Pro Clock II and T-Topology – Our Pro Clock II technology provides flexibility for optimizing overclocked systems, while T-Topology enhances memory stability at higher frequencies.
TUF Detective 2 – The TUF Detective 2 app connects via Bluetooth to monitor information, detect and diagnose issues, or adjust important system settings without needing to restart the computer.
ASUS Aura Sync: Synchronize RGB lighting effects with an ever-growing selection of Aura Sync-compatible products.
Processor family | Core i5 7th Gen X-Series, Core i7 7th Gen X-Series, Core i9 |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 8 x |
Internal connection options | S-ATA III (8x) |
Mainboard features | Trusted Platform Module |
Item number | 6365872 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB0U00-M0EAY0 |
Release date | 25.6.2017 |
Form factor | ATX |
Socket | LGA 2066 |
Chipset | Intel X299 |
Mainboard features | Trusted Platform Module |
Operating system compatibility | Windows 10, Windows 10 Home |
BIOS type | UEFI AMI |
Processor family | Core i5 7th Gen X-Series, Core i7 7th Gen X-Series, Core i9 |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 8 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4-2666 |
Max. RAM OC | 4133 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Video connections | 1 x USB-C |
Multi-GPU technology | AMD Quad-GPU CrossFireX, NVIDIA Quad SLI |
Network connections | RJ45 Gigabit Ethernet (2x) |
Ethernet controller brand | Intel |
Ethernet controller | i211, I219V |
Max. port speed | 1 Gbit/s |
Chip | Realtec ALC S1220A |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (1x) |
Internal connection options | S-ATA III (8x) |
Expansion slot | PCI Express x16 (3x), PCI Express x4 (2x) |
Number of fan connector | 6 |
Power connectors | 24-pin ATX, 4-pin ATX 12V, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Instruction manual |
Length | 305 mm |
Width | 244 mm |
Height | 244 mm |
Length | 35 cm |
Width | 8 cm |
Height | 28 cm |
Weight | 2.35 kg |
