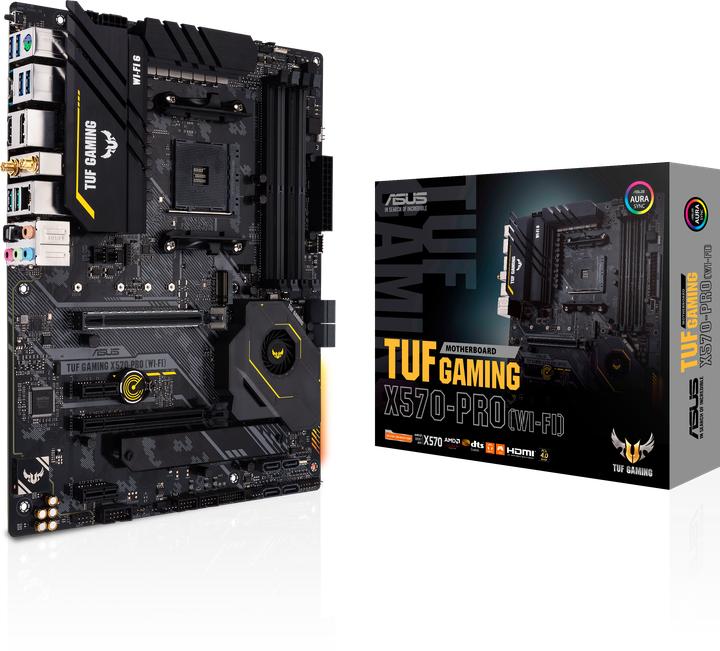

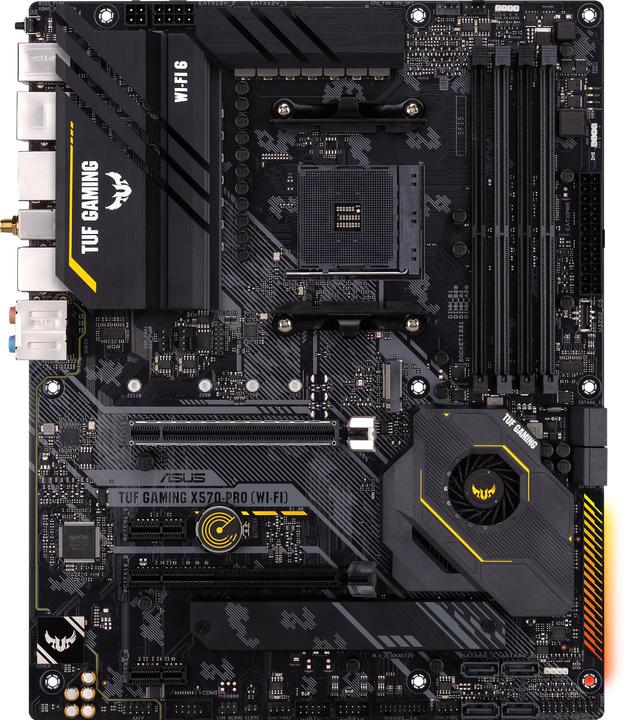

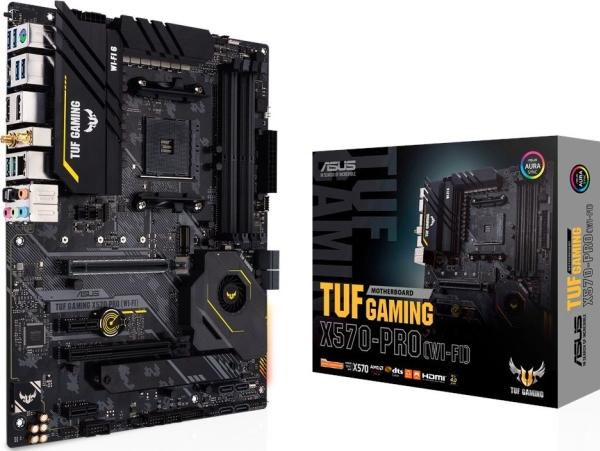

TUF Gaming X570-Pro (Wi-Fi) distills the essential elements of the modern AMD platform and combines them with game-ready features and proven durability. Featuring military-grade components, enhanced power solutions, and comprehensive cooling options, these motherboards deliver solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance - an ASUS collaboration with trusted industry partners that ensures easier builds, great compatibility, and complementary component-to-case aesthetics.
Processor family | Ryzen 1st Gen, Ryzen 2nd Gen, Ryzen 3rd generation, Ryzen 5th Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCI/SATA Combo (2x), S-ATA III (8x) |
Wireless transmission | Wi-Fi |
Item number | 14394211 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB15H0-M0EAY0 |
Release date | 12.5.2021 |
Form factor | ATX |
Socket | AM4 |
Chipset | AMD X570 |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Ryzen 1st Gen, Ryzen 2nd Gen, Ryzen 3rd generation, Ryzen 5th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4-3200 |
Max. RAM OC | 5100 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.2, HDMI 1.4b |
Multi-GPU technology | AMD 2-Way CrossFireX |
Network connections | RJ45 (1x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel, Intel I225-V |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC S1200a |
Audio channel | 7.1 Channel |
Audio Connections | Coaxial S/PDIF (1x) |
Internal connection options | M.2 PCI/SATA Combo (2x), S-ATA III (8x) |
Expansion slot | PCI Express x16 (2x) |
PCI express version (max.) | 4 |

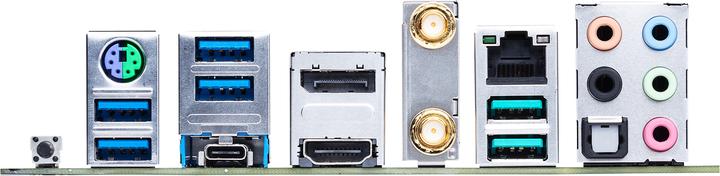

USB ports | USB-A, USB-C |
Exact USB ports | USB-A 3.2 Gen 1 (4x), USB-A 3.2 Gen 2 (1x) |
Power connectors | 24-pin ATX, 4-pin ATX 12V, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 2 x Serial ATA cable |
Length | 244 mm |
Width | 305 mm |
Height | 68 mm |
Weight | 900 g |
Length | 34.30 cm |
Width | 27.30 cm |
Height | 6.90 cm |
Weight | 1.68 kg |
How often does a product of this brand in the «Motherboards» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «Motherboards» category returned?
Source: Digitec Galaxus
The Asus TUF Gaming X570-Pro Wi-Fi is an inexpensive yet capable motherboard. With power delivery capable of handling an overclocked Ryzen 9 5950X, integrated 2.5 GbE and Wi-Fi 6 capabilities, plusand eight SATA ports, the $220 board is a good option to get into the X570 platform.
