ASUS TUF Gaming B760M-BTF D4

LGA 1700, Intel B760, mATX
3Ratings
BrandMore from ASUS
Delivered between Wed, 30.7. and Sat, 2.8.
More than 10 pieces in stock at supplier
free shipping

Product details

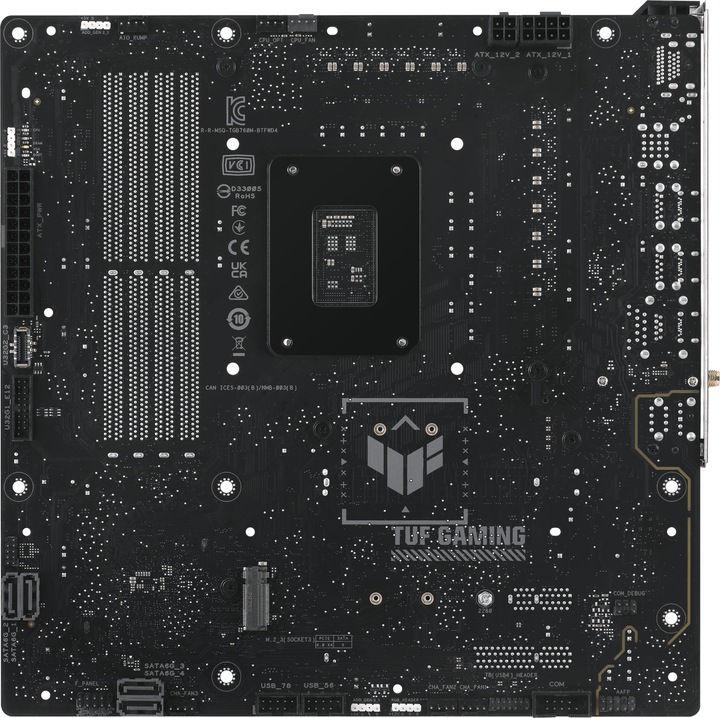

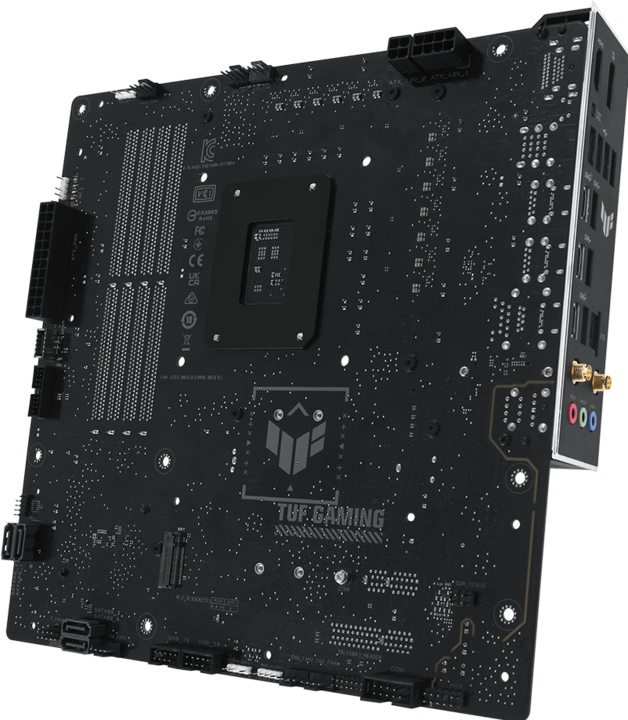

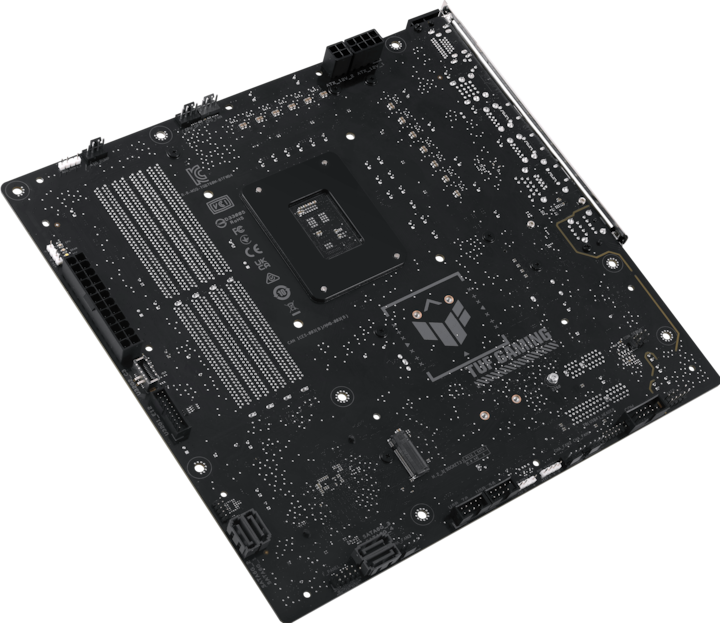

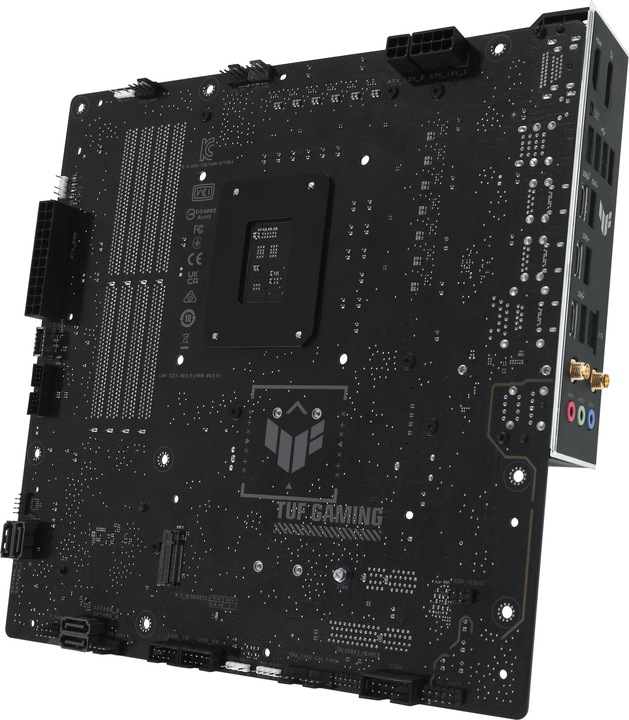

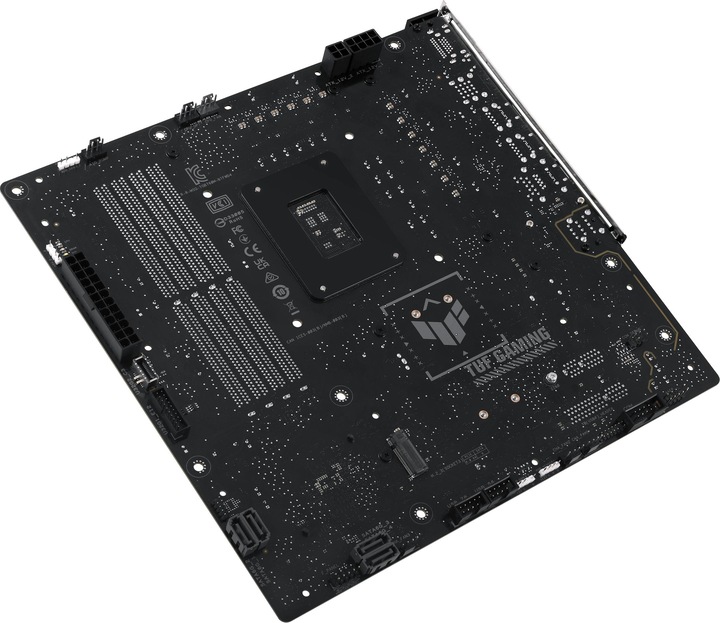

The TUF Gaming B760M-BTF WiFi D4 utilizes all the essential elements of the latest Intel processors and combines them with gaming-ready features and proven durability. "BTF" stands for "Back to the Future" and signifies a new era for all DIY PC gamers. The BTF series conceals all connections on the underside of the motherboard to ensure clean cable management and a minimalist appearance.

Key specifications

Processor family
Celeron, Core i3, Core i5
Memory type
DDR4-RAM
Number of memory modules (RAM)
4 x
Internal connection options
4-pin CPU (1x), M.2 PCI/SATA Combo (3x), S-ATA III (4x)

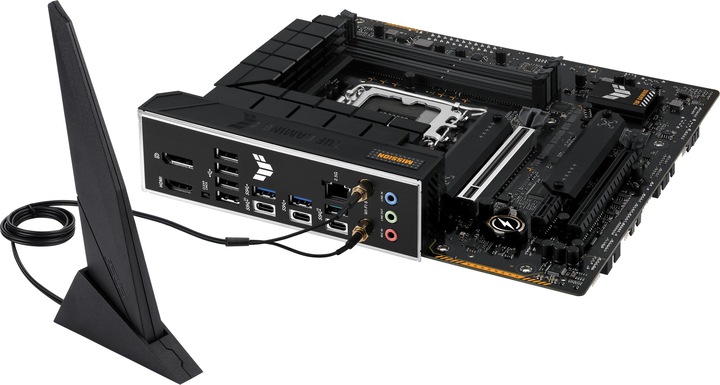

Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
ASUS BTF, Clear CMOS Button, Front panel audio connector
Item number
36196585

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB1E50-M0EAY0
Release date
29.6.2023

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
LGA 1700
Chipset
Intel B760
Mainboard features
ASUS BTF, Clear CMOS Button, Front panel audio connector
Operating system compatibility
Windows 10
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Processor

Processor family
Celeron, Core i3, Core i5

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR4 RAM
Max. RAM OC
5333 MHz
Supported memory speed
2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 4000 MHz, 4400 MHz, 4800 MHz, 5000 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

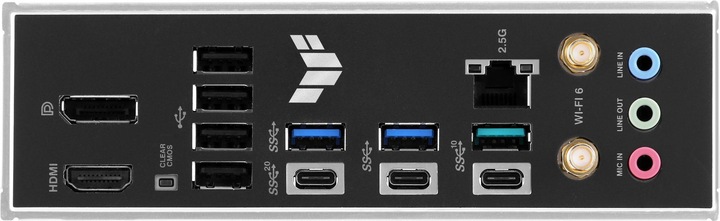

Video connections
DisplayPort (1x), HDMI (1x)
Video connection version
Display port 1.4, HDMI 2.1

Network

Network connections
RJ45 (1x)
Max. port speed
2.50 Gbit/s

Audio

Audio channel
7.1 Channel
Audio Connections
Headphone output (1x), Jack 3.5mm In (3x)

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Internal connection options
4-pin CPU (1x), M.2 PCI/SATA Combo (3x), S-ATA III (4x)
Expansion slot
PCI Express x1 (1x)
PCI express version (max.)
4
Number of fan connector
3

Further connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (4x), USB-A 3.2 Gen 1 (2x)

Power supply

Power connectors
8-pin PCI-E

Origin

Country of origin
China

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery

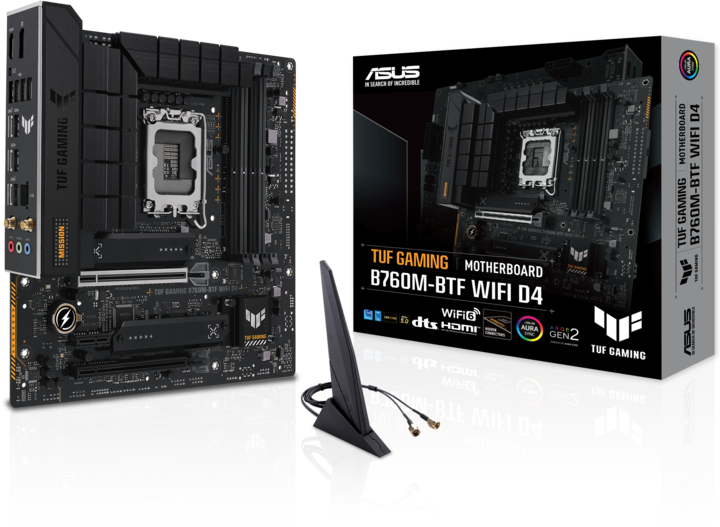

Sata Cables, User manual

Product dimensions

Length
244 mm
Width
244 mm
Height
275 mm
Weight
1670 g

Package dimensions

Length
29 cm
Width
28 cm
Height
7 cm
Weight
840 g

30-day right of return
36 Months Warranty (Bring-in)
