ASUS TUF GAMING A520M-PLUS WIFI
AM4, AMD A520, mATXMore than 10 items in stock at third-party supplier
Product details

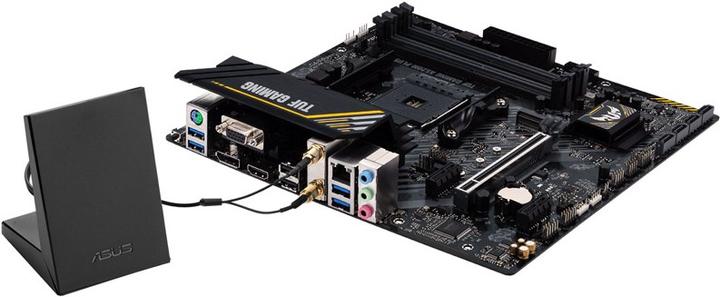

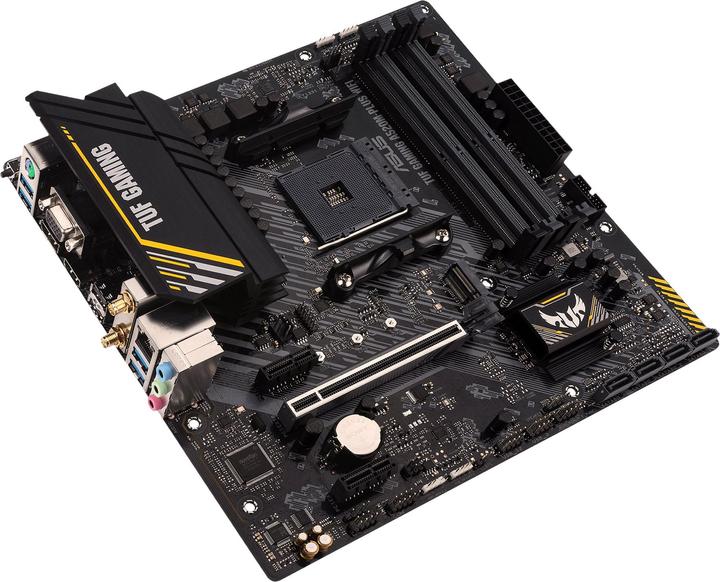

The ASUS TUF Gaming A520M-Plus WiFi is a Micro-ATX motherboard for AMD processors with the AM4 socket and the A520 chipset. It provides a solid foundation for a gaming PC and is equipped with a Wi-Fi module to support wireless networks.
The motherboard supports DDR4 memory with speeds of up to 4600 MHz and has two DIMM slots that support a maximum memory capacity of 64 GB.
The TUF Gaming A520M-Plus WiFi offers a variety of connectivity options, including a PCIe 3.0 x16 slot, a PCIe 3.0 x1 slot, and an M.2 slot for a fast SSD.
Processor family | AMD 3000 Series, AMD 5000 Series |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | USB 2.0 Header (2x) |
Wireless transmission | Wi-Fi |
Mainboard features | Clear CMOS Button |
Item number | 15727760 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB17F0-M0EAY0 |
Release date | 9.3.2023 |
Sales rank in Category Motherboards | 193 of 968 |
Form factor | Micro ATX (mATX) |
Socket | AM4 |
Chipset | AMD A520 |
Mainboard features | Clear CMOS Button |
Operating system compatibility | Windows 10, Windows 11 Home, Windows 11 Pro |
BIOS type | UEFI AMI |
Wireless transmission | Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac |
Processor family | AMD 3000 Series, AMD 5000 Series |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4 RAM |
Max. RAM OC | 3600 MHz |
Supported memory speed | 2800 MHz, 3000 MHz, 4000 MHz, 4400 MHz, 4800 MHz |
Memory type | DDR4-RAM |
RAM buffer | ECC Registered |

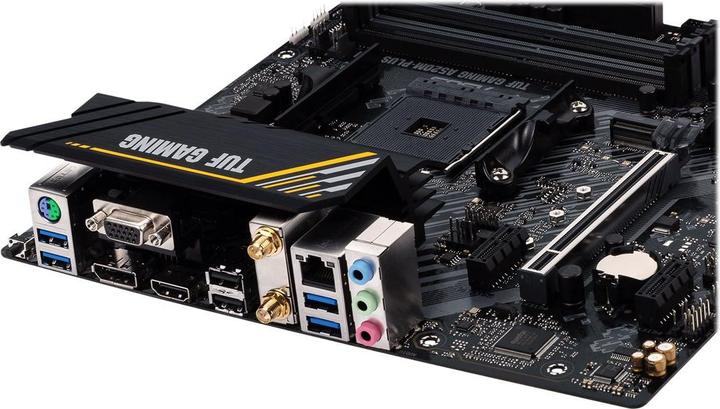

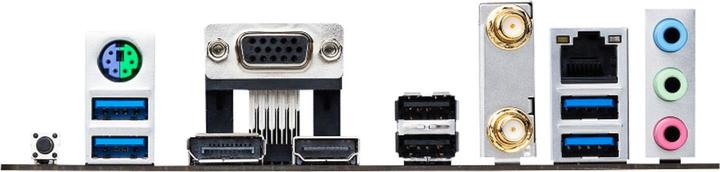

Video connections | D-Sub (1x), DisplayPort (1x), HDMI (1x) |
Video connection version | HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8821CE |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC887, Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm Line Out (3x) |
RAID configuration | 0, 1, 10 |
Internal connection options | USB 2.0 Header (2x) |
Expansion slot | PCI Express x1 (Gen 3) (2x), PCI Express x16 (Gen 3) (1x) |
PCI express version (max.) | 3 |
Number of fan connector | 2 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.2 Gen 1 (4x) |
Power connectors | 20+8 pin ATX, 24-pin EATX |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |

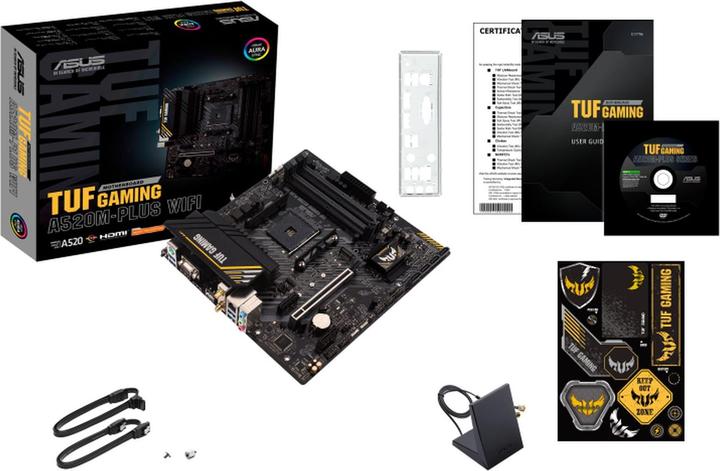

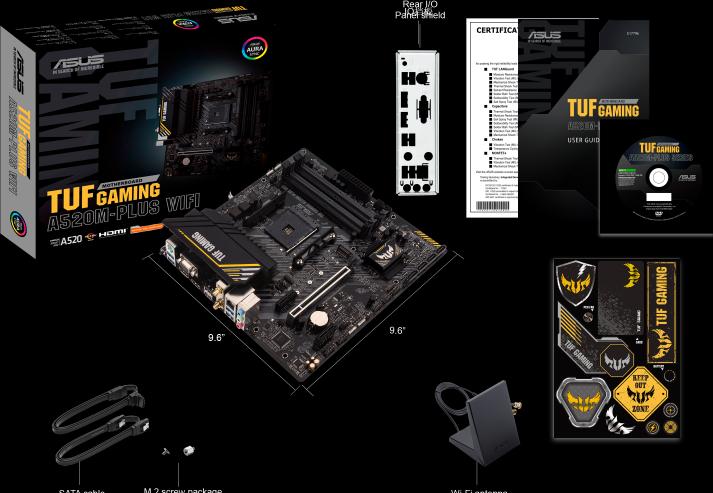

Scope of delivery | Cables supplied: SATA |
Length | 244 mm |
Width | 244 mm |
Height | 67 mm |
Weight | 900 g |
Length | 27.60 cm |
Width | 27.60 cm |
Height | 7 cm |
Weight | 1.30 kg |
