Product details

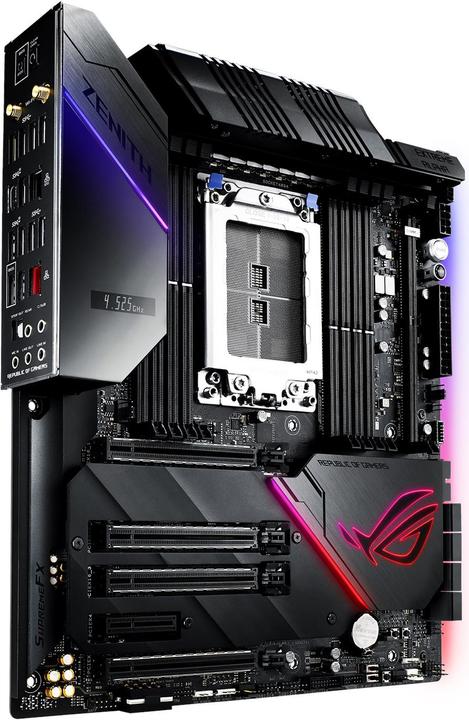

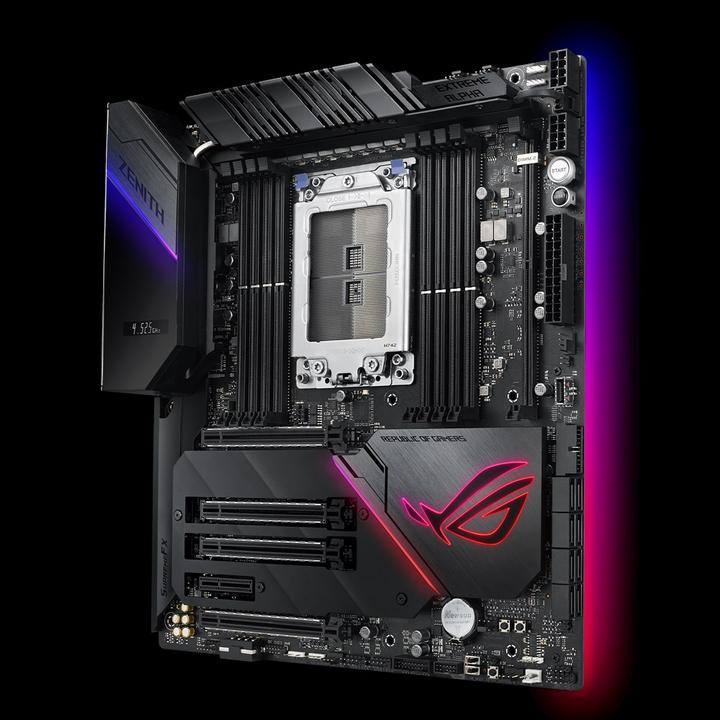

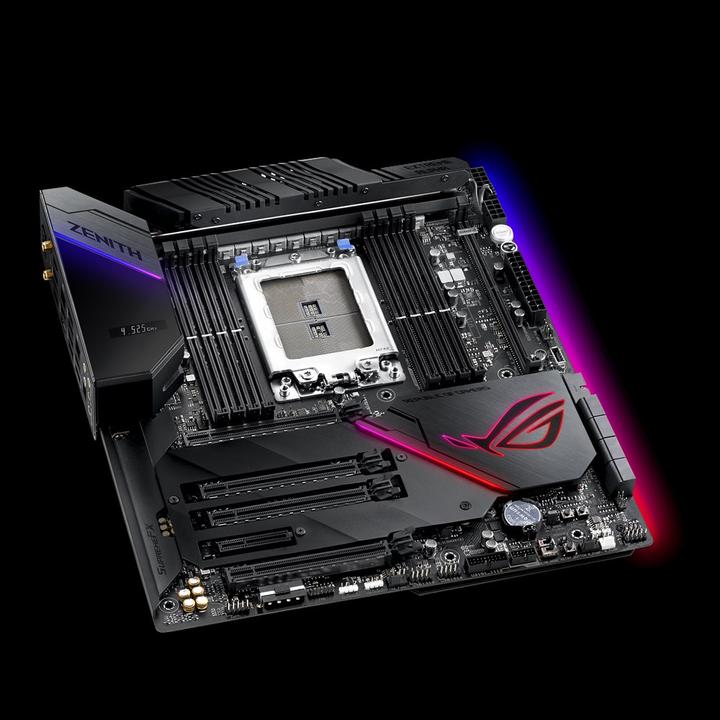

AMD TR4 Socket: Ready for the AMD Ryzen Threadripper processor series of the 1st and 2nd generation, offering maximum connectivity and speed with up to three M.2 drives and USB 3.1 Gen 2.
Comprehensive Cooling Design: An active cooler with an integrated VRM fan, M.2 aluminum heatsinks for the PCIe area, and dual backplates.
High-Performance Networking: Onboard Aquantia 10Gbit/s LAN, 802.11ac Wi-Fi with MU-MIMO support, as well as Intel Gigabit LAN with ASUS LANGuard and GameFirst V technologies.
5-Way Optimization: Automated, system-wide optimization provides overclocking and cooling profiles tailored specifically to your system.
SafeSlot Technology: Robustly constructed PCIe slots with metal reinforcement to support heavy graphics cards.
Unmatched Personalization: LiveDash OLED and ASUS-exclusive Aura Sync RGB lighting, including two RGB and addressable headers.
Industry-Leading ROG Sound: SupremeFX S1220 and ESS SABRE9018Q2C for professional-level audio performance, powered by Japanese capacitors.
Processor family | Ryzen Threadripper |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 8 x |
Internal connection options | S-ATA III (8x) |
Wireless transmission | Bluetooth |
Mainboard features | Error Correcting Code |
Item number | 10681417 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB10G0-M0EAY0 |
Release date | 5.3.2019 |
External links |
Form factor | E-ATX |
Socket | TR4 |
Chipset | AMD X399 |
Mainboard features | Error Correcting Code |
Operating system compatibility | Windows 10 Home |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac |
Processor family | Ryzen Threadripper |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 8 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4-2400 |
Max. RAM OC | 3600 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Multi-GPU technology | AMD 3-Way CrossFireX, NVIDIA Tri-SLI |

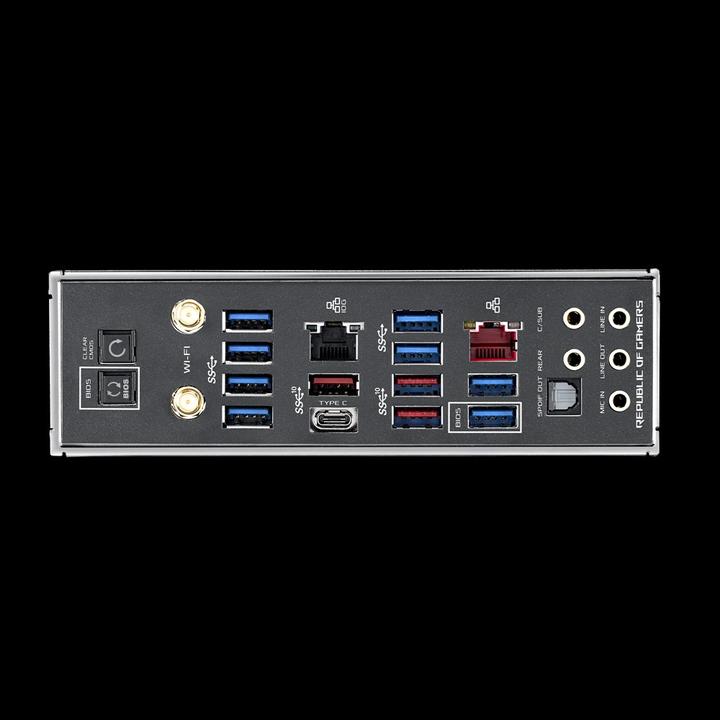

Network connections | RJ45 10 Gigabit Ethernet (1x) |
Ethernet controller brand | Aquantia, Intel |
Ethernet controller | i211 |
Max. port speed | 1 Gbit/s |
Chip | ROG SupremeFX |
Audio channel | 8.0 Channel |
Audio Connections | Coaxial S/PDIF (1x) |
Internal connection options | S-ATA III (8x) |
Expansion slot | PCI Express x16 (4x) |
Number of fan connector | 6 |
Power connectors | 24-pin ATX, 2x 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 x ASUS 2T2R dual band Wi-Fi moving antennas, 1 x DIMM.2 expansion card, 1 x Fan Extension Card II, 1 x Fan Extension Card II NODE connector cable, 1 x Fan Extension Card II power cable, 1 x Fan Extension Card II screw package, 1 x M.2 screw kit, 1 x Q-Connector, 1 x ROG big sticker, 1 x ROG weave SATA 6G cable, 1 x SLI HB BRIDGE, 1 x USB drive with utilities and drivers, 2 x M.2 screw kit, 6x SATA cable |
Length | 305 mm |
Width | 277 mm |
Height | 277 mm |
Length | 37 cm |
Width | 31 cm |
Height | 11.50 cm |
Weight | 4.19 kg |
