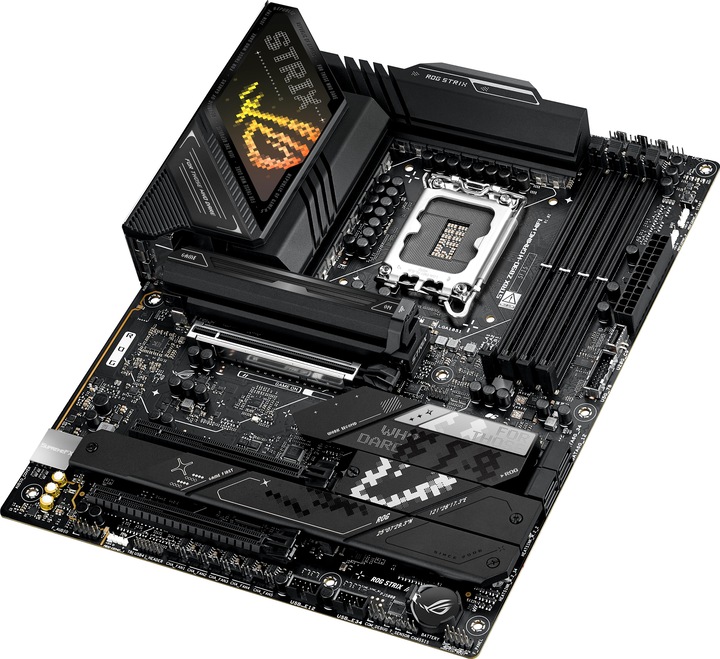

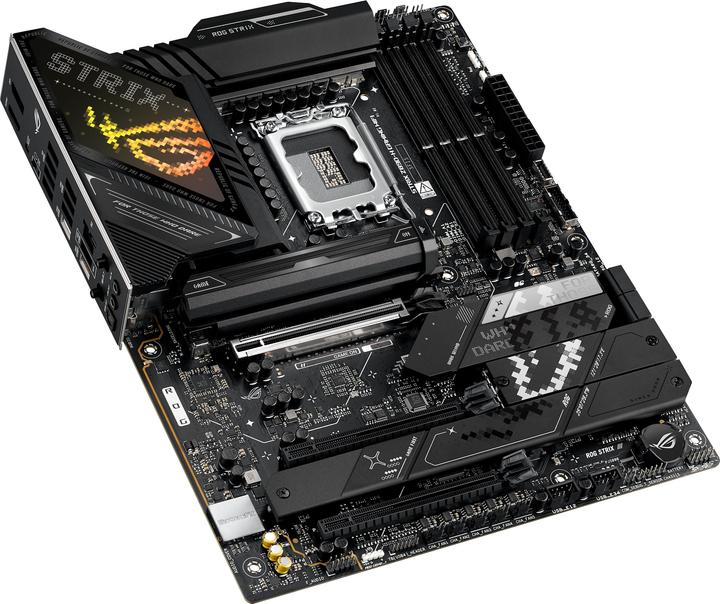

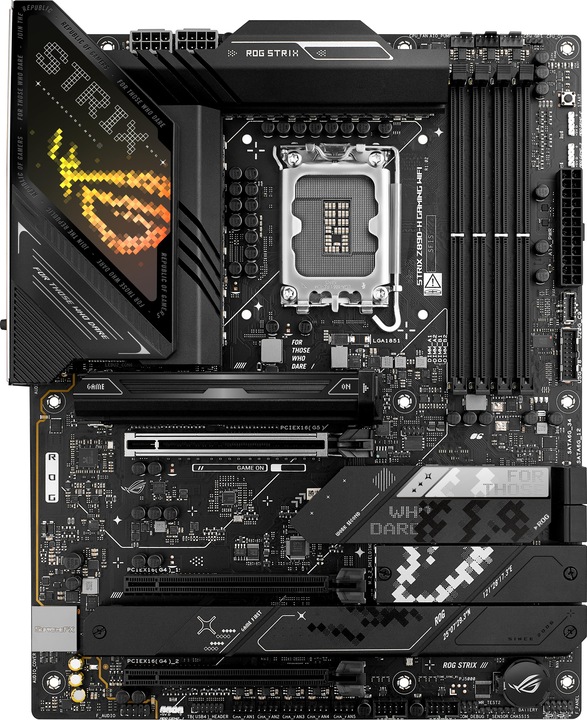

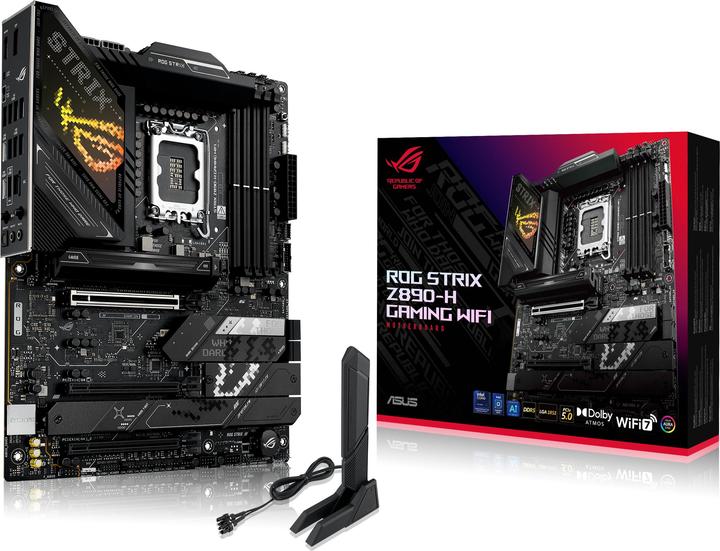

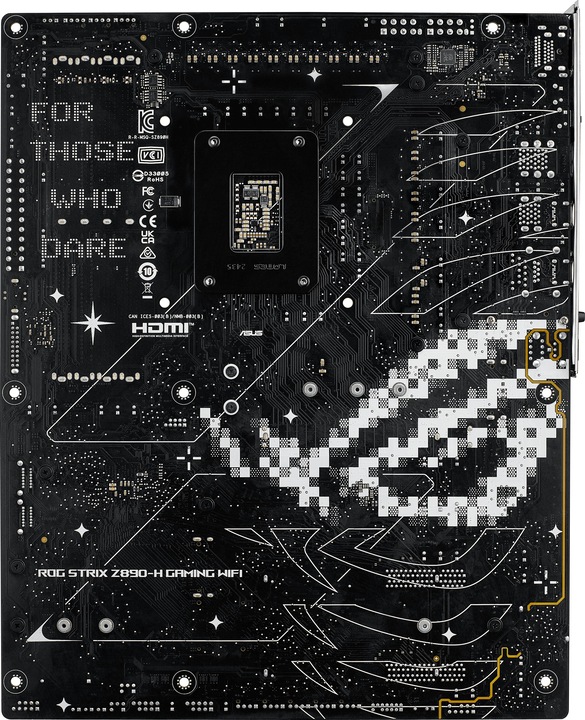

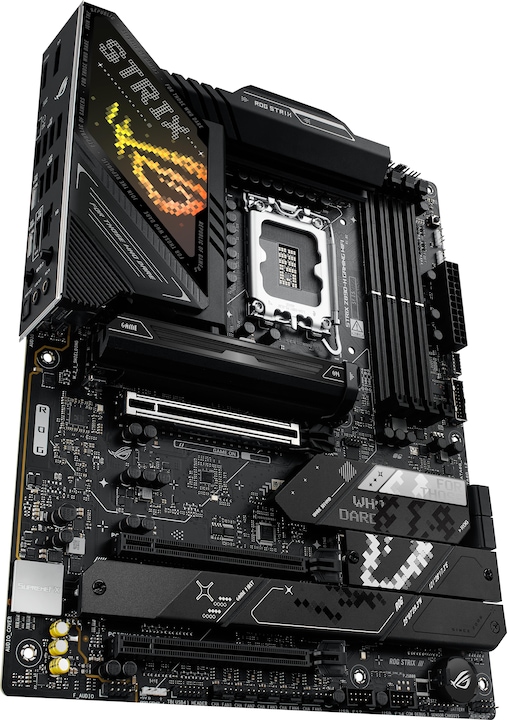

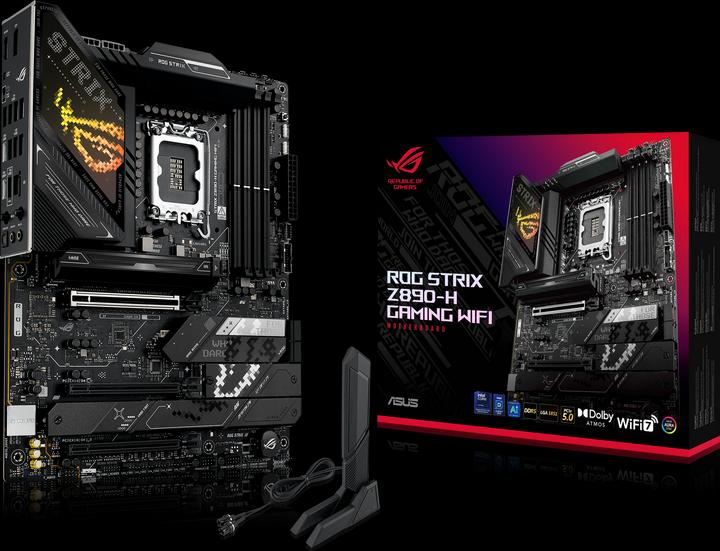

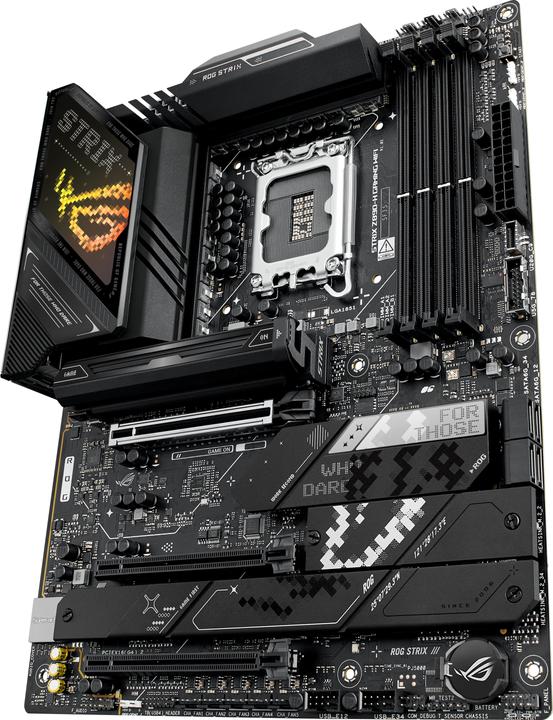

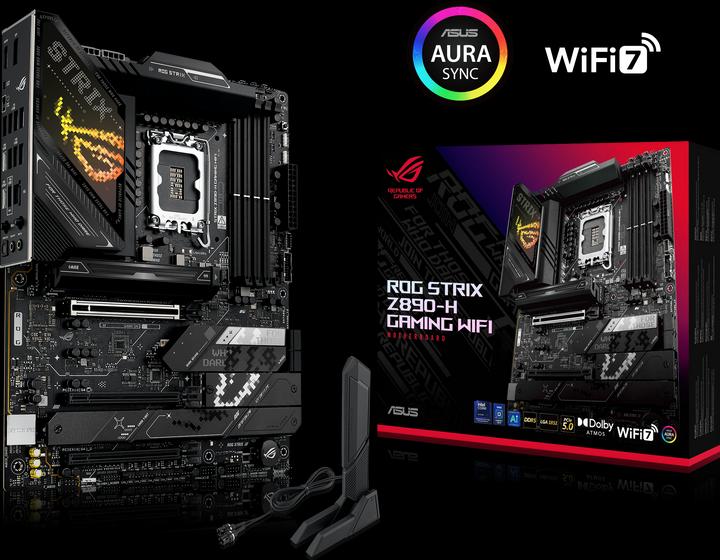

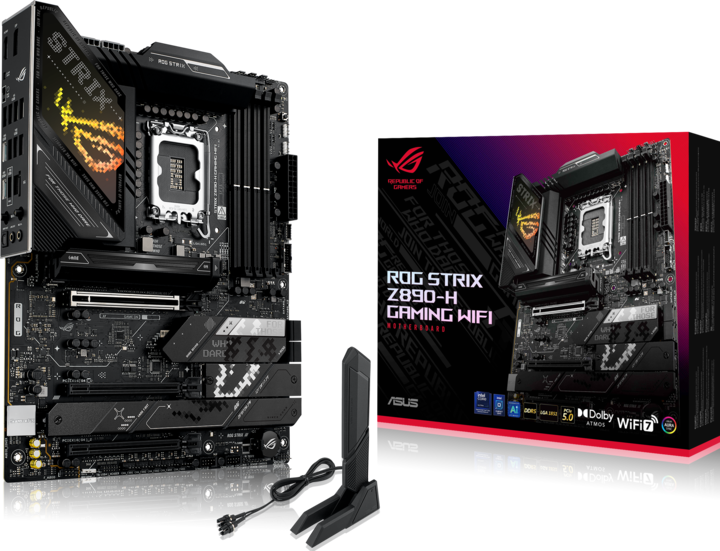

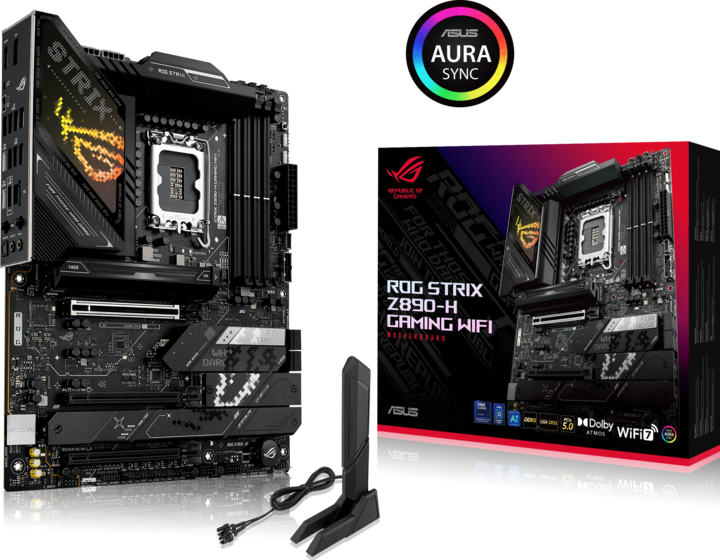

ASUS ROG STRIX Z890-H GAMING WIFI

LGA 1851, Intel Z890, ATX
Ratings
BrandMore from ASUS
Delivered between Wed, 14.5. and Thu, 15.5.
6 items in stock at third-party supplier
Supplied by
ASUS DE

Product details

Ready for advanced AI PCs: Designed for the future of AI computing, with the performance and connectivity needed for demanding AI applications.

Intel LGA 1851 socket: Ready for Intel Core Ultra processors (Series 2).

Exclusive AI technologies: NPU Boost, ASUS AI Advisor, ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking II.

Exclusive memory technologies: DIMM Fit, DIMM Flex and AEMP III to simplify setup and improve performance.

Robust power supply: 16(80A)+2(80A)+1(80A)+2(80A) power amplifiers with ProCool II power connectors, MicroFine alloy chokes and high-quality metal capacitors.

Optimised cooling design: Massive heat sinks with integrated I/O cover highly conductive thermal pads and are connected to an L-shaped heat pipe.

M.2 support: One PCIe 5.0 M.2 slot and three PCIe 4.0 M.2 slots, all with extensive cooling solutions.

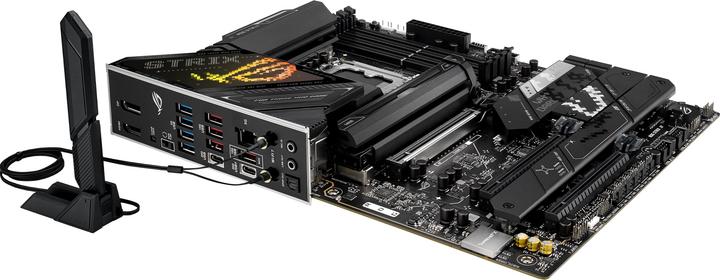

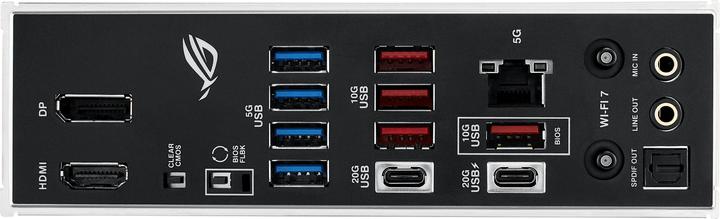

Versatile connectivity: USB 20Gbps Type-C port on the rear with up to 30 watts Power Delivery fast charging plus USB Wattage Watcher, four additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot and full support for next-generation graphics cards, HDMI 2.1 and DisplayPort 1.4.

High performance networking: Integrated Intel Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna, Realtek 5Gb Ethernet.

DIY-friendly design: PCIe Slot Q-Release Slim, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, BIOS Q-Dashboard, Q-LED, FlexKey button, BIOS FlashBack button, Clear CMOS button and pre-assembled I/O Shield.

Immersive audio: Realtek ALC1220P codec with Savitech SV3H712 amplifier, together with Dolby Atmos.

Unrivalled customisation: I/O cover with Polymo Lighting, three Gen 2 ARGB headers, all configurable with ASUS-exclusive Aura Sync RGB lighting.

Renowned software: ASUS DriverHub, Dolby Atmos, TurboV Core, GlideX, HWiNFO, bundled 60-day AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard.

Key specifications

Processor family
Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
S-ATA III (4x), USB 2.0 Header (2x)
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Temperature sensor connections
Item number
54430313

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB1K20-M0EAY0
Release date
5.2.2025
Sales rank in Category Motherboards
395 of 986

Motherboard properties

Form factor
ATX
Socket
LGA 1851
Chipset
Intel Z890
Mainboard features
Temperature sensor connections
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 7 / 802.11be

Processor

Processor family
Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
256 GB
Memory chip
DDR5 SDRAM
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x)

Network

Network connections
RJ45 5 Gigabit Ethernet (1x)
Ethernet controller brand
Realtek
Ethernet controller
Gigabit Ethernet
Max. port speed
5 Gbit/s

Audio

Chip
Realtek ALC1220P
Audio channel
7.1 Channel
Audio Connections
Microphone

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Internal connection options
S-ATA III (4x), USB 2.0 Header (2x)
Expansion slot
PCI Express x16 (Gen 4) (2x), PCI Express x16 (Gen 5) (1x)
PCI express version (max.)
5
Number of fan connector
5

Further connections

USB ports
USB-A, USB-C
Exact USB ports
USB-A 3.2 Gen 1 (4x), USB-C 3.2 Gen 2x2 (2x)

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

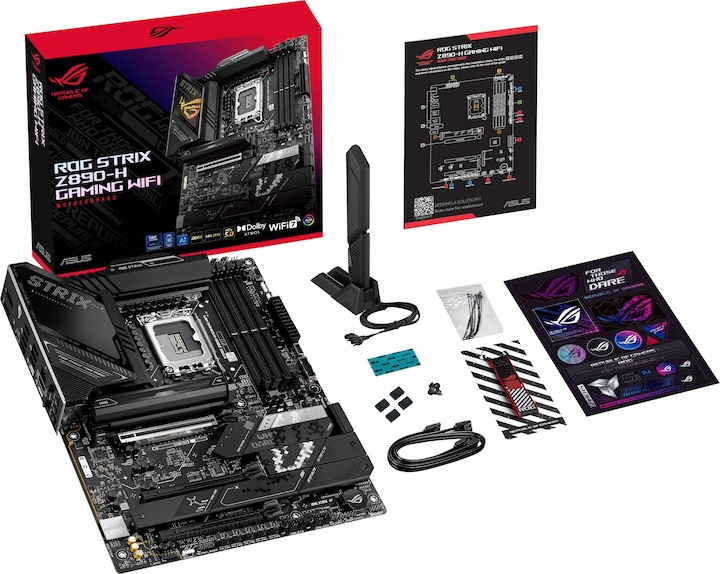

Scope of delivery

Scope of delivery
SATA

Product dimensions

Length
244 mm
Width
305 mm
Height
68 mm
Weight
2520 g

30-day right of returnReturn policy
36 Months Warranty (Bring-in)Warranty provisions
