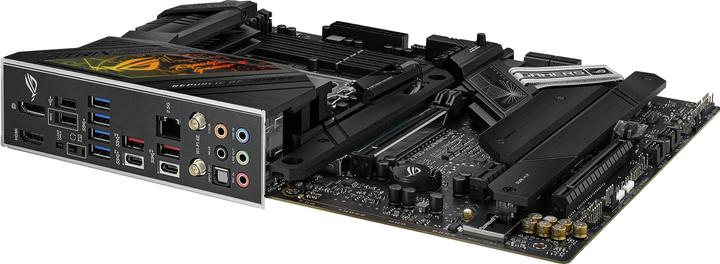

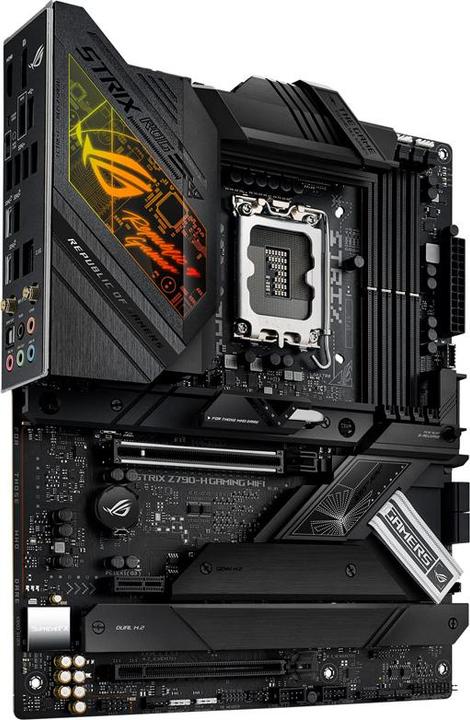

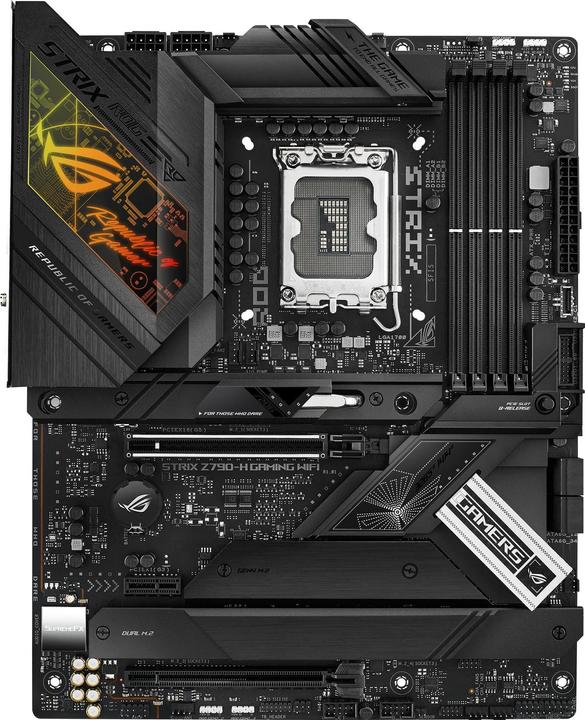

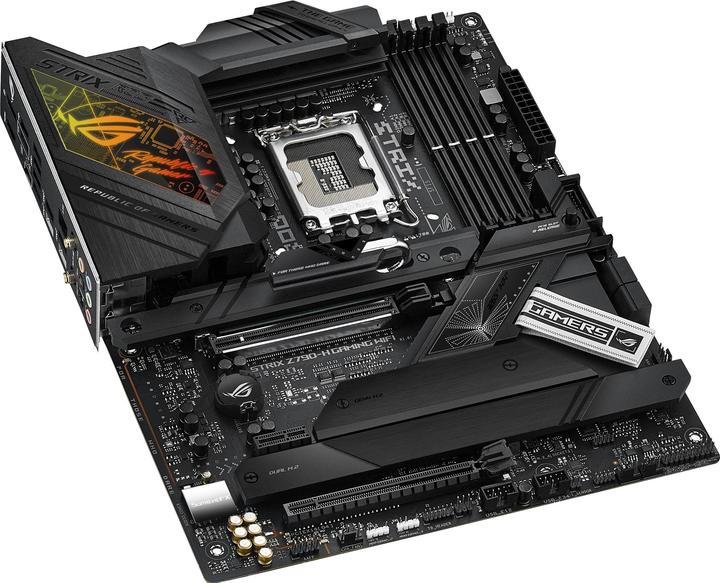

ASUS ROG STRIX Z790-H GAMING WIFI
LGA 1700, Intel Z790, ATXFree shipping starting at 50.–
Strike silently with the powerful ROG Strix Z790-H. Thick black heat sinks keep the VRM temperatures in check, allowing Intel 13th Gen processors to achieve higher boosts. There are four M.2 slots available, with the top slot featuring a combo cooler for added cooling. PCIe 5.0 support is ready for next-generation graphics cards, and modern WiFi 6E along with USB 3.2 Gen 2x2 complete the connectivity options.
Processor family | Celeron, Core i3 12th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen, Pentium |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCI/SATA Combo (1x), M.2 PCIe (3x), S-ATA (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, Front panel audio connector, RGB header, Thunderbolt header |
Item number | 23989181 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1E10-M0EAY0 |
Release date | 9.3.2023 |
Sales rank in Category Motherboards | 343 of 1048 |
Form factor | ATX |
Socket | LGA 1700 |
Chipset | Intel Z790 |
Mainboard features | Clear CMOS Button, Front panel audio connector, RGB header, Thunderbolt header |
Operating system compatibility | Windows 10, Windows 11 Home, Windows 11 Pro |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax |
Processor family | Celeron, Core i3 12th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen, Pentium |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 192 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 7200 MHz |
Supported memory speed | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

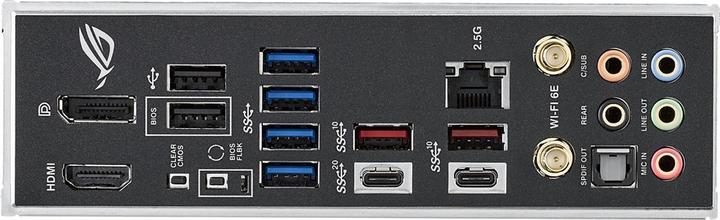

Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 2.5 Gigabit Ethernet (1x) |
Ethernet controller | Gigabit Ethernet |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC S1220A |
Audio channel | 7.1 Channel |
Audio Connections | Digital Audio Out (5) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 PCI/SATA Combo (1x), M.2 PCIe (3x), S-ATA (4x) |
Expansion slot | PCI Express x1 (1x), PCI Express x16 (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 5 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.2 Gen 1 (4x) |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 2 x Serial ATA cable |
Length | 305 mm |
Width | 244 mm |
Height | 244 mm |
Weight | 2350 g |
Length | 36.30 cm |
Width | 27.50 cm |
Height | 7.60 cm |
Weight | 2.28 kg |
