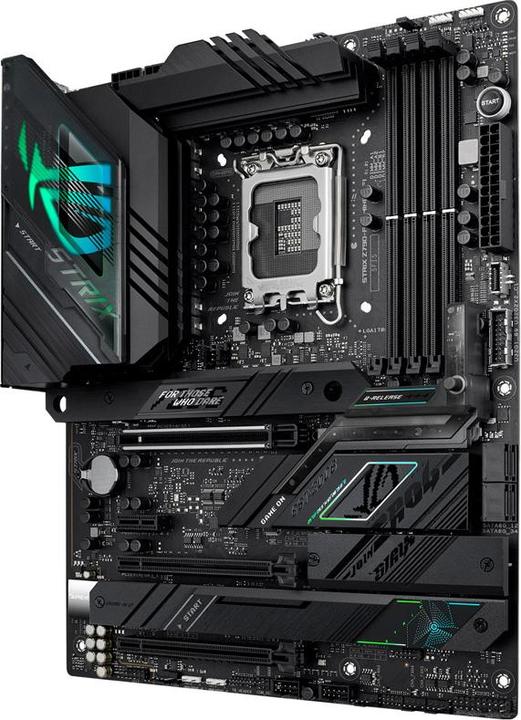

ASUS ROG STRIX Z790-F GAMING WIFI

LGA 1700, Intel Z790, ATX
47Ratings
BrandMore from ASUS
Delivered tomorrow
10 items in stock

Product details

With Aura, ASUS has developed an intuitive lighting system that allows you to illuminate your components in various colors. The synchronization between ASUS motherboards, graphics cards, and peripherals is activated and controlled by motherboards with Aura support.

Key specifications

Processor family
Celeron, Core i3 13th Gen, Core i5 13th Gen, Core i7 13th Gen, Core i9 13th Gen, Pentium
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 (4x)
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
RGB header, Temperature sensor connections
Item number
22514046

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB1CP0-M0EAY0
Release date
20.10.2022
Sales rank in Category Motherboards
49 of 941
External links
Manufacturer's site (de)

Motherboard properties

Form factor
ATX
Socket
LGA 1700
Chipset
Intel Z790
Mainboard features
RGB header, Temperature sensor connections
Operating system compatibility
Windows 10
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Processor

Processor family
Celeron, Core i3 13th Gen, Core i5 13th Gen, Core i7 13th Gen, Core i9 13th Gen, Pentium

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
192 GB
Memory chip
DDR5 SDRAM
Max. RAM OC
7800 MHz
Supported memory speed
5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 7600 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x), HDMI (1x)
Video connection version
Display port 1.4, HDMI 2.1

Network

Network connections
RJ45 (1x)
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC4080
Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm Line In (1x)

Data storage

RAID configuration
10

Internal interfaces

Internal connection options
M.2 (4x)
Expansion slot
PCI Express x1 (1x), PCI Express x16 (2x), PCI Express x16 (Gen 5) (1x)
PCI express version (max.)
5
Number of fan connector
8

Further connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (2x), USB-A 3.2 Gen 1 (4x), USB-C 3.2 Gen 2 (1x)

Power supply

Power connectors
24-pin ATX, 2x 8-pin ATX 12V

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
User manual

Product dimensions

Length
244 mm
Width
305 mm
Height
275 mm
Weight
2216 g

Package dimensions

Length
35.20 cm
Width
27.70 cm
Height
7.10 cm
Weight
2.21 kg

30-day right of return
36 Months Warranty (Bring-in)
