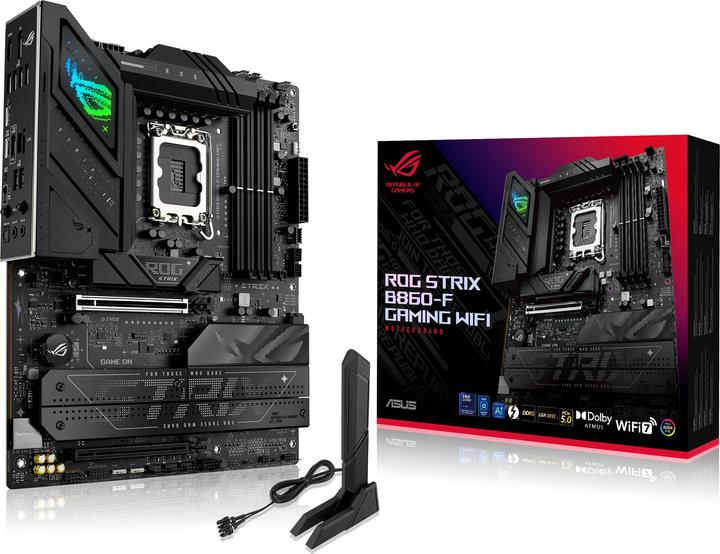

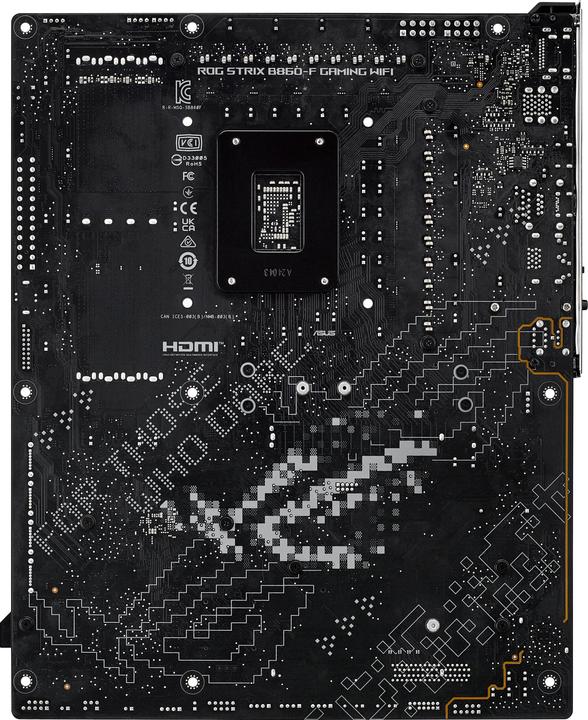

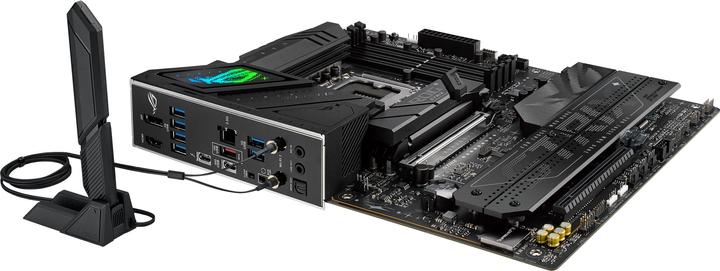

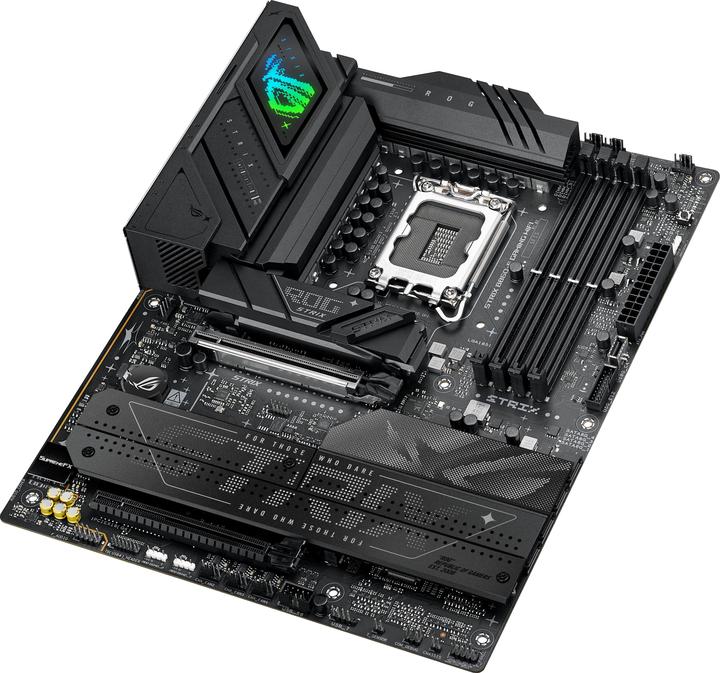

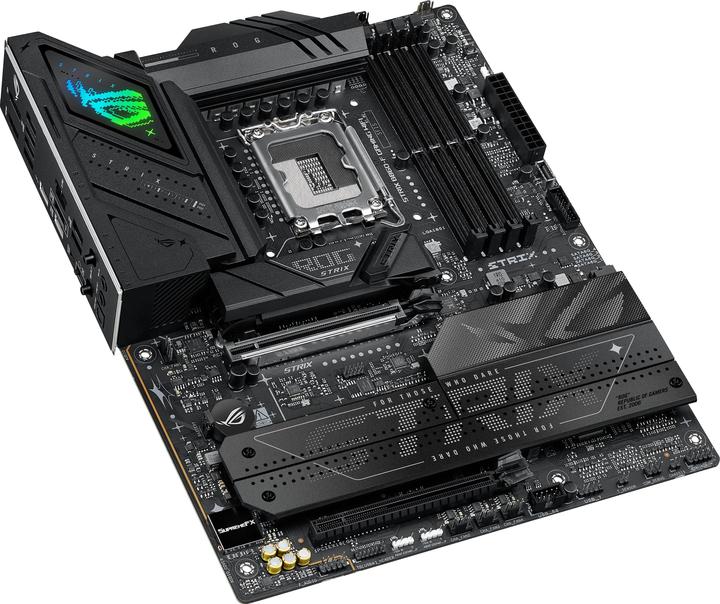

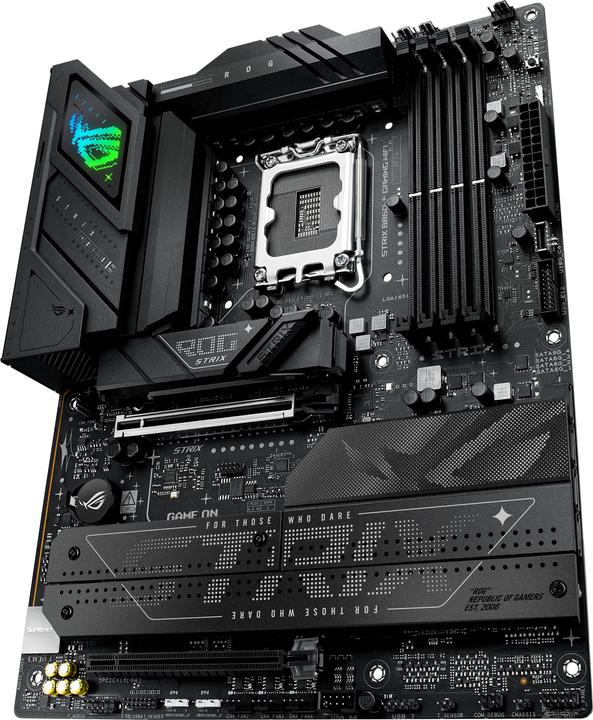

The ASUS ROG STRIX B860-F GAMING WIFI motherboard provides a robust platform for gamers and power users. With support for Intel Core Ultra processors and DDR5 SDRAM up to 4533 MHz, it enables a responsive and high-performance computing experience. The board features multiple expansion slots, including PCIe 5.0 x16 and PCIe 4.0, allowing users to integrate advanced graphics cards and other peripherals, ensuring sufficient connectivity for current and future technologies. A range of connectivity options, including USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, and Thunderbolt 4, facilitates fast data transfer and versatility with various devices. The integrated high-definition audio with Dolby Atmos support enhances the sound experience, making it ideal for gaming audio and multimedia tasks. Additionally, features like Intel Rapid Storage Technology and customizable Aura Sync lighting improve the user experience and performance of the motherboard, creating an environment tailored for gaming and intensive computing demands.
Mainboard features | Clear CMOS Button, Front panel audio connector |
Wireless transmission | Bluetooth, Wi-Fi |
Number of memory modules (RAM) | 4x |
Internal connection options | M.2 PCIe (4x), S-ATA III (4x) |
Item number | 53791719 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1JG0-M0EAY0 |
Release date | 2.12.2024 |
External links |
Form factor | ATX |
Socket | LGA 1851 |
Chipset | Intel B860 |
Mainboard features | Clear CMOS Button, Front panel audio connector |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 7 / 802.11be |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4x |
Max. memory (RAM) | 256 GB |
Max. RAM OC | 9066 MHz |
Transfer rate | 9066 MT/s |
RAM buffer | Unbuffered |

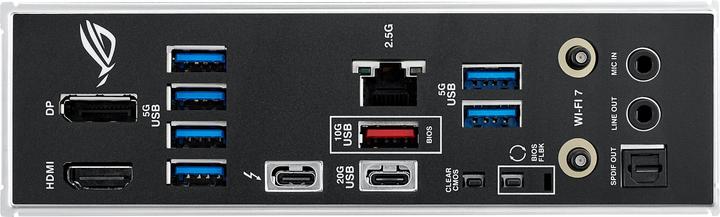

Video connections | DisplayPort (1x), HDMI (1x), Thunderbolt 4 (1x) |
Ethernet controller brand | Intel |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC4080 |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 PCIe (4x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (2x) |
PCI express version (max.) | 5 |
Number of fan connector | 4 |
USB ports | Thunderbolt, USB-A, USB-C |
Power connectors | 24-pin ATX, 2x 8-pin PCI-E |
Country of origin | Germany |
Manufacturer commitment | RE100, SBTi |
CO₂ emissions | 2314.95 kg |
Climate contribution | CHF 11.25 |
Length | 244 mm |
Width | 244 mm |
Height | 50 mm |
Weight | 1513.20 g |
Length | 36 cm |
Width | 27 cm |
Height | 7 cm |
Weight | 2.14 kg |
How often does a product of this brand in the «Motherboards» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «Motherboards» category returned?
Source: Digitec Galaxus
At Asus, "Strix" stands for upper-class products, "- F" within this series usually stands for the second-best model. In combination with the B860, which is formally aimed at the mid-range but is quite well equipped, this results in a feature-rich, high-quality, but also high-priced board with an unclear target group...
