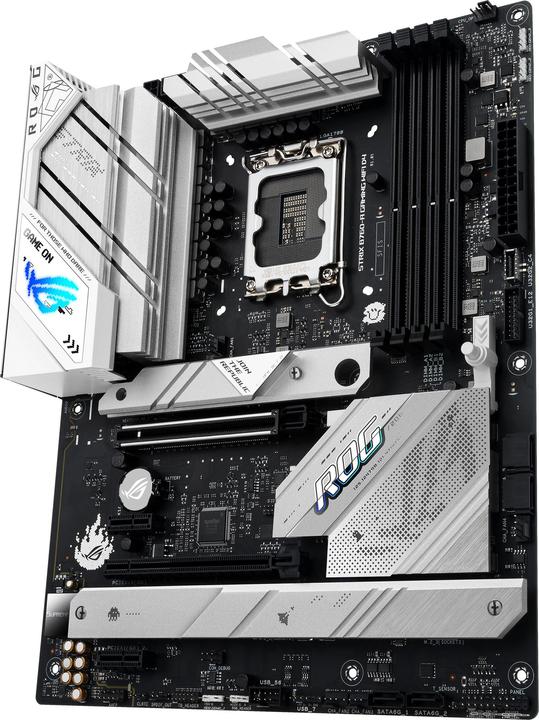

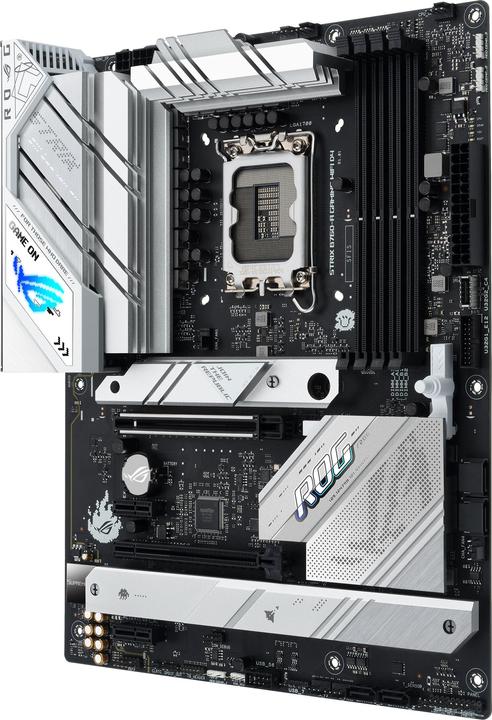

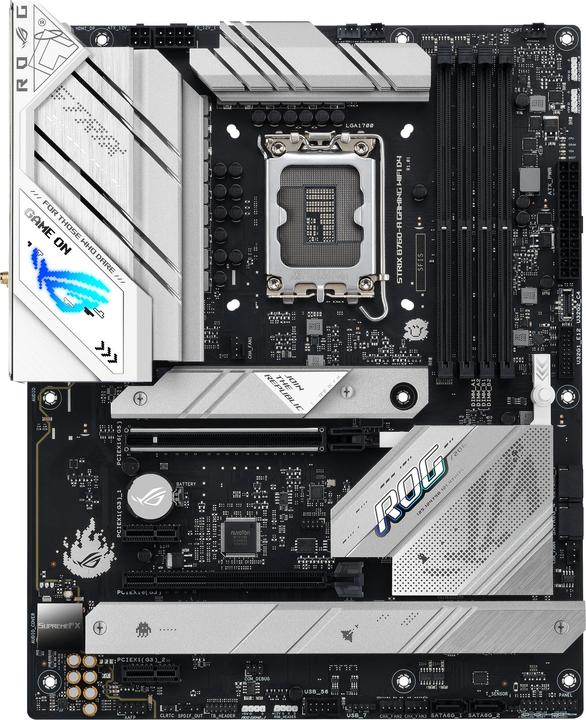

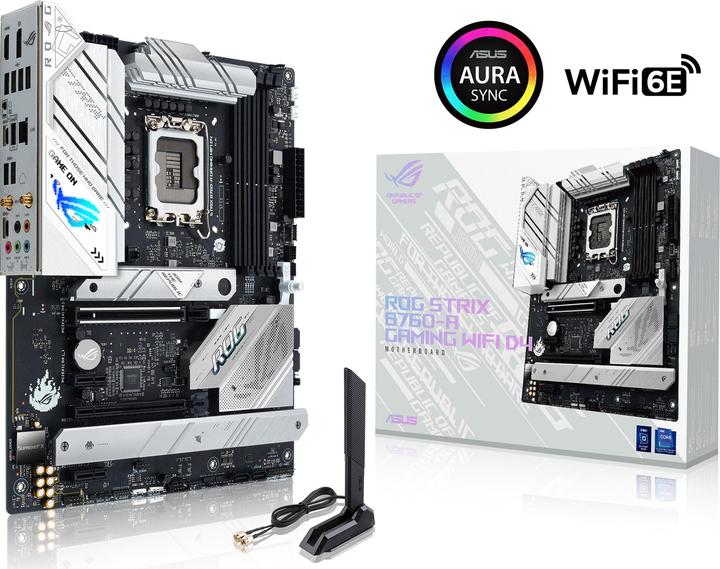

ASUS ROG STRIX B760-A GAMING WIFI D4

LGA 1700, Intel B760, ATX
13Ratings
BrandMore from ASUS
Currently out of stock

Product details

Intel LGA 1700 socket: Ready for Intel Core, Intel Core, Pentium Gold, and Celeron processors of the 13th generation. Robust power supply: Power levels of the 12th generation + 1, ProCool power connectors, high-quality alloy chokes, and durable capacitors are used to support the latest multi-core processors. Optimized VRM thermals: Thick heat sinks connected to the VRM with highly conductive thermal pads, and a larger heat sink integrated into the I/O cover to create additional surface area.

Key specifications

Processor family
Celeron, Core i3, Core i5
Memory type
DDR4-RAM
Number of memory modules (RAM)
4 x
Internal connection options
S-ATA III (4x)
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Thunderbolt header
Item number
23621346

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB1DD0-M0EAY0
Release date
29.11.2022

Motherboard properties

Form factor
ATX
Socket
LGA 1700
Chipset
Intel B760
Mainboard features
Thunderbolt header
Operating system compatibility
Windows 10
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Processor

Processor family
Celeron, Core i3, Core i5

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR4-2133, DDR4-2400, DDR4-2666, DDR4-2800, DDR4-2933, DDR4-3200
Supported memory speed
2133 MHz, 2933 MHz, 4000 MHz, 4400 MHz, 4800 MHz, 5000 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x), HDMI (1x)
Video connection version
Display port 1.4, HDMI 2.1

Network

Network connections
RJ45 (1x)
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC4080
Audio channel
7.1 Channel
Audio Connections
Coaxial S/PDIF (1x)

Internal interfaces

Internal connection options
S-ATA III (4x)
Expansion slot
PCI Express x1 (Gen 3) (2x), PCI Express x16 (Gen 5) (1x)
Number of fan connector
4

Power supply

Power connectors
8-pin PCI-E

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Sata Cables

Product dimensions

Length
244 mm
Width
305 mm
Height
244 mm
Weight
1700 g

Package dimensions

Length
37.20 cm
Width
29.60 cm
Height
7.60 cm
Weight
2.09 kg
