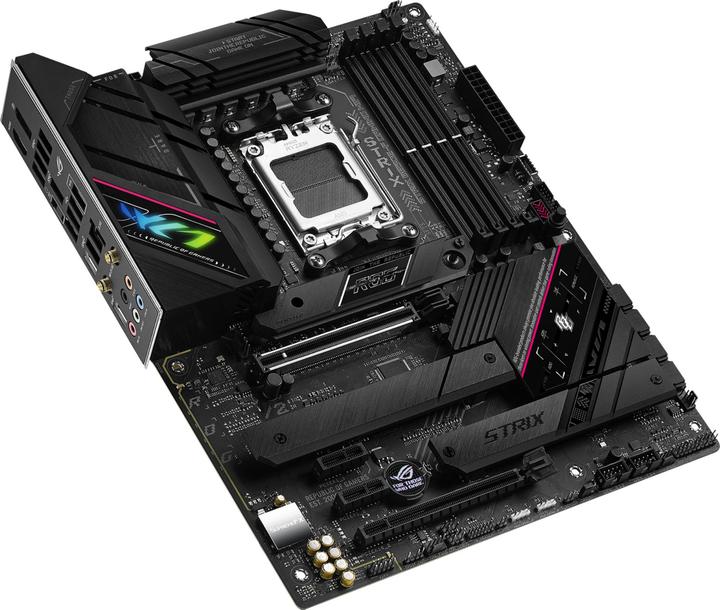

ASUS ROG STRIX B650E-F GAMING WIFI

AM5, AMD B650E, ATX
121Ratings
BrandMore from ASUS
Test reportsVery good based on 1 test
tonight with flash delivery
to check if flash delivery is available to you.

Product details

This powerful machine is the centerpiece of your next hot rod. With the stunning speed of PCIe 5.0 and WiFi 6E, robust cooling provided by integrated heatsinks, and advanced power design tailored for Ryzen processors, the ROG Strix B650E-F leaves its competition in the dust.

Key specifications

Processor family
Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 9 7th Gen
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
24-pin ATX power connector (1x), 4-pin ATX 12V (1x), 4-pin CPU (1x), 4-pin Molex (5x), 8-pin ATX 12V (2x)
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Clear CMOS Button, COM Port Header, RGB header, S/PDIF header, Thunderbolt header
Item number
22605357

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB1BQ0-M0EAY1
Release date
22.9.2022
Sales rank in Category Motherboards
1 of 974
External links
Manufacturer's site (de)

Motherboard properties

Form factor
ATX
Socket
AM5
Chipset
AMD B650E
Mainboard features
Clear CMOS Button, COM Port Header, RGB header, S/PDIF header, Thunderbolt header
Operating system compatibility
Windows
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Processor

Processor family
Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 9 7th Gen

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR5, DDR5-4800, DDR5-5200, DDR5-5600
Max. RAM OC
8000 MHz
Supported memory speed
4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x), HDMI (1x)
Video connection version
Display port 1.4, HDMI 2.1

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Intel
Ethernet controller
Intel I225-V
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC4080
Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm (5x)

Data storage

RAID configuration
0, 1, 10

Internal interfaces

Internal connection options
24-pin ATX power connector (1x), 4-pin ATX 12V (1x), 4-pin CPU (1x), 4-pin Molex (5x), 8-pin ATX 12V (2x)
Expansion slot
PCI Express x1 (2x), PCI Express x16 (1x)
PCI express version (max.)
5
Number of fan connector
4

Further connections

USB ports
USB-A, USB-C
Exact USB ports
USB-A 2.0 (4x), USB-A 3.2 Gen 1 (4x), USB-A 3.2 Gen 2 (2x)

Power supply

Power connectors
24-pin ATX, 8-pin PCI-E

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
SATA cable, User manual

Product dimensions

Length
244 mm
Width
305 mm
Height
50 mm
Weight
2000 g

Package dimensions

Length
34.90 cm
Width
27.80 cm
Height
8.10 cm
Weight
2.10 kg
