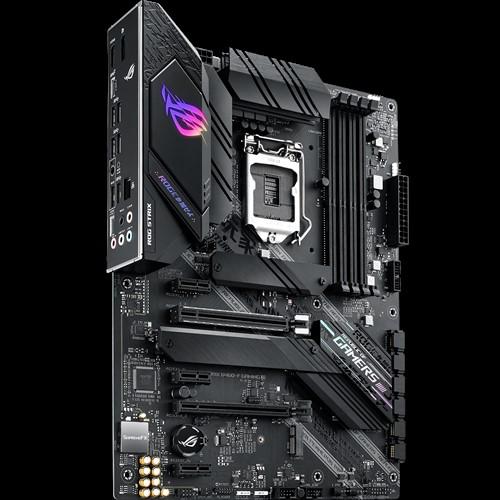

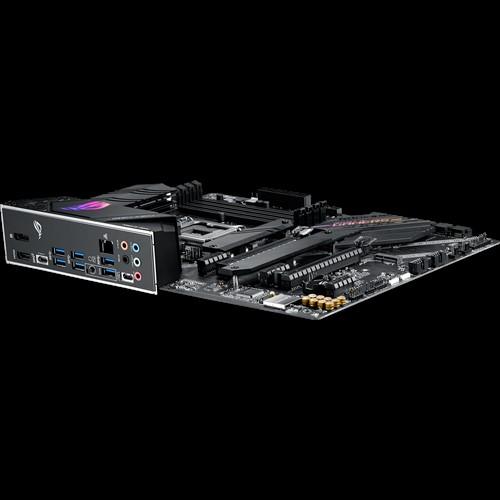

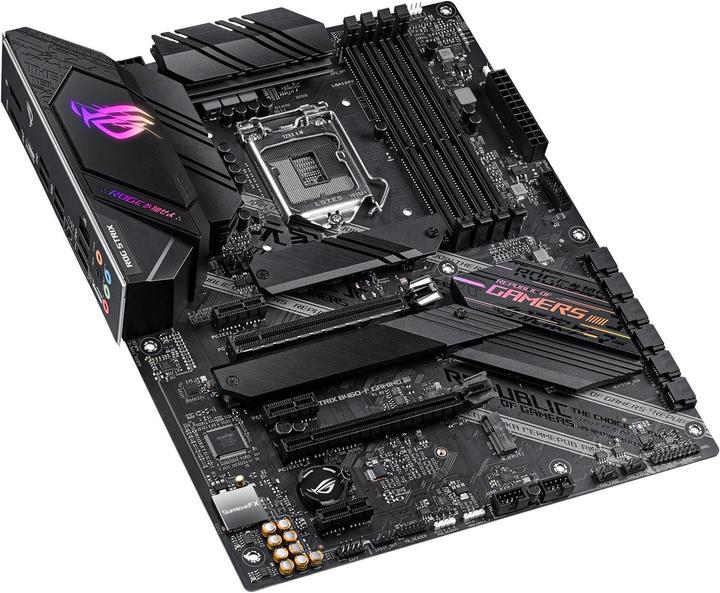

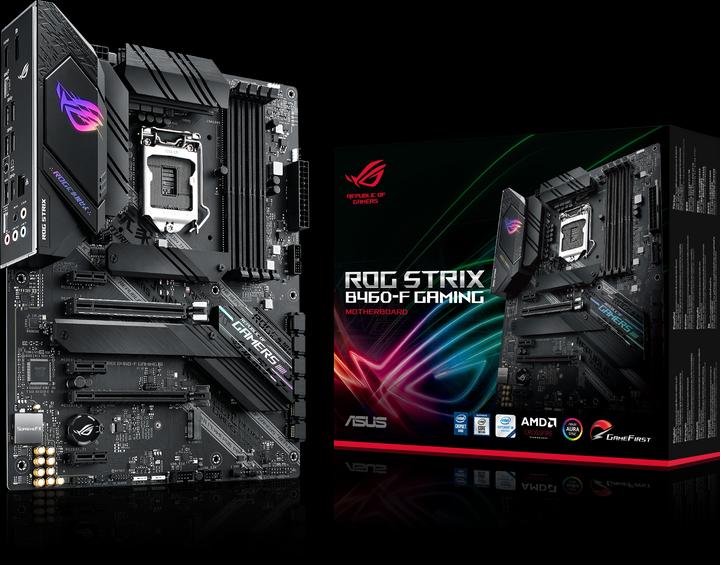

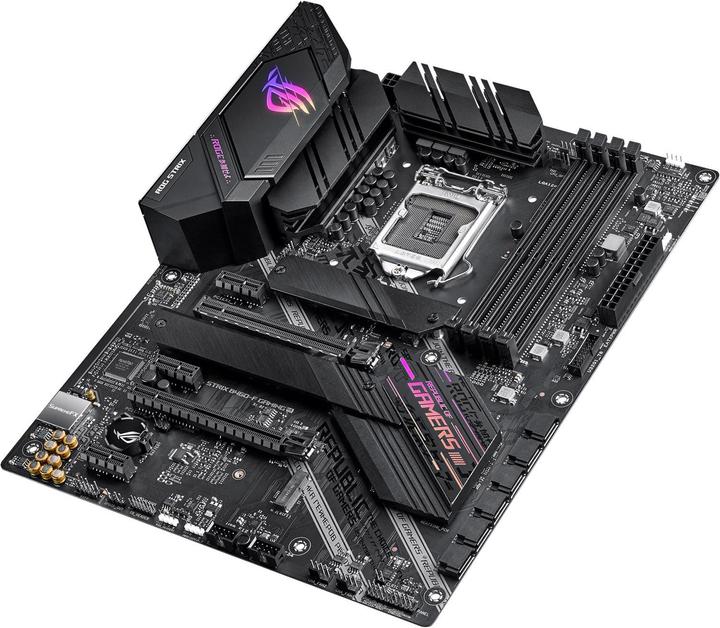

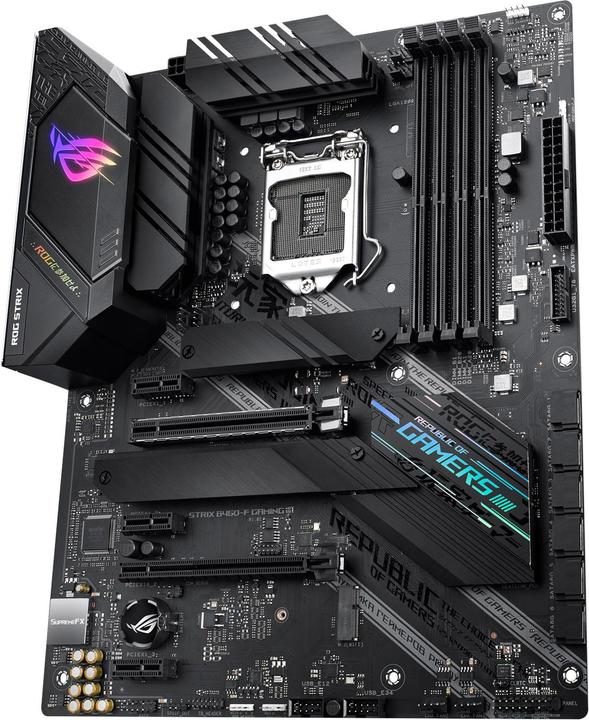

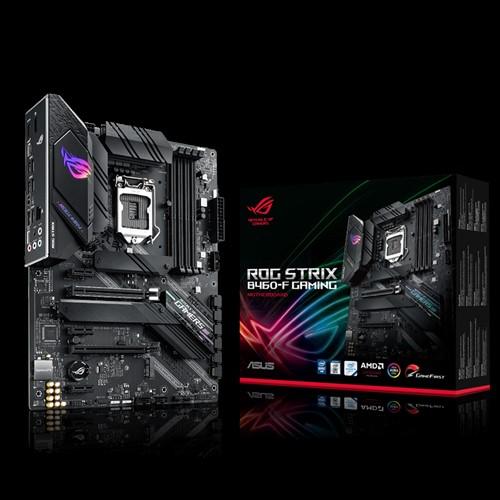

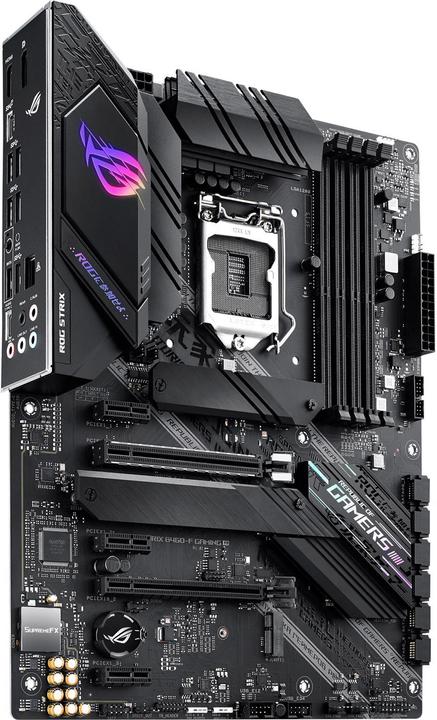

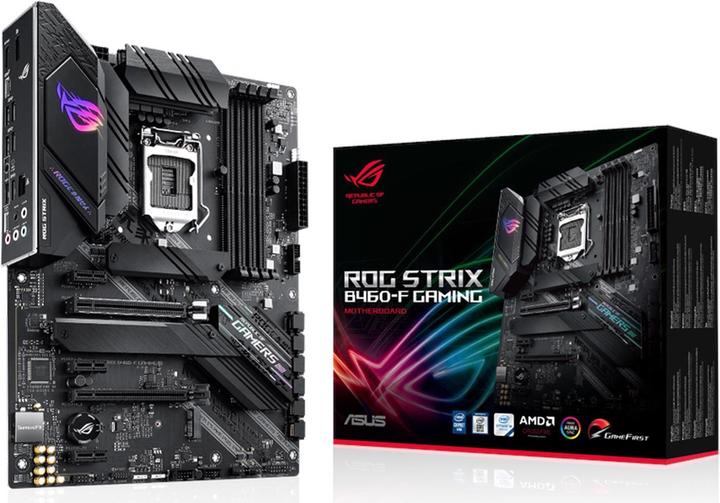

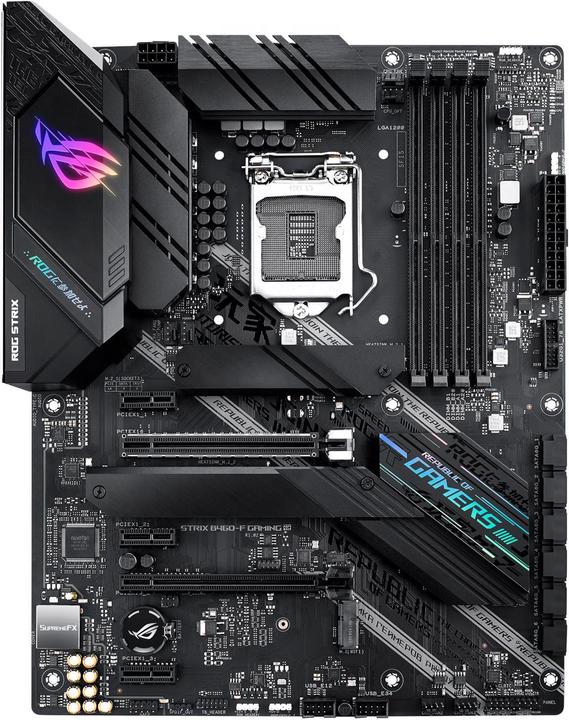

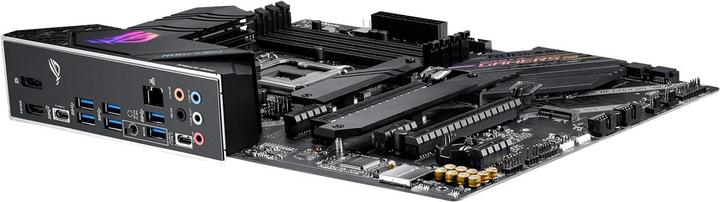

ASUS ROG STRIX B460-F GAMING
LGA 1200, Intel B460, ATXProduct details
The Intel B460 chipset of the ASUS ROG Strix B460-F Gaming motherboard is designed for use with Comet Lake CPUs from the Core 10000 series and offers a total of 18 PCIe 3.0 lanes. This chipset supports, for example, PCIe-connected M.2 slots for particularly fast NVMe SSDs as well as Intel Optane. Socket 1200 motherboards with the B460 chipset provide a solid foundation for budget gaming PCs and home office computers.
Processor family | Celeron, Core i3, Core i5, Core i7, Core i9, Pentium G Series |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCI/SATA Combo (1x), S-ATA III (6x) |
Item number | 13452752 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB13R0-M0EAY0 |
Release date | 22.7.2020 |
External links |
Form factor | ATX |
Socket | LGA 1200 |
Chipset | Intel B460 |
BIOS type | UEFI AMI |
Processor family | Celeron, Core i3, Core i5, Core i7, Core i9, Pentium G Series |
Memory form factor | DIMM |
Number of pins | 184 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4-2933 |
Max. RAM OC | 2933 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

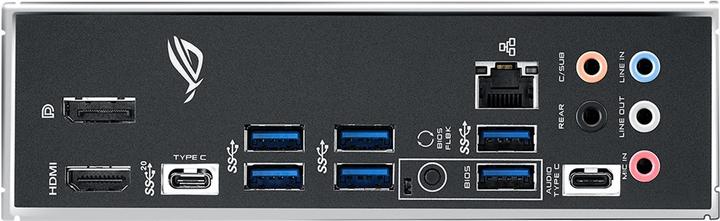

Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | HDMI 1.4b |
Multi-GPU technology | AMD CrossfireX |
Network connections | RJ45 Gigabit Ethernet (1x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel I219-V |
Max. port speed | 1 Gbit/s |
Chip | SupremeFX S1220A |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (1x) |
Internal connection options | M.2 PCI/SATA Combo (1x), S-ATA III (6x) |
Expansion slot | PCI Express x16 (1x) |
PCI express version (max.) | 3 |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |

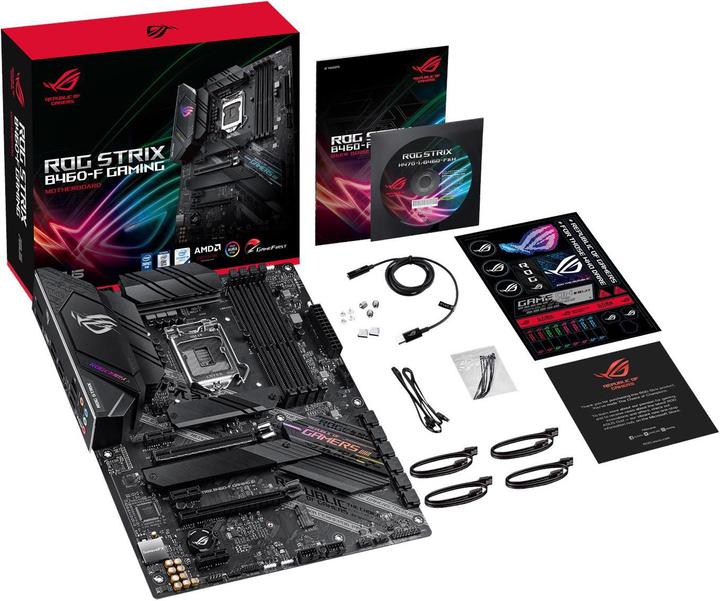

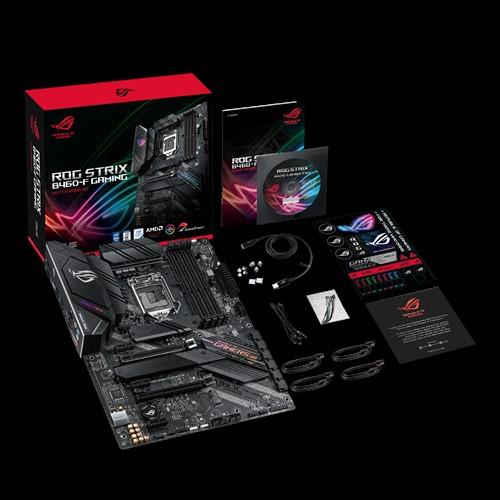

Scope of delivery | 4 x Serial ATA cable, USB-C to 3.5mm headphone jack |
Length | 305 mm |
Width | 305 mm |
Height | 244 mm |
Length | 34 cm |
Width | 27.30 cm |
Height | 7 cm |
Weight | 1.63 kg |
