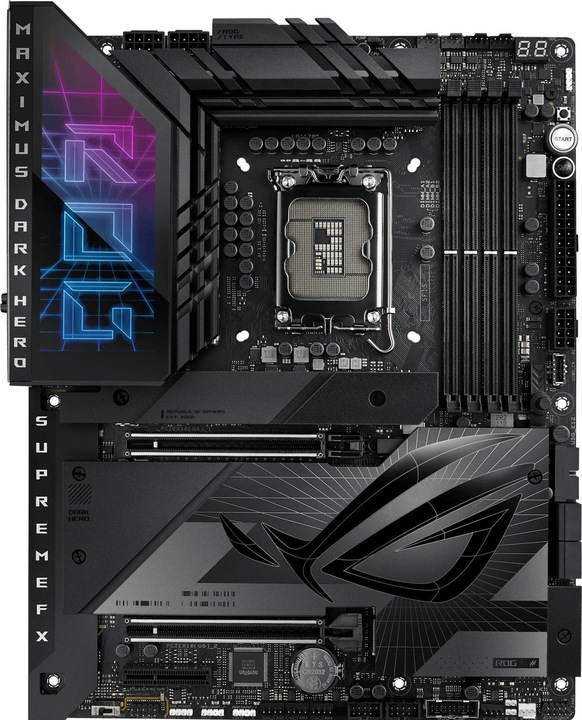

Intel Z790 LGA 1700 ATX motherboard with 20 + 1 power stages, DDR5, Wi-Fi 7 with ASUS WiFi Q antenna, five M.2 slots, onboard PCIe 5.0 NVMe SSD slot, PCIe 5.0 x16 SafeSlots with Q-Release, two Thunderbolt 4 ports, USB 20Gbps Type-C front panel connection with Quick Charge 4+ up to 60W, AI Overclocking, AI Cooling II, AI Networking, two-way AI Noise Cancellation, and Aura Sync RGB lighting.
ROG Overclocking Technologies: With integrated intelligence to detect, predict, and adjust CPU performance parameters and tools to control and monitor system values, you can awaken the Dark Hero overclocker within you.
AI Overclocking: Tuning is now faster and smarter than ever before. ASUS AI Overclocking creates profiles for the CPU and cooling to determine the optimal configuration and push the system to its limits. The predicted values can be automatically applied or used as a starting point for further experimentation.
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (5x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, Error Correcting Code, Power-On Button, Reset button, Temperature sensor connections, Trusted Platform Module |
Item number | 39171232 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1F90-M0EAY0 |
Release date | 20.9.2023 |
Sales rank in Category Motherboards | 357 of 1013 |
Form factor | ATX |
Socket | LGA 1700 |
Chipset | Intel Z790 |
Mainboard features | Clear CMOS Button, Error Correcting Code, Power-On Button, Reset button, Temperature sensor connections, Trusted Platform Module |
Operating system compatibility | Linux, Windows 10, Windows 11 Home, Windows 11 Pro |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax, Wi-Fi 7 / 802.11be |
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 192 GB |
Memory chip | DDR5, DDR5-4800, DDR5-5200, DDR5-5600, DDR5-6000, DDR5-6200, DDR5-6400, DDR5-6600, DDR5-6666, DDR5-6800, DDR5-7000, DDR5-7200, DDR5-7600, DDR5-7800, DDR5-8000 |
Max. RAM OC | 8000 MHz |
Supported memory speed | 4800 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 8000 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

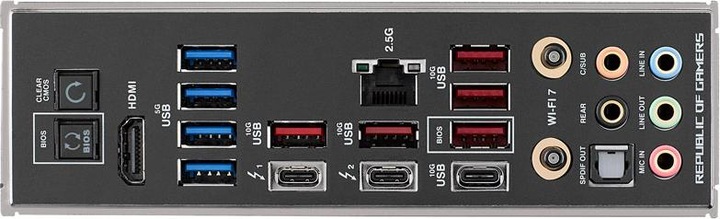

Video connections | HDMI (1x), Thunderbolt (2x), USB 3.2 Gen 2 Type-C (1x) |
Video connection version | HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Intel |
Ethernet controller | Gigabit Ethernet |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC4082 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (5x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 (5x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (2x), PCI Express x4 (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 7 |
USB ports | Thunderbolt, USB-A, USB-C |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.2 Gen 1 (4x), USB-C 3.2 Gen 2 (1x) |
Power connectors | 8x 8-pin PCI-E |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | WiFi antennas |
Length | 244 mm |
Width | 370 mm |
Height | 310 mm |
Weight | 2500 g |
Length | 37.30 cm |
Width | 31.40 cm |
Height | 12.10 cm |
Weight | 3.87 kg |
