ASUS ROG Crosshair VII HERO

AM4, AMD X470, ATX
Currently out of stock

Product details

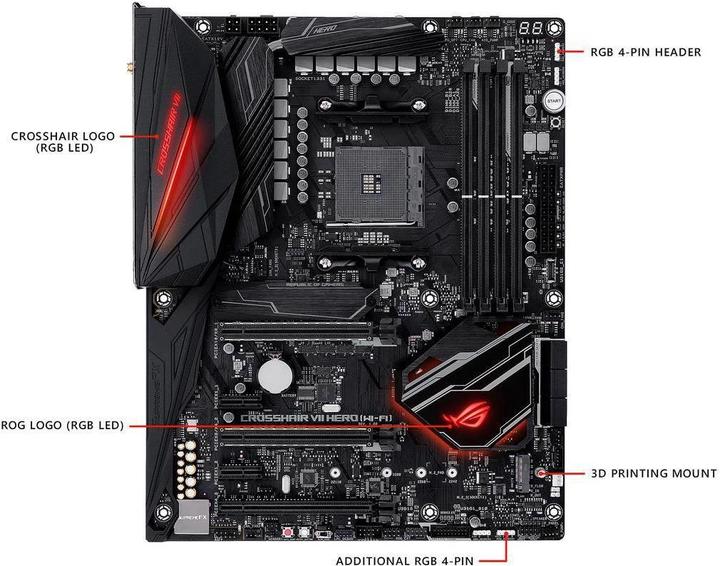

Put your opponents in the shadows. The ASUS Aura SDK gives developers the opportunity to take full advantage of the vast variety of Aura-Sync-enabled PC hardware. From native lighting to peripherals and many more, the SDK offers a growing collection of options to enhance games and software with RGB lighting. Gaming effects, notifications, and audio output can be expressed with Aura-compatible hardware to underline visual action on the screen, from subtle to spectacular. In addition, system parameters, such as the internal temperature, can be mapped as a lighting effect. There are many new ways to monitor important information.

DDR4 overclocking. Whether you're looking for high memory frequencies or low-latency timings, the ROG Crosshair VII Hero gives you all the tools you need to unlock the potential of the Ryzen platform. Carefully optimized traces preserve signal integrity, while proven ROG firmware provides the necessary optimizations to ensure optimum stability with maximum memory performance. Use a high-density storage kit for demanding multitasking tasks or put together a specialized setup that will give you the bandwidth for your favorite games and applications. No matter how you decide, the Hero does it all.

SupremeFX. ROG's Supreme FX audio technology has evolved to deliver the best recording quality ever, with an exceptional signal-to-noise ratio (SNR) of 113dB on the line-in connector. In addition, we have a low-dropout regulator for a cleaner power supply to the SupremeFX S1220 codec, an ESS Saber Hi-Fi ES9023P digital-to-analog converter for excellent front panel playback, and a Texas Instruments RC4580 high-op amp gain performance and low distortion integrate a combination that provides a more immersive audio experience than ever before.

Key specifications

Processor family
Ryzen 2nd Gen
Memory type
DDR4-RAM
Number of memory modules (RAM)
4 x
Internal connection options
S-ATA III (6x)
Mainboard features
Clear CMOS Button
Item number
8387546

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB0XJ0-M0EAY0
Release date
17.4.2018
External links

Motherboard properties

Form factor
ATX
Socket
AM4
Chipset
AMD X470
Mainboard features
Clear CMOS Button
Operating system compatibility
Windows 10 HomeWindows 10 Pro
BIOS type
UEFI AMI

Processor

Processor family
Ryzen 2nd Gen

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
64 GB
Memory chip
DDR4-2133DDR4-2400
Max. RAM OC
3466 MHz
Supported memory speed
2133 MHz2400 MHz2666 MHz2933 MHz3000 MHz3200 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

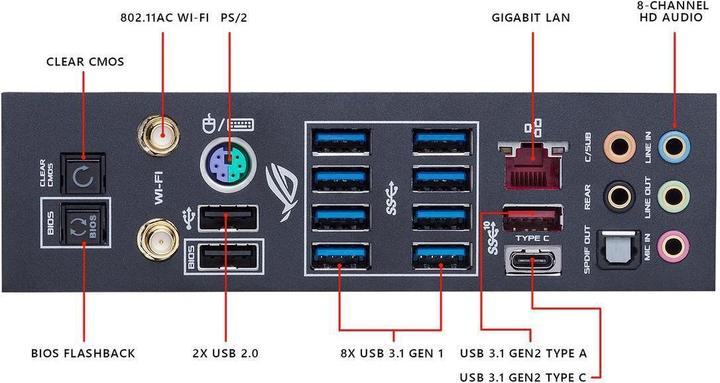

Video connections
1 x USB-C
Multi-GPU technology
AMD 3-Way CrossFireXNVIDIA SLI

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Intel
Ethernet controller
Intel I211AT
Max. port speed
1 Gbit/s

Audio

Chip
SupremeFX S1220A
Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm (5x)Optical TOSLINK (1x)

Internal interfaces

Internal connection options
S-ATA III (6x)
Expansion slot
PCI Express x1 (2x)PCI Express x16 (3x)
PCI express version (max.)
3

Power supply

Power connectors
24-pin ATX4-pin ATX 12V8-pin ATX 12V

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
S-ATA cableUser manual

Product dimensions

Length
304.80 mm
Width
244 mm
Height
244 mm

Package dimensions

Length
37 cm
Width
31 cm
Height
11.20 cm
Weight
1.07 kg
