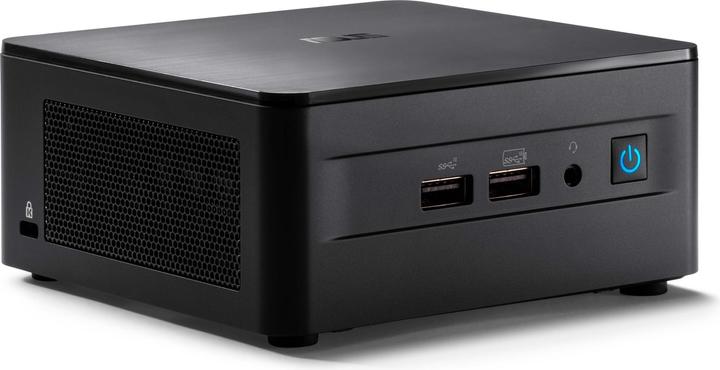

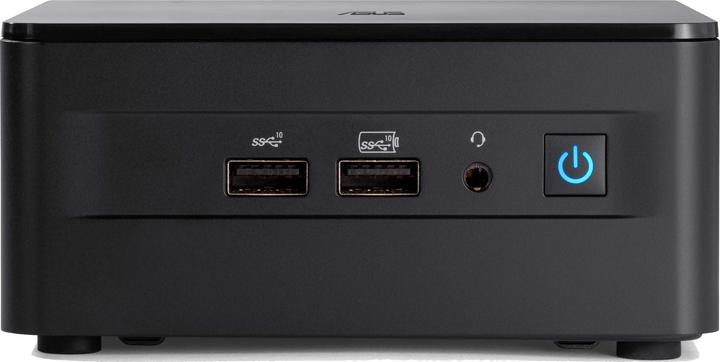

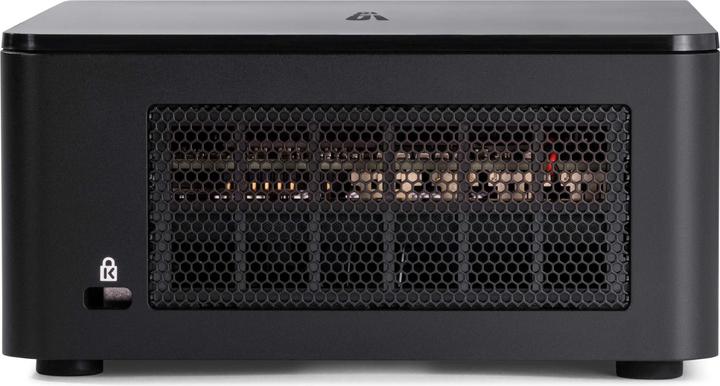

ASUS RNUC12WSHI500000I BB i5-1240P

Intel Core i5-1240P
Ratings
BrandMore from ASUS
Currently out of stock
free shipping

Product details

  • Intel® Core™ i5-1240P processor (up to 4.40 GHz), Dodeca-Core - 0 GB RAM, 0 GB SSD, USB 3.0 - Intel Iris Xe Graphics, HDMI, Thunderbolt 4 - Form factor: Mini PC, WLAN, BT, Gb LAN - without operating system.

Key specifications

Number of processor cores
12 -Core
Memory type
DDR4-RAM
Graphics card model
Iris Xe Graphics
Internal connection options
M.2 (1x), S-ATA III (1x)
USB ports
Thunderbolt 4, USB-A
Network connections
RJ45 (1x)
Video connections
DisplayPort, HDMI (2x)

General information

Item number
42891172
Manufacturer
ASUS
Category
Barebones
Manufacturer no.
90AR00E1-M00060
Release date
16.4.2024
Sales rank in Category Barebones
37 of 694
External links
Manufacturer's site (de)
May include power adapter
No

Barebone properties

Design
Small Form

Processor

Processor type
Intel Core i5-1240P
Clock frequency
1.70 GHz
Number of processors
1x
Number of processor cores
12 -Core
Number of threads
16
Socket
BGA 1744
Max. turbo clock rate
4.40 GHz
Processor properties
Onboard processor

Memory

Memory type
DDR4-RAM
Memory form factor
SO-DIMM
Memory chip compatibility
DDR4-3200
Memory Slots available
0
Max. memory slots
2
Max. RAM
64 GB
Memory voltage
1.20 V

Graphics card properties

Graphics card model
Iris Xe Graphics
Max. connected monitors
4x

Internal connections

Internal connection options
M.2 (1x), S-ATA III (1x)
Data storage controller
Intel I225-V
"Number of 2.5"" drive slots"
1x

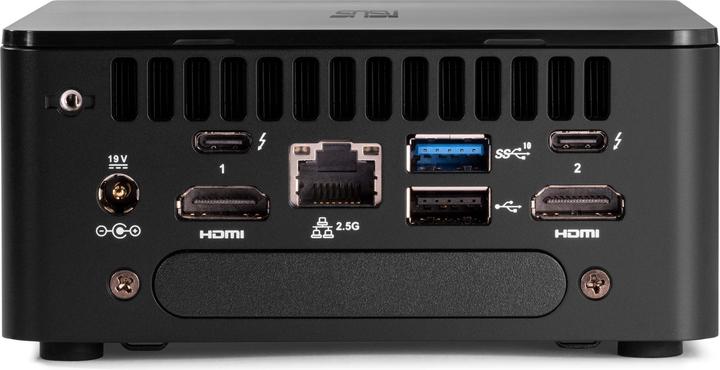

External connections

USB ports
Thunderbolt 4, USB-A
Exact USB ports
Thunderbolt 4 (2x), USB-A 2.0 (1x), USB-A 3.1 Gen 2 (3x)
Data ports
PS/2 (1x)

Network

Network connections
RJ45 (1x)
Max. port speed
2500 Mbit/s

Wireless transmission

Connectivity
Ethernet, WLAN
Wi-Fi standard
Wi-Fi 6E / 802.11az
Bluetooth version
5.2

Video connections

Video connections
DisplayPort, HDMI (2x)

Audio connections

Audio outputs
3.5mm headphones

Origin

Country of origin
China

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

CO₂ emissions
179.71 kg
Climate contribution
CHF 4.27

Scope of delivery

Scope of delivery
Power cable, Power supply, VESA Mount Kit

Product dimensions

Weight
1453 g
Width
117 mm
Length
200 mm
Height
54 mm

Package dimensions

Length
20.20 cm
Width
17.20 cm
Height
12.30 cm
Weight
1.57 kg

30-day right of return
24 Months Warranty (Bring-in)
